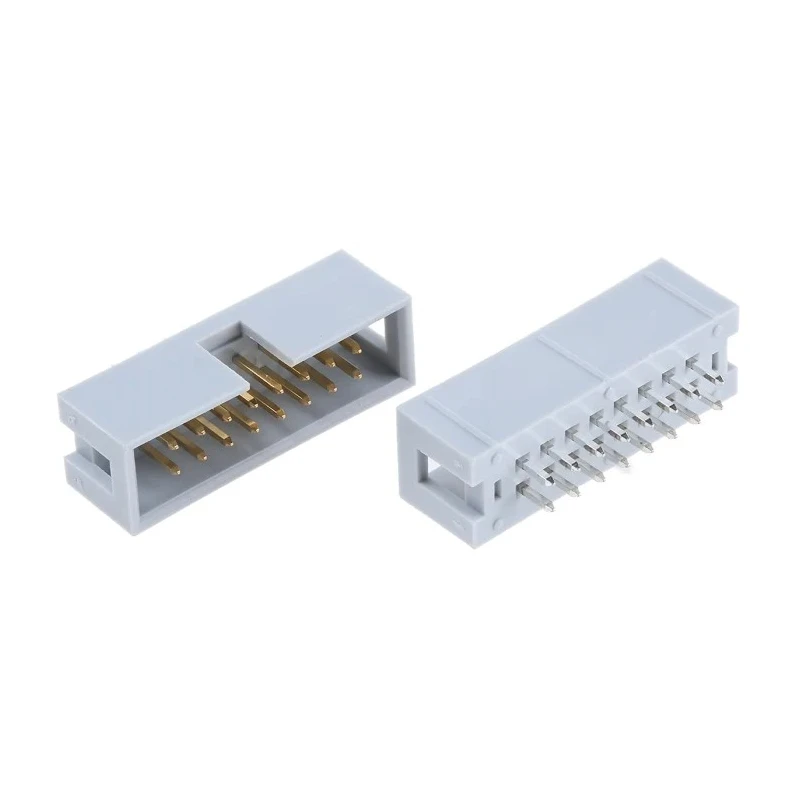

ASSMANN WSW AWHW Series Straight Through Hole PCB Header, 16 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded AWHW 16G-0202-T

Free Delivery in India | Lowest Global Shipping Charges

ASSMANN WSW AWHW Series Straight Through Hole PCB Header, 16 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded AWHW 16G-0202-T

Name: ASSMANN WSW AWHW Series Straight Through Hole PCB Header, 16 Contact(s), 2.54 mm Pitch, 2 Row, Shrouded AWHW 16G-0202-T
Brand: ASSMANN WSW
SKU: 208307
Price: 0.68 USD
Availability: InStock



Category PCB Header Brand ASSMANN WSW Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	ASSMANN WSW
Orientation	Straight
Current	3A
Model	AWHW 16G-0202-T
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Brass
Series	AWHW
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Gold, Nickel
Number of Contacts	16
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Features 16 male contacts ensuring stable electrical conduction.
Utilizes a 2.54 mm pitch suitable for precision PCB layouts.
Constructed with durable polybutylene terephthalate housing material.
Supports a current rating of 3A and voltage rating of 250V.
Shrouded two-row configuration enhances connector safety and durability.
Contact material is brass with gold and nickel plating for corrosion resistance.
Designed for through-hole mounting with solder termination.
Operates reliably between -40°C and 105°C temperatures.

Product Description

ASSMANN WSW AWHW 16G-0202-T Straight Through Hole PCB Header is designed for secure wire-to-board connections in electronic assemblies and industrial applications. With its 16 male contacts arranged in two rows, this connector offers a robust interface for PCB mounting with a 2.54 mm pitch. The shrouded design improves mechanical protection and reduces risk of accidental damage during installation or operation.

Manufactured with polybutylene terephthalate housing and brass contacts plated in gold and nickel, this PCB header provides excellent electrical performance and durability. It supports a current of 3A and voltage rating up to 250V, suitable for a wide range of electronic circuits. Through-hole solder termination guarantees strong mechanical fixing to circuit boards.

The product is rated for operation from -40°C to 105°C, making it suitable for demanding industrial and commercial environments including manufacturing lines, laboratory equipment, and control systems. Compliance with RoHS standards assures it meets environmental and safety regulations.

This PCB Header is an ideal choice for assembling reliable electronic connections in industrial, automotive, consumer electronics, and telecommunications systems. Its precise pitch and robust construction ensure long-lasting performance in complex electronic systems.

Features 16 male contacts ensuring stable electrical conduction. Utilizes a 2.54 mm pitch suitable for precision PCB layouts. Constructed with durable polybutylene terephthalate housing material. Supports a current rating of 3A and voltage rating of 250V.

Shrouded two-row configuration enhances connector safety and durability. Contact material is brass with gold and nickel plating for corrosion resistance. Designed for through-hole mounting with solder termination. Operates reliably between -40°C and 105°C temperatures.

RoHS compliant and manufactured in China, ensuring environmental standards compliance. Explore more electronic connectors and precise PCB components at EnvMart to optimize your design and manufacturing process.
