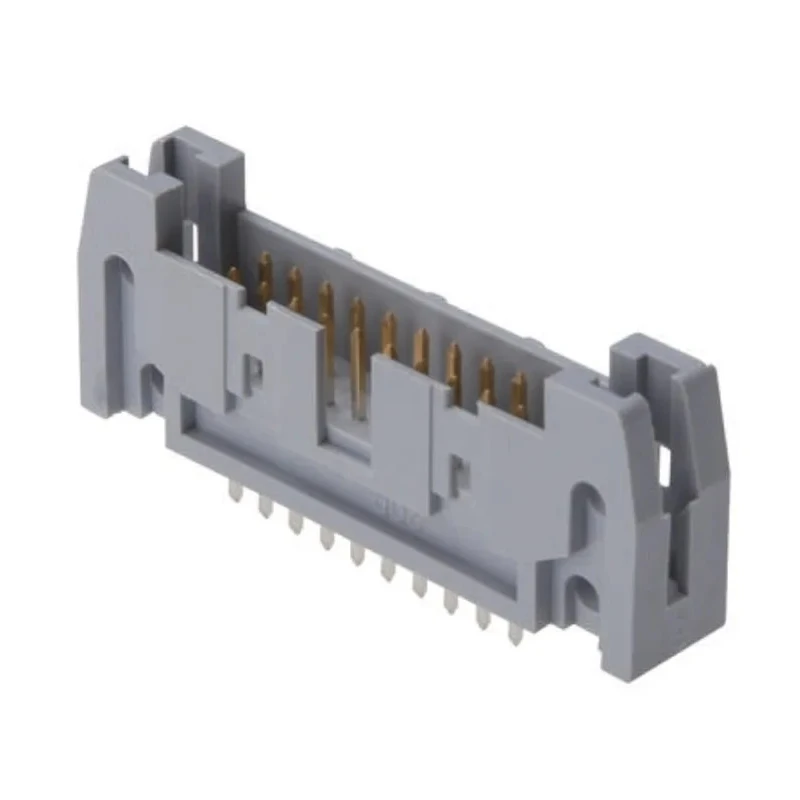

ASSMANN WSW AWH Series Straight Through Hole PCB Header 26 Contacts 2.54 mm Pitch 2 Row Shrouded AWH 26G-0202-T
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 1000V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 3A |
| Model | AWH 26G-0202-T |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | AWH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Rated for 3A current and 1000V voltage for industrial applications.
- Constructed with gold-plated copper alloy contacts for durability and conductivity.
- Polybutylene terephthalate housing material ensures mechanical stability and insulation.
- Through-hole mount type with male contact gender provides secure PCB integration.
- Operating temperature ranges from -40°C to 105°C for use in varied environments.
- Compliant with RoHS standards, ensuring environmentally friendly manufacturing.
- Solder termination type facilitates reliable electrical and mechanical connection.
Product Description
ASSMANN WSW AWH 26G-0202-T Straight Through Hole PCB Header is designed for secure wire-to-board connections in electronic assemblies. The header features 26 male contacts arranged in two rows with a precise 2.54 mm pitch, providing robust electrical performance suitable for a wide range of industrial and commercial electronic applications.
This PCB header supports a continuous current of 3 amperes and a maximum voltage of 1000 volts, ensuring reliable operation under demanding conditions. The contacts are made from copper alloy with gold plating, offering excellent conductivity and corrosion resistance.
The housing is molded from polybutylene terephthalate, a thermoplastic material known for its durability and electrical insulation properties. It features a shrouded design that protects the contacts and aids in proper connector mating. The through-hole mounting type enables strong mechanical fixing on printed circuit boards via soldering.
The component operates effectively in a temperature range from minus 40 degrees Celsius to 105 degrees Celsius, making it suitable for harsh environments including industrial machinery, automation systems, telecommunications, and instrumentation.
Rated for 3A current and 1000V voltage for electrical safety and performance. Gold-plated copper alloy contacts for excellent conductivity and corrosion resistance. Durable polybutylene terephthalate housing with shrouded design for contact protection.
Two-row arrangement with 26 male contacts and 2.54 mm pitch spacing ensures compatibility with standard PCB layouts. RoHS compliant, meeting environmental and safety standards. Through-hole solder termination provides mechanical stability and secure electrical connection.
Wide operating temperature range from -40°C to 105°C for reliable performance in various industrial conditions.
This PCB header is ideal for use in industrial electronics, automation equipment, communication devices, and laboratory instrumentation. Its robust construction and electrical ratings make it suitable for applications requiring dependable and precise connectivity.
Explore more PCB Headers and electronic connectors in the Electronics & Electricals category on EnvMart for comprehensive solutions to your circuit design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB header is 1000 volts, ensuring reliable operation in various applications.
This model is rated for a continuous current of 3 amperes, suitable for industrial applications.
The housing is constructed from polybutylene terephthalate, which provides mechanical stability and electrical insulation.
This PCB header features 26 male contacts arranged in two rows, with a pitch of 2.54 mm.
It operates effectively within a temperature range of -40°C to 105°C, making it suitable for harsh environments.
This model utilizes a solder termination type, which facilitates a reliable electrical and mechanical connection.
Yes, it is compliant with RoHS standards, ensuring environmentally friendly manufacturing practices.
The orientation of this PCB header is straight, designed for through-hole mounting.
It supports a wire-to-board connector system, ideal for secure wire connections in electronic assemblies.
The contacts are made from gold-plated copper alloy, which enhances conductivity and corrosion resistance.
The shrouded design of this PCB header protects the contacts and aids in proper connector mating.
It is mounted using a through-hole method, which provides strong mechanical fixing via soldering.
