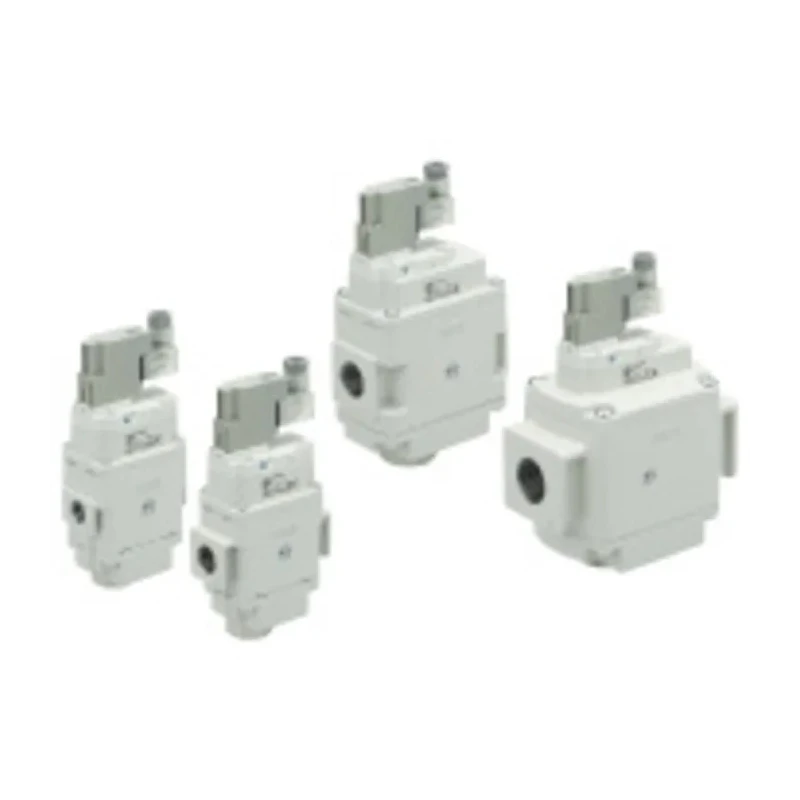

SMC Pneumatic Solenoid Start-Up Valve G AV Series 24V dc, Threaded Port 3/4 in AV5000-F06-5DZB-A

SMC AV5000-F06-5DZB-A pneumatic solenoid start-up valve operates at 24V dc, featuring a threaded 3/4 inch port size and a G connection thread standard. Designed as a stand-alone mount, this valve enables low-speed air supply to gradually raise initial air system pressure and allows quick exhaust by cutting off air supply effectively. The valve's die cast aluminium body and nitrile rubber (NBR) seals ensure durability and reliable sealing under industrial conditions.

It achieves a maximum operating pressure of 1 MPa and supports a maximum flow rate of 2088 L/min, suitable for diverse pneumatic systems in industrial automation, manufacturing, HVAC, and fluid power applications. The valve functions efficiently within an operating temperature range from 0°C to 50°C and consumes low power at 0.35 W, contributing to energy savings by eliminating airflow when the main valve is switched.

The AV5000-F06-5DZB-A model incorporates an improved flow rate characteristic up to 2.3 times compared to previous versions, optimizing system performance with a C value of 9.2 dm³/(s·bar). It features a 3-position valve design with female port gender and a DIN connector for electrical connection, enhancing system compatibility and ease of installation.

This valve carries CE compliance and originates from Japan, attesting to quality manufacturing standards. Its compact size, with dimensions of 178 mm length, 74 mm width, and 128 mm height, allows for installation in tight spaces within pneumatic control panels or machinery.

Ideal for industrial pneumatic control applications, this solenoid start-up valve is integral in managing air pressure transitions, protecting pneumatic equipment from abrupt pressure changes, and ensuring smooth system startups. It is widely used across industrial automation, fluid power, HVAC, and manufacturing sectors requiring precise pneumatic valve control.

Threaded port type with 3/4 inch size and G connection thread standard. Single solenoid type with stand-alone mount and DIN electrical connector. Die cast aluminium body material offering durability. Maximum operating pressure of 1 MPa and maximum flow rate of 2088 L/min.

Operates between 0°C to 50°C with nitrile rubber (NBR) seal for reliability. Power consumption of 0.35 W with enhanced energy-saving design. Compact dimensions of 178mm length, 74mm width, and 128mm height. Improved flow rate characteristics up to 2.3 times with C value 9.2 dm³/(s·bar).

Female port gender with 3-position valve arrangement. Compliant with CE standards and manufactured origin Japan. Explore a wide range of Pneumatic Solenoid Valves, pneumatic equipment, and industrial valves at EnvMart for comprehensive pneumatic system solutions.
