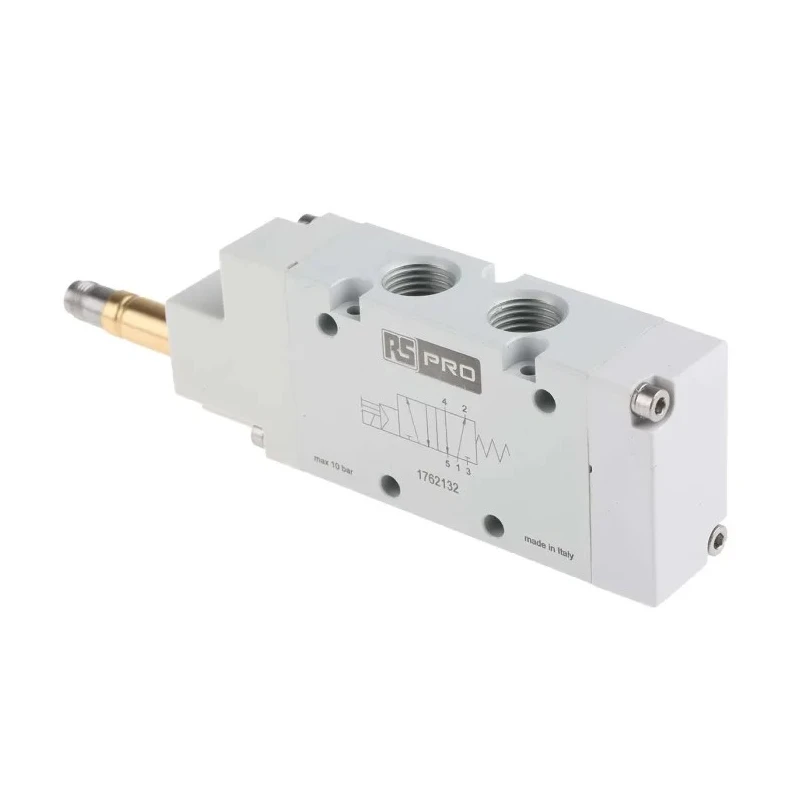

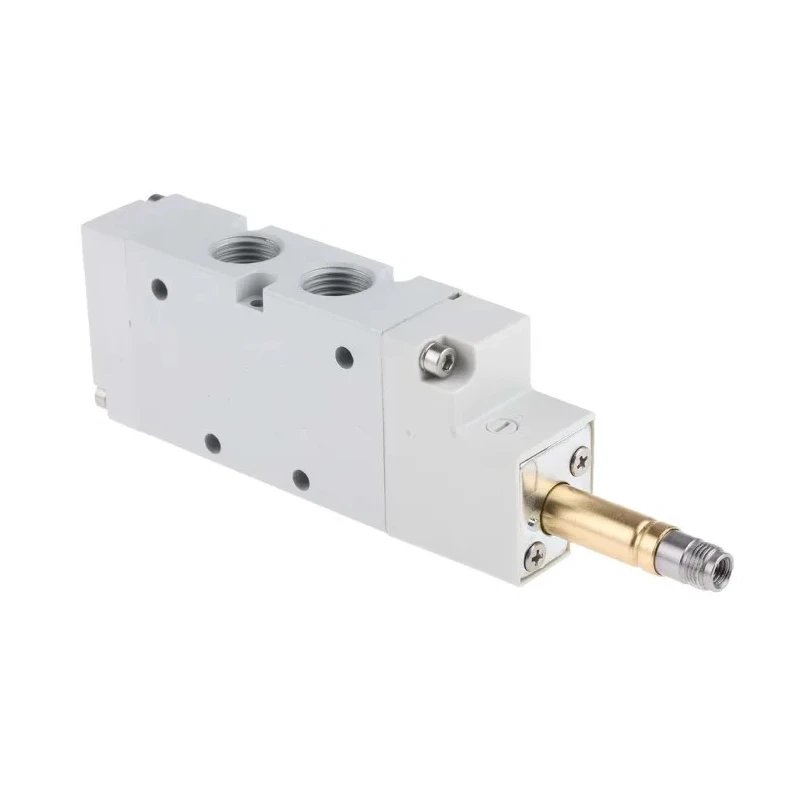

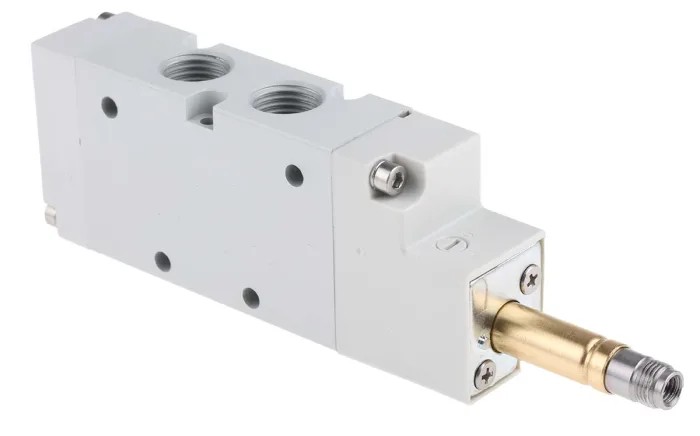

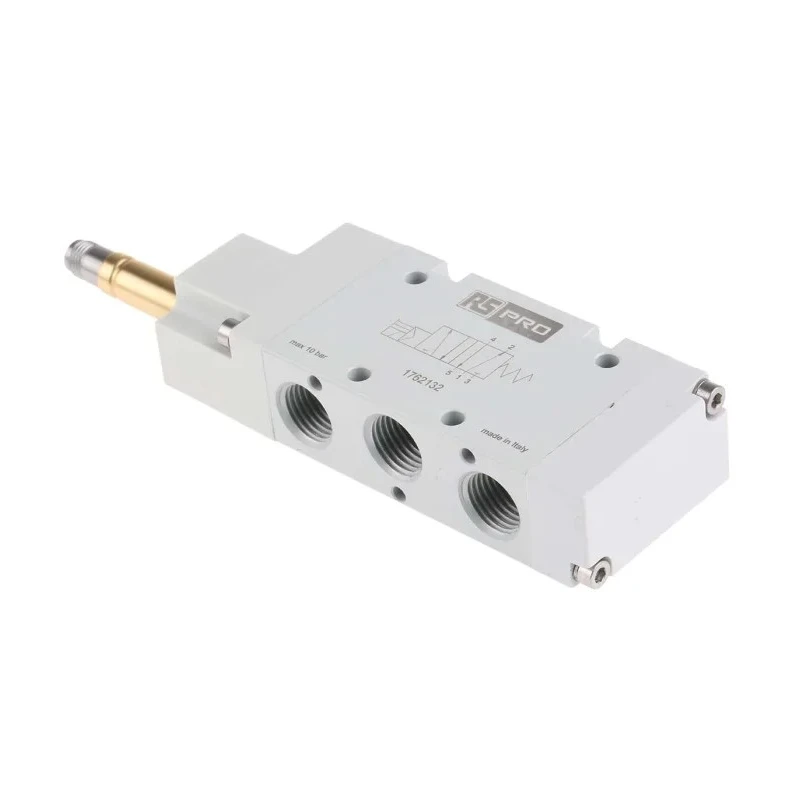

RS PRO Pneumatic Solenoid Valve 5/2 Monostable Solenoid, G 01V Series, 1/4 in Port Size, Aluminium Body 176-2132

RS PRO 176-2132 Pneumatic Solenoid Valve, part of the G 01V Series, is a robust and highly efficient component engineered for pneumatic control in industrial settings. This valve is designed with a monostable solenoid actuation, allowing it to offer precise switching between two positions. The spring return mechanism maintains the home position until the solenoid is energized, ensuring reliable operation in automated pneumatic lines.

Featuring five ports and a 5/2 configuration, this solenoid valve supports complex control of double-acting cylinders, offering versatility in circuit design for manufacturing, processing, and automation applications. The aluminium body provides strength while remaining lightweight, ideal for easy installation and base or manifold mounting in tight equipment spaces. The female G 1/4 inch port threading ensures compatibility with standard pneumatic fittings, simplifying integration into existing systems.

Built for demanding environments, the valve can withstand a maximum operating pressure of 10 bar and achieves a high airflow rate up to 1,200 NL/min, meeting the needs of fast-acting industrial processes. Its working temperature range from -10°C to 60°C permits usage in both chilled and heated applications, such as textile production, food processing, and automotive manufacturing. The internal seals are made of nitrile rubber (NBR), offering both airtight performance and resistance to wear and chemicals.

Electrical connections use a plug socket design, supporting straightforward installation and secure operation. The valve consumes only 2W of power, making it energy-efficient for continuous operation. With only one switching position and a monostable function, downtime is minimized while control accuracy is maximized. Hazardous area certification (ATEX) and compliance with RoHS and REACH standards assure operators of safety and regulatory adherence.

Overall, the RS PRO 176-2132 Pneumatic Solenoid Valve is well suited for industrial fluid power systems, laboratory automation, textile machinery, food and beverage processing, and manufacturing lines - especially where compact, reliable, and high-throughput valve control is needed.

Monostable solenoid actuation for precise pneumatic control. G 01V Series with five ports and two positions enables flexible circuit design. Aluminium body and G 1/4 inch female port threading for durability and universal fit.

High flow rate of 1,200 NL/min and maximum pressure of 10 bar support fast operations. Wide operating temperature range from -10°C to 60°C covers diverse applications. Nitrile rubber (NBR) seals deliver long-lasting, airtight performance.

ATEX hazardous area certification and compliance with RoHS and REACH standards. Plug socket electrical connection and energy-saving 2W solenoid design. Explore more pneumatic valves and industrial automation components from RS PRO and browse EnvMart’s category for advanced fluid power solutions.
