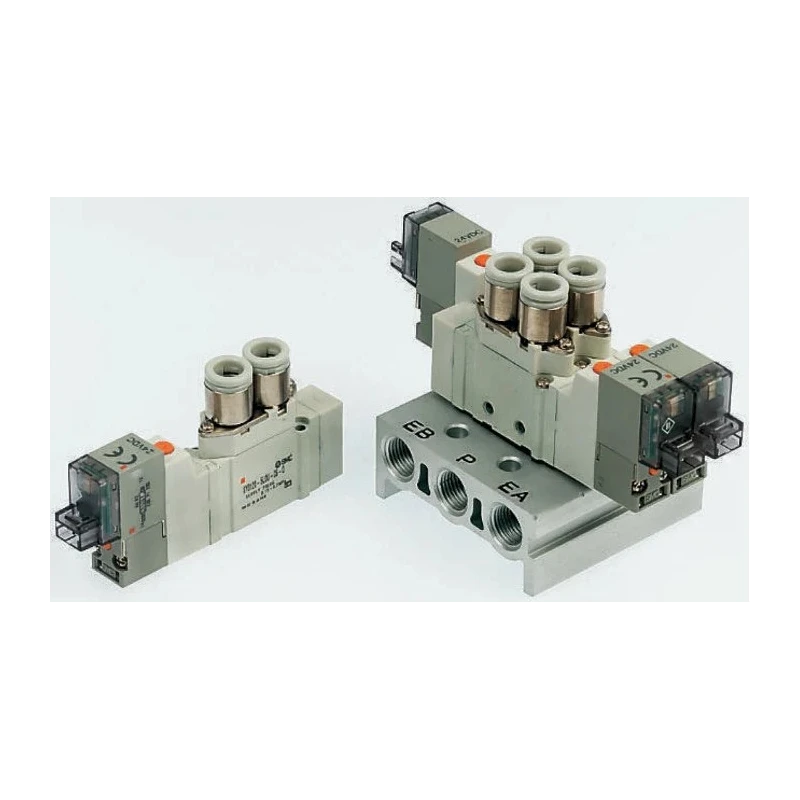

SMC Pneumatic Solenoid Valve 5/2 Solenoid G SY5000 Series 24V DC Die Cast Aluminium One-Touch Fitting
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 24V dc |
| Brand | SMC |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 0.7 Mpa |
| Height | 40.4mm |
| Length | 107.2mm |
| Model | SY5000 |
| Width | 11.6mm |
| Mount Type | Stand Alone |
| Series | SY5000 |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 50°C |
| Port Type | One-Touch Fitting |
| Number of Positions | 2 |
| Seal Material | Rubber, Hydrogenated Nitrile Rubber, Flouro Rubber |
| Minimum Operating Temperature | -10°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 500.5NL/min |
| Standards/Approvals | RoHS |
| Connection Thread Standard | G |
| Mount Pattern | DIN |
| Minimum Pilot Pressure | 0.15MPa |
| Valve Function | 5/2 |
| Solenoid Power Consumption | 0.4W |
Key Features
- Equipped with a 5/2 solenoid function for versatile pneumatic circuit operation.
- Operates on 24V DC for efficient and safe automation integration.
- One-Touch Fitting ensures quick installation and secure connection.
- Constructed from durable die cast aluminium for robust service in demanding environments.
- Rubber, hydrogenated nitrile rubber, and flouro rubber seals provide enhanced leak resistance.
- Maximum operating pressure up to 0.7 MPa for high-performance pneumatic systems.
- Low solenoid power consumption of 0.4W supports direct PLC control.
- Integrated indicator light and surge voltage suppressor for improved operational reliability.
Product Description
The SMC SY5220-5LOU-C6F-Q Pneumatic Solenoid Valve is a precision-engineered solution designed for demanding fluid power applications within industrial, automation, and manufacturing settings. As part of the renowned SY5000 Series, this valve features a 5/2 solenoid G configuration, delivering flexible directional control for pneumatic circuits and machinery.
Powered by a reliable 24V DC solenoid actuator, the SY5220-5LOU-C6F-Q enables safe, efficient integration into automation systems and PLC-managed processes. Its die cast aluminium body ensures strength and durability, while the One-Touch Fitting connection facilitates fast, secure installation.
The valve employs high-quality rubber, hydrogenated nitrile rubber, and flouro rubber seals, ensuring leak resistance and long-term service life, even under fluctuating pressures and temperatures. With a maximum operating pressure of 0.7 MPa and a minimum pilot pressure of 0.15 MPa, the design addresses the needs of modern pneumatic networks and equipment.
Operational efficiency is further advanced by the low solenoid power consumption of 0.4 W, reducing energy demands and enabling direct PLC control. Supplied features include an indicator light and surge voltage suppressor, providing real-time status visibility and electrical protection during operation. The valve supports temperatures from -10°C to 50°C, making it suitable for a range of industrial environments.
The compact DIN mount pattern (length 107.2 mm, height 40.4 mm, width 11.6 mm) allows for easy incorporation into machinery and manifold systems. With a maximum flow rate of 500.5 NL/min and a 5-port, 2-position structure, it supports complex pneumatic logic and fast cycling operations. Non-locking manual override offers maintenance flexibility and manual control when needed.
Designed for standalone use, the valve is RoHS compliant and manufactured in Japan, reflecting high standards in performance and reliability. Typical applications include industrial automation, manufacturing lines, pneumatic equipment, conveyor controls, robotics, and laboratory systems where precise fluid handling is required.
Discover more Pneumatic Solenoid Valves and explore SMC’s range for advanced industrial fluid control solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 0.7 MPa.
This solenoid valve operates on a voltage of 24V DC.
The body of the valve is made from die cast aluminium, and it features seals made from rubber, hydrogenated nitrile rubber, and flouro rubber.
The maximum flow rate is 500.5 NL/min.
The operating temperature range is from -10°C to 50°C.
It features a DIN mount pattern for easy incorporation into machinery and manifold systems.
The solenoid power consumption is 0.4 W.
This model uses a One-Touch Fitting for quick installation and secure connection.
The actuation type is solenoid, specifically a 5/2 solenoid configuration.
The minimum pilot pressure is 0.15 MPa.
Yes, this valve is RoHS compliant.
Typical applications include industrial automation, manufacturing lines, pneumatic equipment, conveyor controls, robotics, and laboratory systems.
