Crouzet Pneumatic Solenoid Valve Pilot/Spring 81 Series 4 mm Push-in, DIN Rail, 4 Ports, 8 bar, Model 81513200

Free Delivery in India | Lowest Global Shipping Charges

Crouzet Pneumatic Solenoid Valve Pilot/Spring 81 Series 4 mm Push-in, DIN Rail, 4 Ports, 8 bar, Model 81513200

Name: Crouzet Pneumatic Solenoid Valve Pilot/Spring 81 Series 4 mm Push-in, DIN Rail, 4 Ports, 8 bar, Model 81513200
Brand: CROUZET
SKU: 87208
Price: 63.16 USD
Availability: InStock



Category Pneumatic Solenoid Valve Brand CROUZET Condition New

Specifications

Country of Origin	India
Brand	Crouzet
Maximum Operating Pressure	8 bar
Model	81513200
Mount Type	DIN Rail
Series	81
Number Of Ports	4
Maximum Operating Temperature	50°C
Port Type	Push-in
Port Size	4 mm
Minimum Operating Temperature	-10°C
Actuation Type	Pilot/Spring
Maximum Flow Rate	300NL/min
Standards/Approvals	RoHS
Minimum Pilot Pressure	3bar

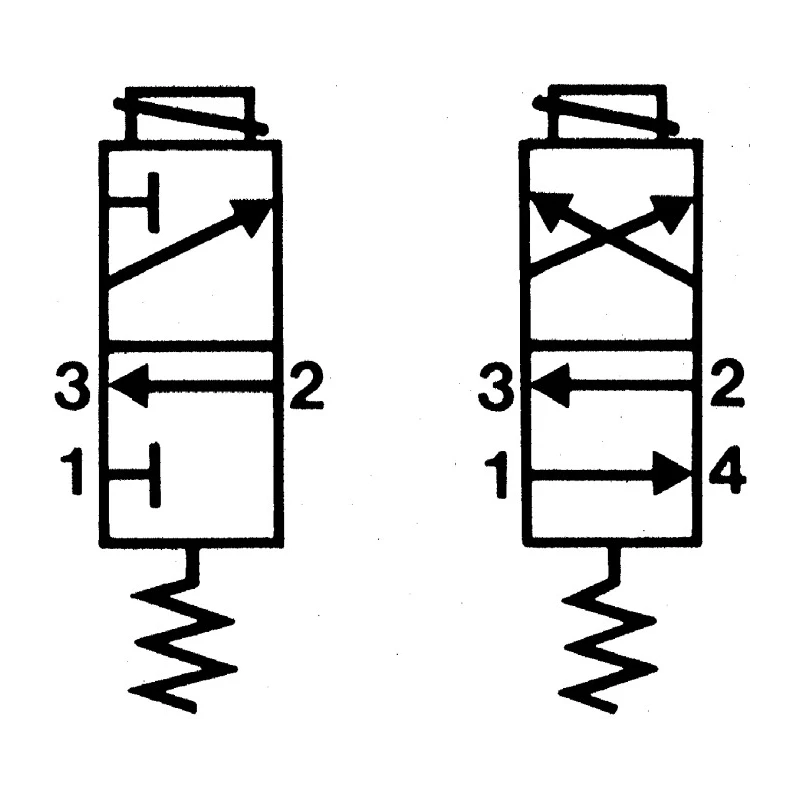

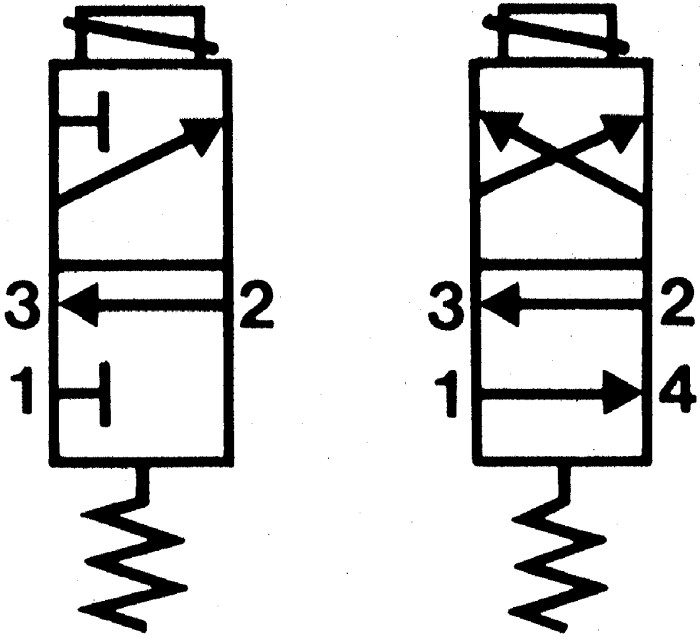

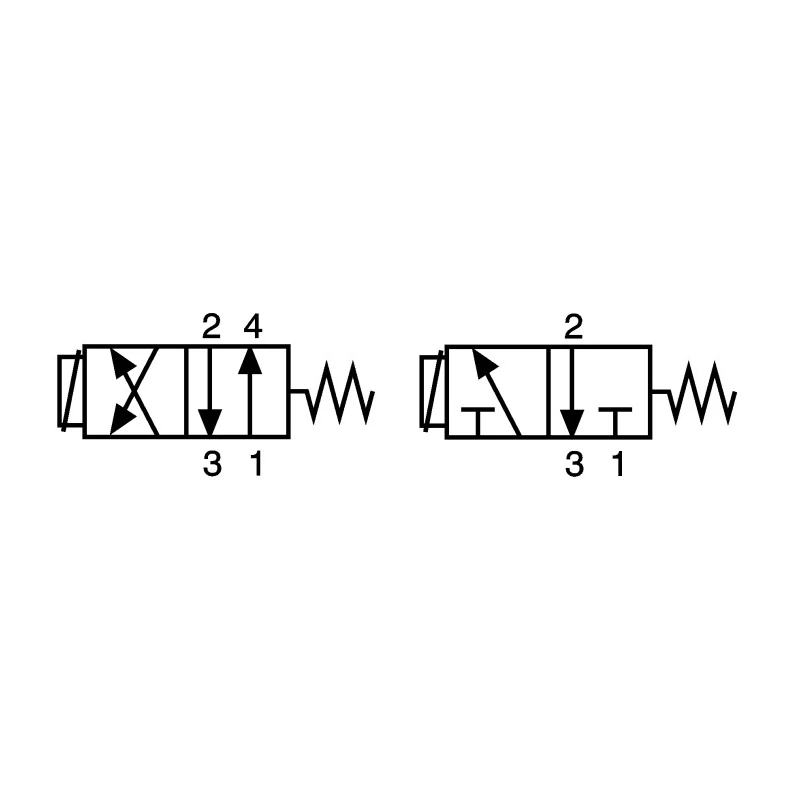

Valve Function	3/2 Way, 4/2 Way
Crouzet 4/2 Pneumatic Control Valve - Pilot/Spring 81 SeriesBrand	Crouzet

Key Features

Pilot/Spring actuated solenoid valve designed for 81 Series pneumatic systems.
Features push-in 4 mm ports, facilitating rapid installation and easy maintenance.
Mounts on DIN rail, suitable for compact panel integration and industrial automation.
Supports a 4-port configuration, with valve function for both 3/2 way and 4/2 way operation.
Maximum operating pressure up to 8 bar and minimum pilot pressure of 3 bar.
Rated for operating temperatures from -10°C to 50°C, enabling use in diverse environments.
Supports a flow rate up to 300 NL/min for compressed air or inert gas, oil-free operation.
Compliance with RoHS standards; IP65 rated construction ensures protection against dust and water jets.

Product Description

The Crouzet 81513200 Pneumatic Solenoid Valve is a robust pilot/spring actuated module from the 81 Series, engineered to interface electrical/electronic control systems with pneumatic drives. Designed for industrial automation, this solenoid valve features four push-in 4 mm ports, providing flexible pneumatic connections and swift integration into existing setups. Its DIN rail mount allows for convenient panel installation and space-saving within equipment cabinets.

Supporting both 3/2 way and 4/2 way valve functions, the Crouzet 81513200 offers versatile control opportunities in pneumatic applications requiring actuation or switching for compressed air or inert gas. With a maximum operating pressure of 8 bar and a minimum pilot pressure of 3 bar, the valve reliably maintains performance under typical factory or laboratory compressed-air systems.

Performance is assured across a wide temperature range, from -10°C to 50°C. This enables operation in challenging environments, including production lines, laboratories, and HVAC facilities. The maximum flow rate of 300 NL/min provides substantial throughput for pneumatic operations, and its oil-free, filtered air (up to 50 μm) design supports lower maintenance and longer service intervals.

The solenoid valve’s IP65 rating ensures protection against dust ingress and water jets, suitable for tough industrial settings. Compliance with RoHS standards confirms its environmental responsibility. The product is engineered for rapid installation and maintenance; programmable controller compatibility reduces setup time and increases operational flexibility for manufacturing and process control systems.

Versatile mounting and port configuration support uses in pneumatic control panels, automation lines, machine tool installations, and laboratory setups demanding reliable, responsive pneumatic switching. With Crouzet’s established reliability and precise actuation, the 81513200 model is a preferred solution for engineers and system integrators. Browse more pneumatic valves and control solutions in the EnvMart Pneumatic Solenoid Valve and Automation categories.
