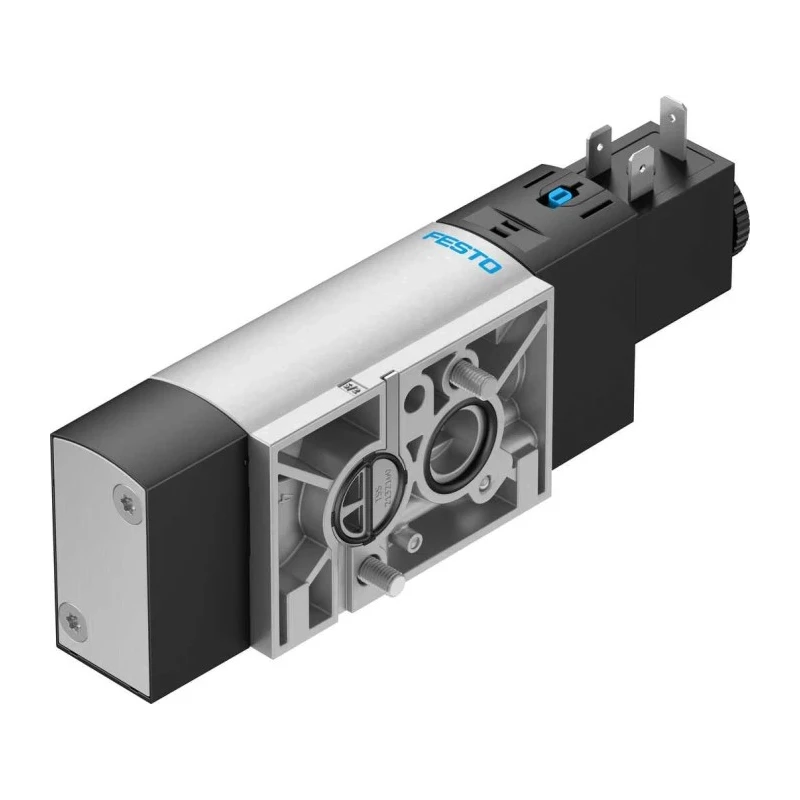

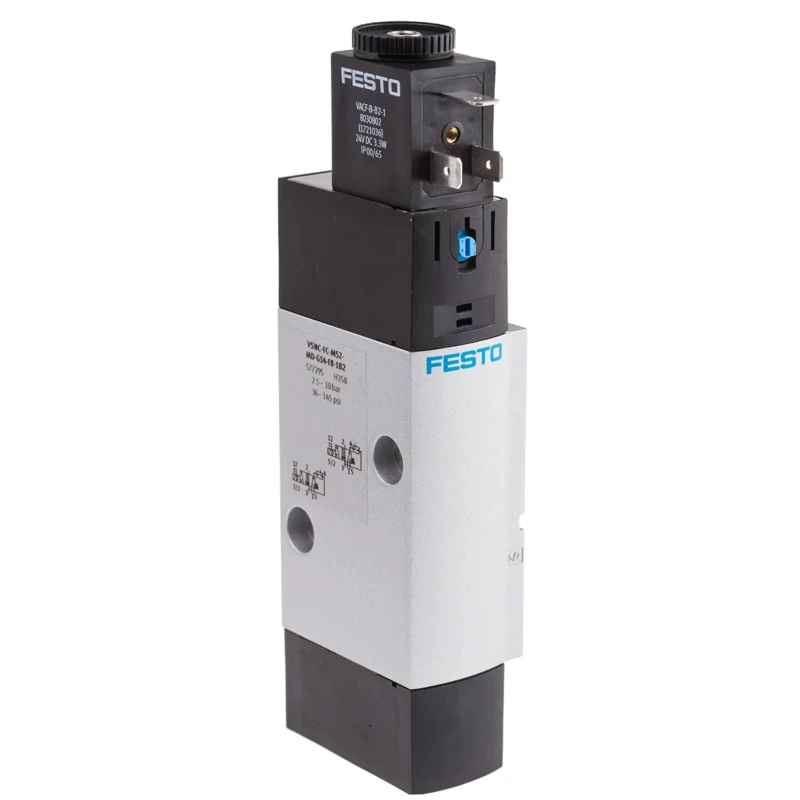

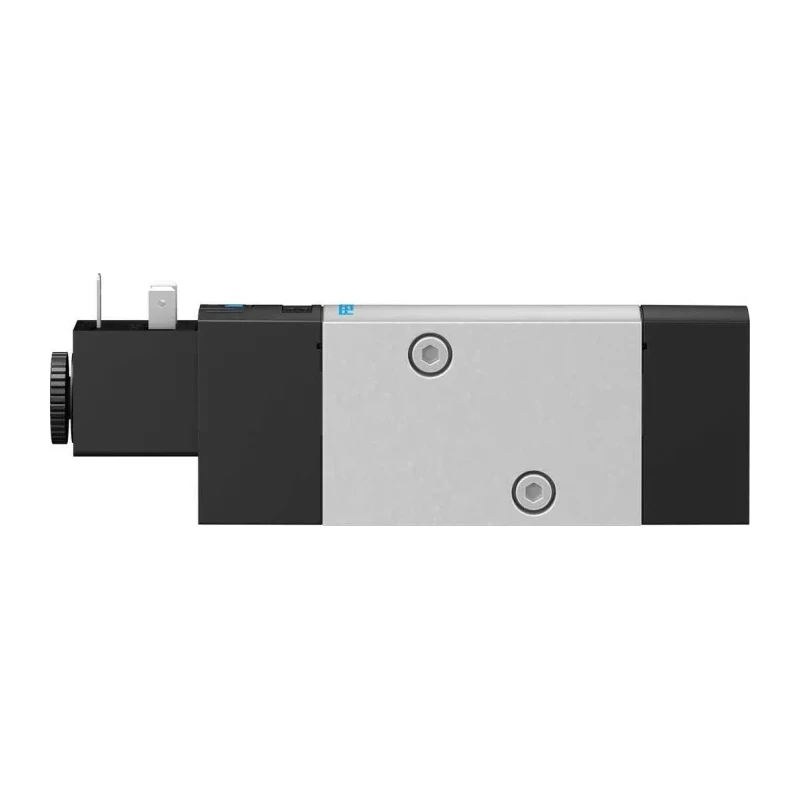

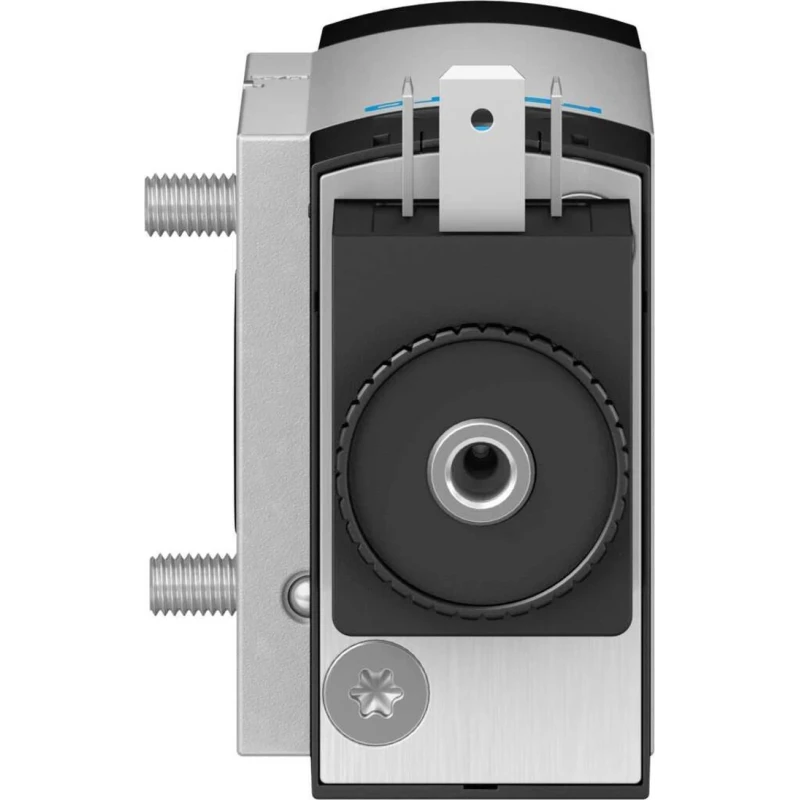

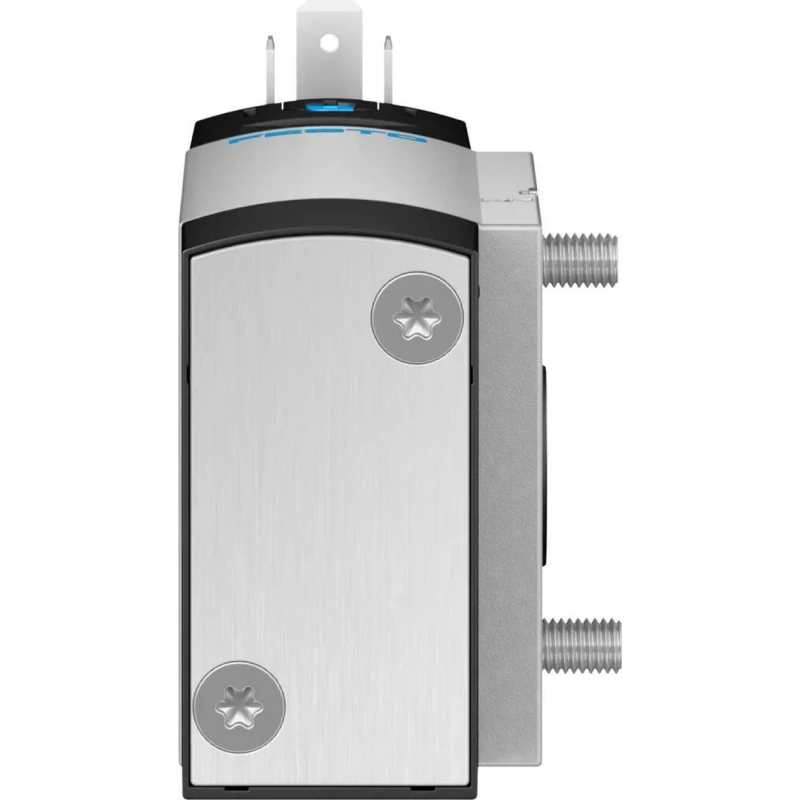

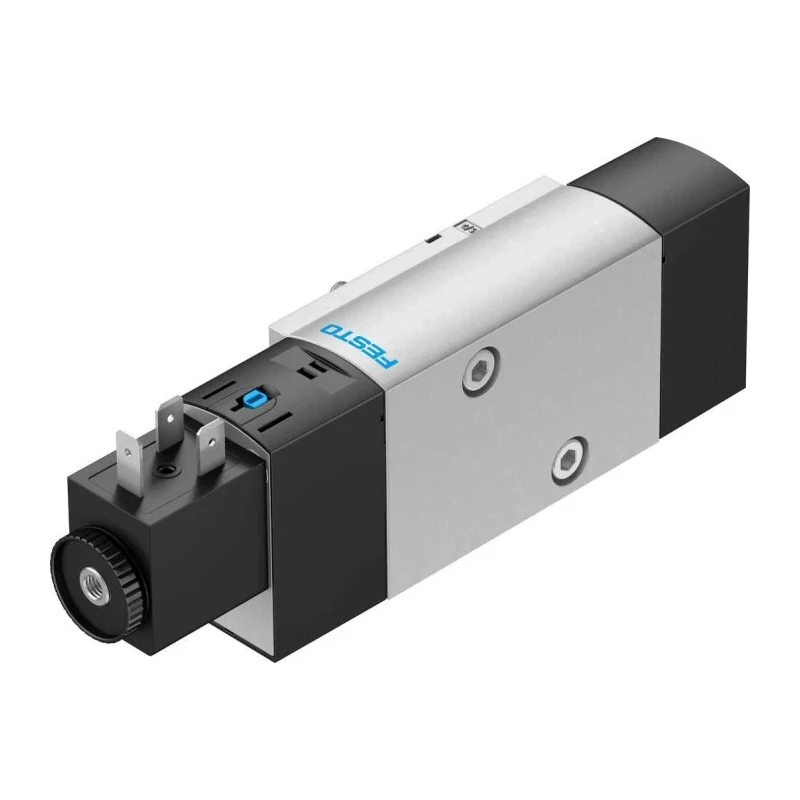

Festo Pneumatic Solenoid Valve 5/2 Solenoid/Spring G VSNC Series 24V DC Aluminium Alloy VSNC-FC-M52-MD-G14-F8-1B2
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 24V dc |
| Brand | Festo |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 10 bar |
| Model | VSNC-FC-M52-MD-G14-F8-1B2 |
| Width | 32mm |
| Mount Type | Through Hole |
| Series | VSNC |
| Number Of Ports | 5 |
| Maximum Operating Temperature | 80°C |
| Port Type | Threaded |
| Number of Positions | 2 |
| Port Size | 1/4 in |
| Seal Material | Nitrile Rubber (NBR) |
| Actuation Type | Solenoid/Spring |
| Maximum Flow Rate | 1250L/min |
| Standards/Approvals | RoHS, cULus |
| Connection Thread Standard | G |
| Minimum Pilot Pressure | 2.5bar |
| Valve Function | 5/2 |
| Electrical Connection Type | Plug Connector |
| Solenoid Type | Single |
| Port Gender | Female |
| Solenoid Power Consumption | 3.3W |
| Festo Pneumatic Solenoid Valve - 5/2 Solenoid/Spring G VSNC Series 24V dcBrand | Festo |
Key Features
- Suitable for use with single and double linear actuators.
- Features pilot valve and solenoid spring for swift reset and reliable operation.
- Operates at 24V DC, with a maximum operating pressure of 10 bar.
- Compact aluminium construction ensures corrosion resistance and durability.
- Standard G 1/4 inch threaded port for universal compatibility.
- Supports maximum flow rate of 1250 litres per minute.
- Wide operating temperature range from -20°C to 80°C for challenging environments.
- Plug connector electrical interface for easy installation.
Product Description
Festo VSNC-FC-M52-MD-G14-F8-1B2 Pneumatic Solenoid Valve is a high-performance component engineered for precise regulation of pneumatic cylinders and machinery requiring swift response times and steadied liquid media flow. Part of the VSNC series, this valve allows effective control of both single and double linear actuators, making it ideal for industrial-grade automation environments.
The valve features a robust aluminium alloy body with corrosion-resistant properties for long-term reliability. Its 5/2 configuration, supported by solenoid/spring actuation and an internal pilot valve, ensures rapid switching without overflow or malfunction, aided by a built-in mechanical spring for quick reset to the original position.
The device operates using 24V DC power and accommodates up to 10 bar maximum pressure. It offers a flow capacity of up to 1250L/min, suitable for manufacturing installations, industrial pumps, packaging equipment, and pneumatic cylinders. Port size is 1/4 inch (G standard threaded), providing compatibility with common pneumatic components in industry.
Installation is simplified using a plug connector electrical interface and through-hole mount. The valve manages five ports, supporting two-way configuration with an additional exhaust valve.
With operating temperatures ranging from -20°C to 80°C, and a compact 32mm width, this product fits seamlessly into confined spaces and harsh environments. The unit incorporates a nitrile rubber (NBR) seal for reliable sealing under varied pressures.
A key feature is the pilot-powered versatility: by turning the attached valve seal 180°, users can switch the unit operation from a 3/2-way to a 5/2-way mode, enhancing adaptability in automation processes.
Designed for demanding use cases such as manufacturing installations, pneumatic pumps, and automated packaging machinery, the Festo VSNC-FC-M52-MD-G14-F8-1B2 streamlines system integration for industrial, laboratory, and commercial projects.
All components meet RoHS and cULus compliance, affirming their global operational standards. Browse more products from Festo in pneumatic valves and discover advanced solutions for industrial fluid power at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
It operates at a voltage of 24V DC.
The valve supports a maximum flow rate of 1250 litres per minute.
This model has a width of 32mm.
The solenoid valve features five ports.
The body of this valve is constructed from aluminium alloy, ensuring corrosion resistance.
It operates within a temperature range of -20°C to 80°C.
The valve features a plug connector electrical interface for easy installation.
This model utilizes solenoid/spring actuation for operation.
It meets RoHS and cULus compliance standards.
The valve incorporates a nitrile rubber (NBR) seal for reliable sealing.
By turning the attached valve seal 180°, users can switch the unit operation from a 3/2-way to a 5/2-way mode.
