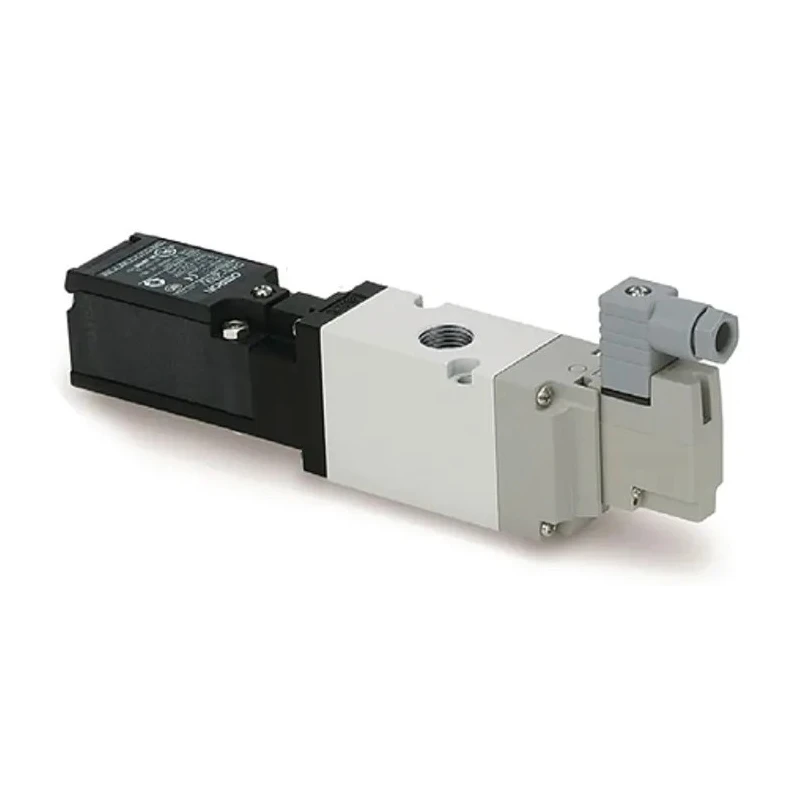

SMC Pneumatic Solenoid Valve 3/2 NC, G 3/8 Thread, Die Cast Aluminium, Single Solenoid, Body Ported, 24V VP500

Free Delivery in India | Lowest Global Shipping Charges

SMC Pneumatic Solenoid Valve 3/2 NC, G 3/8 Thread, Die Cast Aluminium, Single Solenoid, Body Ported, 24V VP500



Category Pneumatic Solenoid Valve Brand SMC Condition New

Specifications

Country of Origin	Japan
Voltage	24V
Brand	SMC
Body Material	Die Cast Aluminium
Maximum Operating Pressure	0.7 Mpa
Height	85mm
Length	129.1mm
Model	VP500
Width	32mm
Mount Type	Body Ported
Series	VP500
Number Of Ports	3
Maximum Operating Temperature	50°C
Port Type	Threaded
Number of Positions	2
Port Size	3/8 in
Seal Material	Rubber
Minimum Operating Temperature	-10°C
Actuation Type	Solenoid
Standards/Approvals	CE, RoHS
Connection Thread Standard	G
Minimum Pilot Pressure	0.2MPa
Valve Function	3/2 NC
Electrical Connection Type	DIN Connector
Solenoid Type	Single
Port Gender	Female
Solenoid Power Consumption	1.5W

Key Features

Features a 3/2 normally closed (NC) configuration for directional air flow control.
Operates at 24V solenoid voltage, compatible with standard industrial circuits.
Threaded G 3/8 female connection ensures versatility and easy integration.
Constructed from durable die-cast aluminium for enhanced corrosion resistance.
Single solenoid design with body ported mounting for flexible installation.
Suitable for ambient temperatures from -10°C to 50°C.
Supports maximum operating pressure up to 0.7 MPa and pilot pressure range of 0.2 - 0.7 MPa.
Electrical connection via DIN type connector for reliable operation.

Product Description

SMC VP542-5DZ1-03F-M-X536 Pneumatic Solenoid Valve is designed for robust and versatile control in automated pneumatic systems. With its 3/2-way normally closed (NC) function, this valve can effectively direct airflow, providing precise operation and rapid switching. The solenoid operates at 24V, making it suitable for most industrial control environments. The G 3/8 threaded female ports allow seamless integration with a wide range of pneumatic machinery and pipelines.

Features a single-solenoid actuated mechanism for reliable switching. High quality die-cast aluminium body enhances durability and resists corrosion. Rubber sealing offers tight shutoff and leak-proof performance. Operational temperature range from -10°C to 50°C ensures suitability for diverse industrial settings.

Mounting is body ported, allowing flexibility in installation on machines or panels. DIN connector enables secure electrical linkage. Supports maximum operating pressure of 0.7 MPa and pilot pressure requirements from 0.2 - 0.7 MPa, ideal for a broad variety of pneumatic applications.

This valve is used extensively in process automation, manufacturing, robotics, air control systems, and pneumatic machinery where fast and reliable actuation is essential. Industrial settings include plant and equipment automation, construction, process engineering, HVAC, and specialized laboratory environments.

VP542-5DZ1-03F-M-X536 integrates seamlessly with existing systems using the G 3/8 port threading, providing adaptability and ease of maintenance. For further browsing, discover more SMC pneumatic valves and automation solutions from the EnvMart catalogue.
