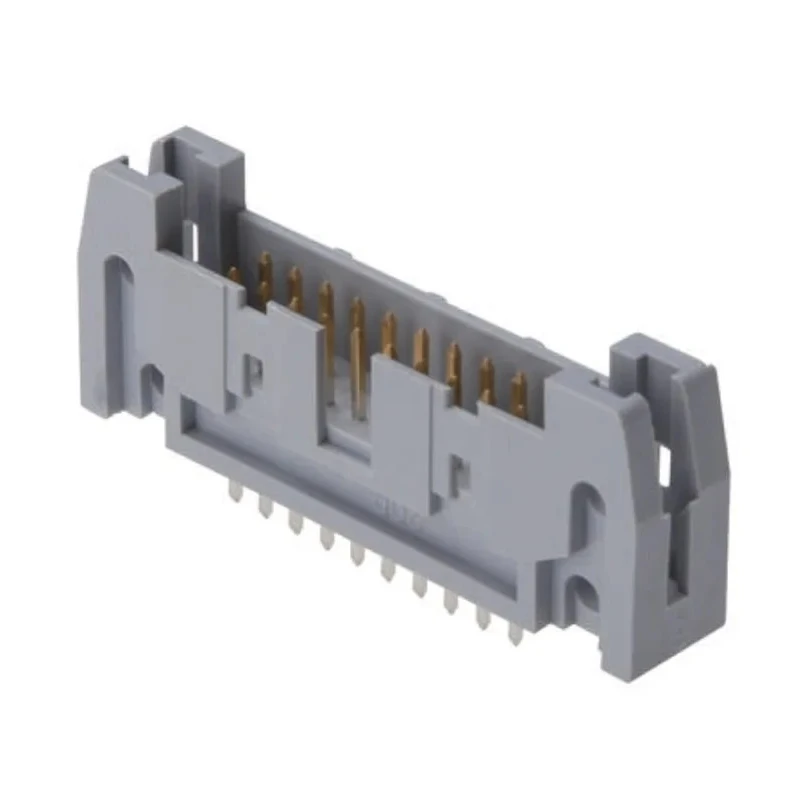

ASSMANN WSW AWH Series Straight Through Hole PCB Header 20 Contacts 2.54 mm Pitch 2 Row Shrouded AWH 20G-0202-T
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 3A |
| Model | AWH 20G-0202-T |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AWH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Standards/Approvals | RoHS |
| Contact Plating | Gold, Nickel |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- The header offers a current rating of 3A for reliable electrical performance.
- Constructed with polybutylene terephthalate housing for durability and insulation.
- Contact plating includes gold and nickel, with brass contact material ensuring excellent conductivity.
- Designed for through-hole mounting with wire-to-board connector system.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Shrouded male contact type enhances protection and secure connections.
- RoHS compliant, ensuring environmental safety and regulation adherence.
Product Description
ASSMANN WSW AWH 20G-0202-T is a high-quality straight through hole PCB header designed for electronic components applications requiring secure and reliable connections. The product includes 20 male contacts arranged in 2 rows with a 2.54 mm pitch, suitable for wire-to-board connector systems. Its shrouded design enhances connector protection and prevents accidental short circuits.
The housing is made from polybutylene terephthalate, ensuring durability and electrical insulation. Contacts are made of brass, plated with gold and nickel to assure excellent conductivity and corrosion resistance.
The header supports a current rating of 3A and a voltage rating up to 250V, meeting requirements for a wide range of electronic and electrical applications. It operates effectively in environments with temperatures from -40°C to 105°C, making it suitable for industrial, laboratory, construction, HVAC, manufacturing, and other commercial uses.
This product complies with RoHS standards, emphasizing environmental safety and regulatory compliance. The header offers a current rating of 3A for reliable electrical performance. Constructed with polybutylene terephthalate housing for durability and insulation.
Contact plating includes gold and nickel, with brass contact material ensuring excellent conductivity. Designed for through-hole mounting with wire-to-board connector system. Operates reliably in temperatures ranging from -40°C to 105°C.
Shrouded male contact type enhances protection and secure connections. Voltage rating of 250V supports diverse electronic applications. RoHS compliant, ensuring environmental safety and regulation adherence.
This PCB header is essential in electronic manufacturing and prototyping environments, offering durability, precise contact alignment, and secure wire-to-board connectivity. Explore the Electronics & Electricals category on EnvMart for additional connectors and related components from trusted brands like ASSMANN WSW.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The ASSMANN WSW AWH 20G-0202-T PCB header has a current rating of 3A.
This model supports a voltage rating of up to 250V.
The pitch size of the contacts is 2.54 mm.
It is designed for through-hole mounting.
The housing is made from polybutylene terephthalate, and the contacts are brass plated with gold and nickel.
It operates effectively in temperatures ranging from -40°C to 105°C.
This header features 20 male contacts arranged in 2 rows.
Yes, it complies with RoHS standards, ensuring environmental safety and regulatory adherence.
It utilizes a wire-to-board connector system.
The contact gender is male.
The orientation of this header is straight.
The termination type is solder.
