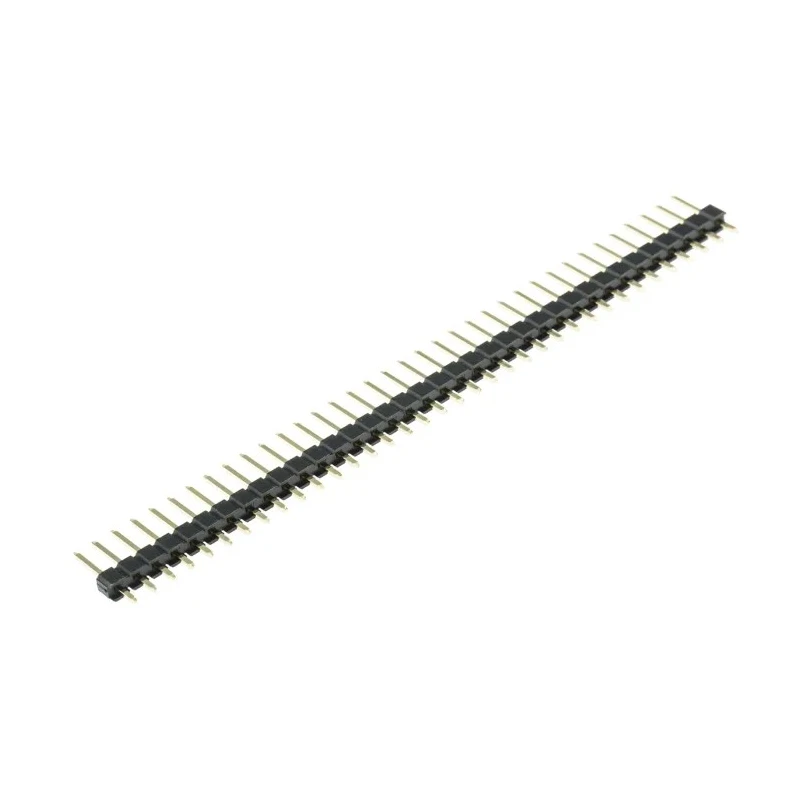

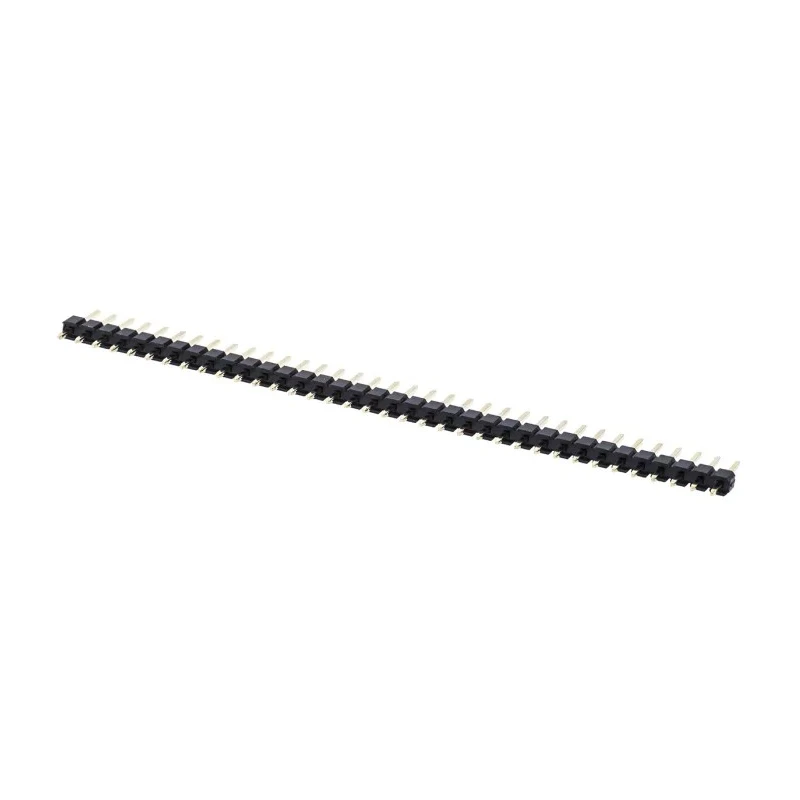

ASSMANN WSW AW140 Series Straight Through Hole Pin Header, 36 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded AW140
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 250V |
| Brand | ASSMANN WSW |
| Orientation | Straight |
| Current | 3A |
| Model | AW140 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AW140 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 36 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Tail Pin Length | 3mm |
| Mating Pin Length | 6.06mm |
Key Features
- Current rating of 3A for stable electrical performance.
- Features a 2.54 mm pitch and 1 row of contacts for standard PCB applications.
- Housing made of durable polybutylene terephthalate ensuring robustness.
- Gold-plated brass contacts provide excellent conductivity and resistance to corrosion.
- Unshrouded design allows easy access and soldering with a tail pin length of 3 mm.
- Supports board-to-board connector system with through-hole mount type for secure installation.
- Operates reliably within -40°C to 105°C temperature range.
- Mating pin length of 6.06 mm ensures proper connectivity.
Product Description
ASSMANN WSW AW140 Series Straight Through Hole Pin Header (Model AW140) offers a reliable solution for PCB connections with 36 male contacts in a single row, spaced at a 2.54 mm pitch. Constructed with polybutylene terephthalate housing and gold-plated brass contacts, this pin header ensures durability and excellent electrical conductivity for both industrial and electronic applications.
The pin header supports a current rating of 3A and a voltage rating of 250V, making it ideal for power and signal transmission in board-to-board connector systems. Its unshrouded design and through-hole mount type facilitate straightforward soldering and mounting on PCBs.
This component operates effectively within a wide temperature range from -40°C minimum to 105°C maximum, assuring performance stability in harsh environments. The male contact's tail pin length of 3 mm and mating pin length of 6.06 mm provide secure and precise connections.
Manufactured in China, the AW140 pin header is suitable for a variety of electronic device assembly, laboratory equipment, automation control systems, and general manufacturing uses where high-quality PCB interconnects are required.
Current rating of 3A for stable electrical performance. 2.54 mm pitch and 1 row of contacts for standard PCB applications. Housing made of durable polybutylene terephthalate ensuring robustness. Gold-plated brass contacts for excellent conductivity and corrosion resistance.
Unshrouded to allow easy soldering with 3 mm tail pin length. Through-hole mount type for secure board installation. Operating temperature range from -40°C to 105°C. Mating pin length of 6.06 mm ensures proper connectivity.
Voltage rating of 250V suitable for diverse electronics.
Choose this ASSMANN WSW AW140 Series pin header for reliable, high-performance PCB connector solutions in electronic and industrial applications. Explore more connectors and electronic components at EnvMart for your projects.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The current rating of this pin header is 3A, ensuring stable electrical performance for various applications.
The voltage rating for the AW140 pin header is 250V, making it suitable for power and signal transmission.
The contacts on this model are spaced at a pitch of 2.54 mm, which is standard for PCB applications.
This pin header features 36 male contacts arranged in a single row.
The housing is made of polybutylene terephthalate, and the contacts are constructed from brass with gold plating for excellent conductivity and corrosion resistance.
The operating temperature range for the AW140 is from -40°C to 105°C, allowing it to perform reliably in various environments.
This model supports a through-hole mount type, which provides secure installation on PCBs.
The tail pin length of the ASSMANN WSW AW140 is 3 mm, facilitating easy soldering.
The mating pin length is 6.06 mm, ensuring proper connectivity when interfacing with other components.
Yes, this pin header is designed to support a board-to-board connector system, making it suitable for various electronic applications.
The orientation of this pin header is straight, which is typical for many PCB applications.
This pin header is manufactured in China.
