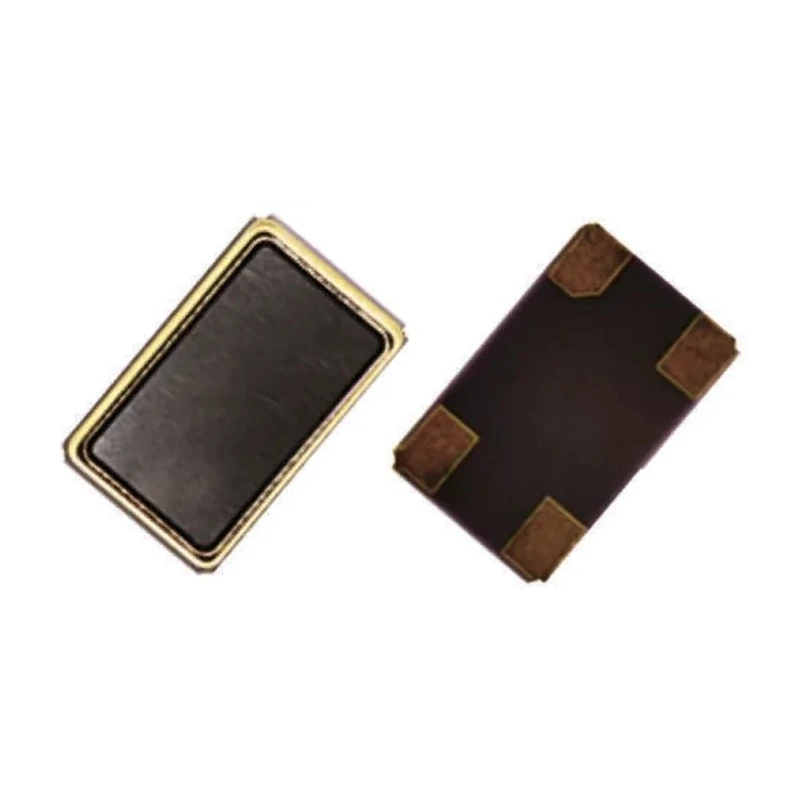

AKER 24 MHz Crystal ±30 ppm Surface Mount 4-Pin 5 mm x 3.2 mm x 1 mm C5S-24.000-12-3030-X

AKER introduces the C5S-24.000-12-3030-X, a precise 24 MHz crystal designed for surface mount technology. This component features a stable ±30 ppm frequency tolerance and a load capacitance of 12 pF, ensuring consistent oscillation frequency in electronic circuits.

The compact ceramic case measures 5 mm in length, 3.2 mm width, and 1 mm height, making it ideal for PCB layouts requiring small form factors. With a 4-pin configuration, the crystal mounts efficiently on the surface and is packaged via tape and reel to facilitate automated insertion in production lines.

This component operates reliably between -40°C and 85°C, suitable for a wide range of industrial and commercial electronic applications. The series resistance is 50 Ω, which helps maintain signal integrity in oscillator circuits.

AKER's C5S series crystals comply with RoHS directives, supporting environmentally friendly manufacturing processes. Though this model is not designed for automotive standards, it performs well in typical electronic devices requiring frequency stability.

This crystal is commonly used in applications including telecommunications, consumer electronics, instrumentation, and embedded systems where precise timing and frequency control are critical.

The crystal operates at a standard frequency of 24 MHz. It features a ceramic case measuring 5 mm length, 3.2 mm width, and 1 mm height. Frequency stability and tolerance are ±30 ppm for reliable performance. Suitable for surface mounting applications with tape and reel packaging.

Designed to operate within a temperature range from -40°C to 85°C. Series resistance is rated at 50 Ω. Compliant with RoHS standards for environmental safety. Manufactured under the C5S series, not suitable for automotive applications.

Country of origin is Taiwan, Province Of China. Explore more electronic components and crystal units in the Electronics Components category on EnvMart to support your design and manufacturing needs.
