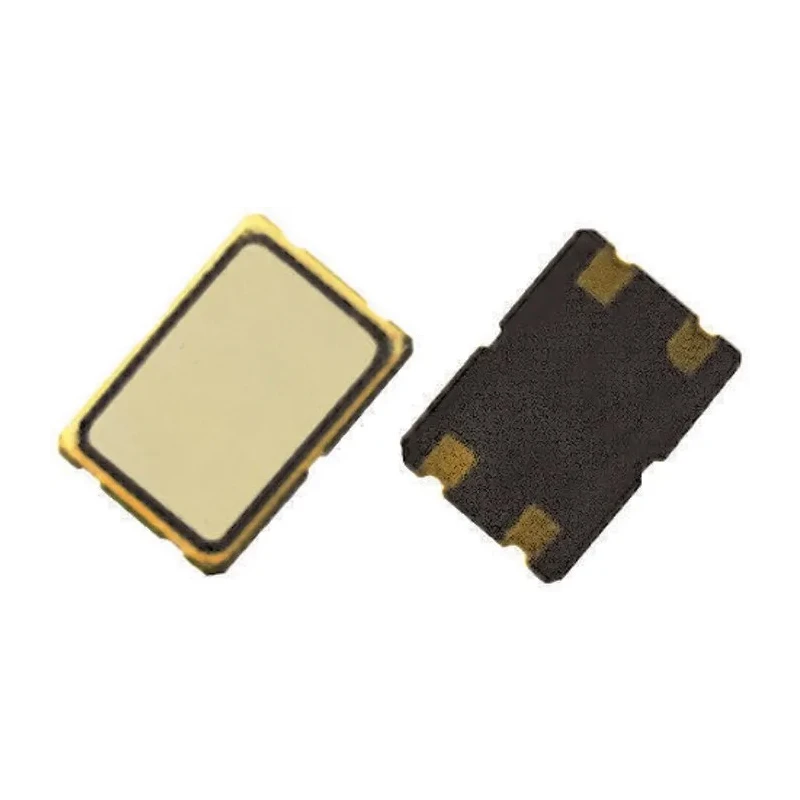

AKER 24 MHz Crystal ±30 ppm Surface Mount 4-Pin 1.1 mm Height 7 mm Length 5 mm Width C7S-24.000-12-3030-X

Free Delivery in India | Lowest Global Shipping Charges

AKER 24 MHz Crystal ±30 ppm Surface Mount 4-Pin 1.1 mm Height 7 mm Length 5 mm Width C7S-24.000-12-3030-X

Name: AKER 24 MHz Crystal ±30 ppm Surface Mount 4-Pin 1.1 mm Height 7 mm Length 5 mm Width C7S-24.000-12-3030-X
Brand: Aker
SKU: 207901
Price: 1.56 USD
Availability: InStock



Category Crystals, Oscillators & Resonators Brand Aker Condition New

Specifications

Country of Origin	Taiwan
Brand	AKER
Height	1.1mm
Length	7mm
Model	C7S-24.000-12-3030-X
Packaging	Tape & Reel
Width	5mm
Mount Type	Surface
Series	C7S
Maximum Operating Temperature	85°C
Package Type	Surface Mount
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Standard Frequency	24MHz
Load Capacitance	12pF
Series Resistance	30Ω

Key Features

Standard frequency of 24 MHz ensures precise oscillation for advanced electronic circuits.
Load capacitance is rated at 12 pF, suitable for stable circuit performance.

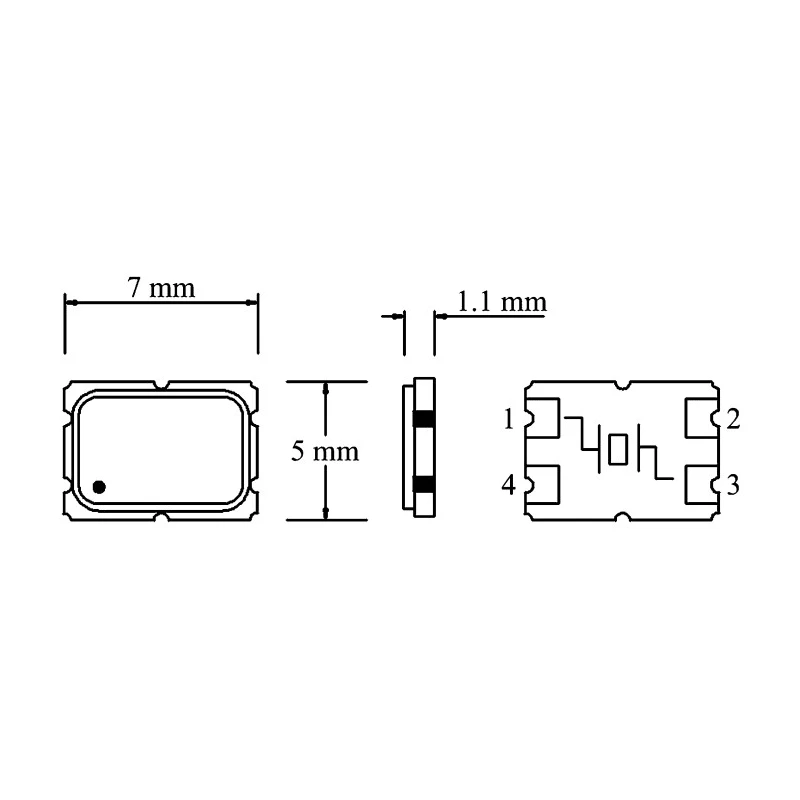

Compact surface mount package type with dimensions 7 mm length, 5 mm width, and 1.1 mm height.
Operates reliably within temperature range from -40°C to +85°C.
Series resistance of 30 Ω supports optimal electrical tuning.
RoHS compliant, meeting environmental safety standards.
Packaged in tape & reel format for efficient automated assembly.
Manufactured in Taiwan, Province Of China.

Product Description

AKER C7S-24.000-12-3030-X is a high-precision 24 MHz crystal designed for surface mount applications. Featuring a 4-pin configuration, this crystal offers a frequency tolerance and stability of ±30 ppm, providing reliable oscillation performance in various electronic, industrial, and communication systems.

The component is packaged in a surface mount metal case with dimensions of 7 mm length, 5 mm width, and 1.1 mm height, making it ideal for compact PCB layouts. Its load capacitance of 12 pF ensures compatibility with a wide range of circuit designs. The series resistance of 30 Ω allows optimal frequency tuning and minimal signal degradation.

Operating within a temperature range of -40°C to +85°C, this crystal is suited for use in industrial automation, telecommunications, instrumentation, and other demanding environments requiring stable frequency reference. The product complies with RoHS environmental standards, ensuring it meets sustainable manufacturing requirements.

The C7S series crystal is delivered in tape and reel packaging, designed for pick-and-place automated assembly processes, improving production efficiency and consistency. Originating from Taiwan, Province Of China, this component offers trusted quality for electronics manufacturing.

Standard frequency: 24 MHz. Frequency tolerance ±30 ppm. Mount type: Surface mount, 4 pins. Package dimensions: Length 7 mm, Width 5 mm, Height 1.1 mm. Load capacitance: 12 pF. Operating temperature: -40°C to 85°C. Series resistance: 30 Ω.

RoHS compliant. Packaging type: Tape & reel.

These crystals are extensively used in industrial electronics, telecommunications, instrumentation, laboratory equipment, and manufacturing systems where precise timing and frequency control are critical. Explore more in the Crystals, Oscillators & Resonators category on EnvMart for related high-quality components by AKER and other manufacturers.
