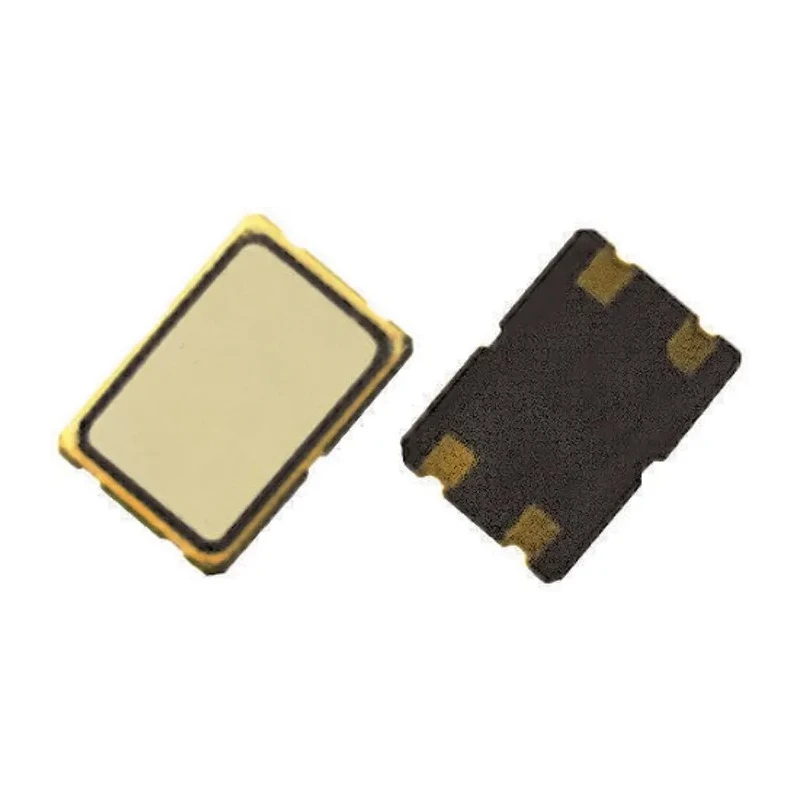

AKER 24 MHz Crystal ±30 ppm Surface Mount 4-Pin 7mm x 5mm x 1.1mm C7S-24.000-12-3030-X

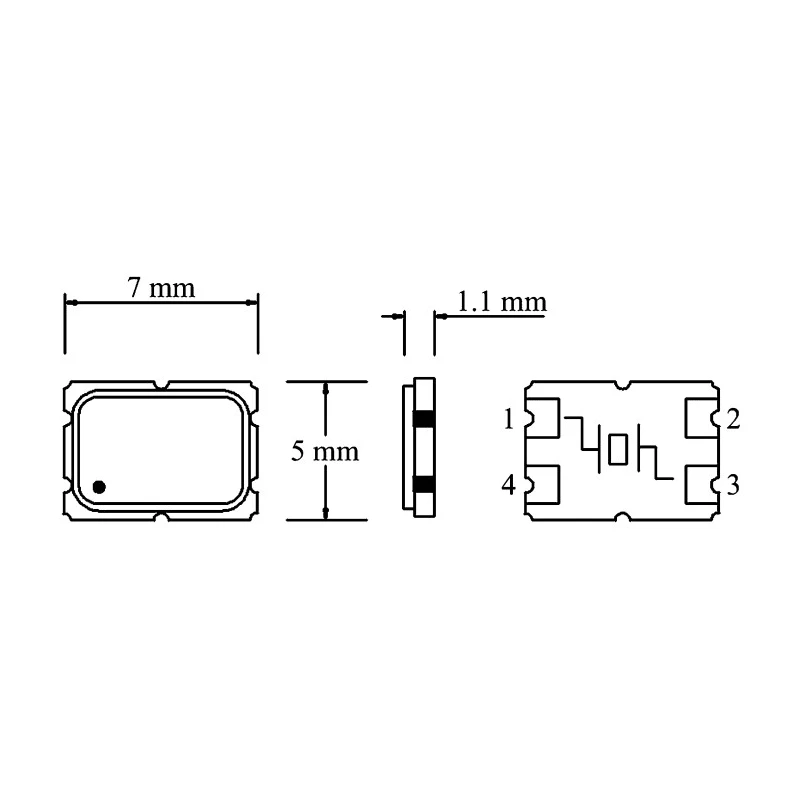

AKER C7S-24.000-12-3030-X is a high-quality 24 MHz crystal oscillator designed for surface mount technology with 4 pins, measuring 7 mm in length, 5 mm in width, and 1.1 mm in height. It exhibits a frequency tolerance and stability of ±30 ppm, making it suitable for precise timing applications in electronic circuits.

This crystal operates with a load capacitance of 12 pF and a series resistance of 30 Ω, ensuring stable oscillation within the defined operating temperature of -40°C to 85°C. Its compact surface mount package type enables efficient PCB layouts, saving board space in modern electronic designs.

The device meets RoHS compliance standards and is packaged on tape and reel format, facilitating automated placement in manufacturing environments. Its robust performance criteria make it ideal for use in industrial electronics, communication equipment, and consumer devices requiring reliable frequency control.

Typical applications include microcontrollers, timing circuits, communication modules, and other electronic assemblies where stable crystal oscillators are critical. This crystal operates at 24 MHz with precise frequency stability.

Surface mount package with 4 pins supports compact PCB designs. Wide operating temperature from -40°C to 85°C ensures durability. Supplied on tape and reel for high-volume automated assembly. RoHS compliant to meet environmental and safety regulations.

Optimized series resistance ensures quality oscillation performance. Explore more electronic components such as crystal units at EnvMart for your industrial and commercial projects requiring precise timing and frequency control solutions.
