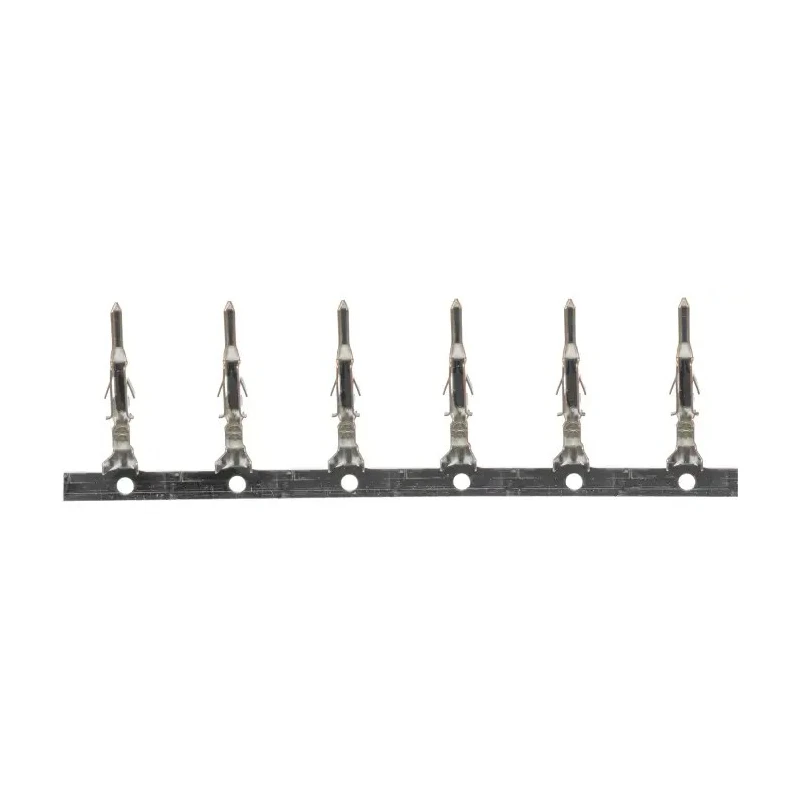

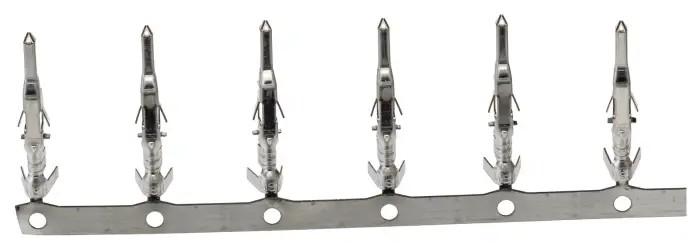

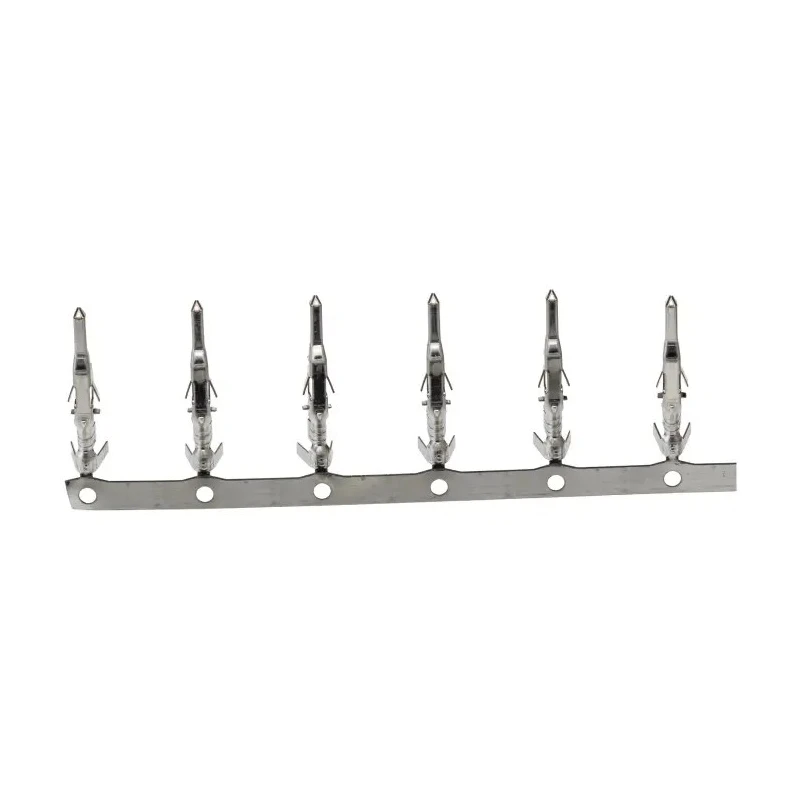

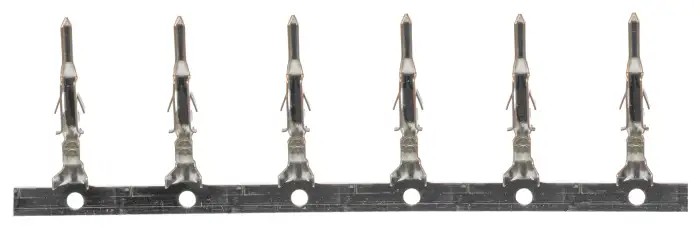

Molex 5558 Series Male Crimp Terminal, Tin Plated Phosphor Bronze, 9A Current, 24 AWG Min to 18 AWG Max 39-00-0061

Free Delivery in India | Lowest Global Shipping Charges

Molex 5558 Series Male Crimp Terminal, Tin Plated Phosphor Bronze, 9A Current, 24 AWG Min to 18 AWG Max 39-00-0061

Name: Molex 5558 Series Male Crimp Terminal, Tin Plated Phosphor Bronze, 9A Current, 24 AWG Min to 18 AWG Max 39-00-0061
Brand: Molex
SKU: 207242
Price: 0.11 USD
Availability: InStock



Category Crimp Contacts Brand Molex Condition New

Specifications

Country of Origin	China
Brand	Molex
Current	9A
Gender	Male
Contact Material	Phosphor Bronze
Series	5558
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Mini-Fit Jr, Mini-Fit TPA and Mini-Fit BMI Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.8mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	18AWG
Maximum Contact Resistance	20mΩ

Key Features

Compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings.
Constructed from durable phosphor bronze for excellent conductivity.
Tin plating enhances corrosion resistance for extended service life.
Crimp termination method provides secure and reliable electrical connections.
Supports wire sizes ranging from 0.2 mm² (24 AWG) to 0.8 mm² (18 AWG).
Maximum contact resistance is 20 milliohms ensuring low electrical loss.
Operates reliably between temperatures of -40°C to 105°C.
Ideal for use in automotive wiring harnesses and consumer electronics assembly.

Product Description

Molex 39-00-0061 is a male crimp terminal from the 5558 Series, designed specifically for use with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. It supports a wire size range from 0.2 mm² (24 AWG) minimum to 0.8 mm² (18 AWG) maximum, making it versatile for various electrical wiring tasks. Its 9 Amp current rating accommodates moderate electrical loads commonly found in consumer electronics and automotive applications.

This terminal is constructed from high-quality phosphor bronze, offering excellent electrical conductivity and mechanical durability. The tin plating on the contact enhances corrosion resistance, which is critical for maintaining reliable connections over time, especially in environments exposed to moisture and contaminants.

The crimp termination method used ensures a secure and robust electrical connection, minimizing the risk of connection failure due to vibration or mechanical stress. The terminal maintains a low maximum contact resistance of 20 milliohms, supporting efficient current flow and reducing power loss.

Designed to operate in a temperature range spanning -40°C to 105°C, this crimp terminal performs reliably under diverse environmental conditions. Its compact size and compatibility with Mini-Fit connector housings make it a common choice for wiring harness assembly in automotive industries, consumer electronics, and machinery.

Compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings. Durable phosphor bronze construction with tin plating for corrosion protection. Supports wire sizes 24 AWG (0.2 mm²) to 18 AWG (0.8 mm²). Crimp termination for secure, reliable connections.

9 Amp current rating suitable for moderate electrical loads. Operating temperature range: -40°C to 105°C. Maximum contact resistance: 20 milliohms. Ideal for automotive wiring harnesses and consumer electronics assembly.

This product is manufactured in China and meets quality standards consistent with Molex's reputation for connectors and terminals. It is a reliable component choice for engineers and technicians working in industrial, automotive, electronics manufacturing, and electrical maintenance sectors.

Explore our Electronics Components category for a wide selection of related Crimp Contacts and connectors to complement your design and assembly needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model has a current rating of 9 Amps, suitable for moderate electrical loads commonly encountered in various applications.

It supports wire sizes ranging from 24 AWG (0.2 mm²) to 18 AWG (0.8 mm²), making it versatile for different wiring tasks.

The terminal is constructed from phosphor bronze, which provides excellent conductivity, and features a tin plating that enhances corrosion resistance.

The maximum contact resistance is 20 milliohms, ensuring low electrical loss and efficient current flow.

It operates reliably between temperatures of -40°C to 105°C, suitable for diverse environmental conditions.

This terminal is compatible with Mini-Fit Jr, Mini-Fit TPA, and Mini-Fit BMI connector housings, allowing for flexible usage in various applications.

It employs a crimp termination method, which provides secure and reliable electrical connections, minimizing the risk of connection failure.

Specific dimensions are not provided, but it is designed to fit within the Mini-Fit connector housings, ensuring compact integration.

It is ideal for use in automotive wiring harnesses and consumer electronics assembly, where secure connections are crucial.

This product is manufactured in China, adhering to quality standards consistent with the Molex brand.

The tin plating enhances corrosion resistance, which is important for maintaining reliable connections, especially in moist or contaminated environments.

This crimp terminal is male, designed to connect with corresponding female connectors in various applications.
