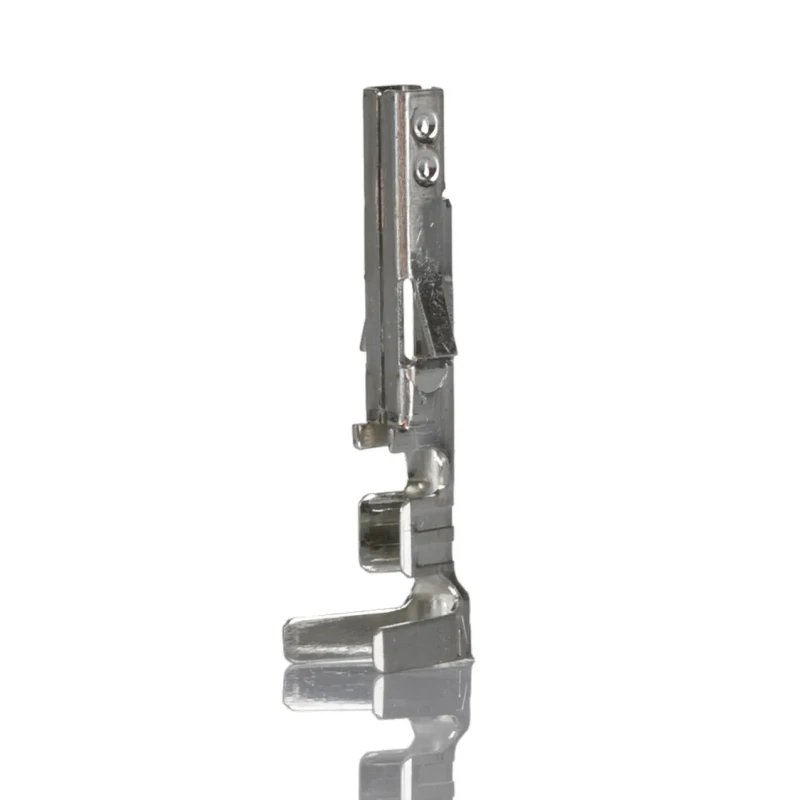

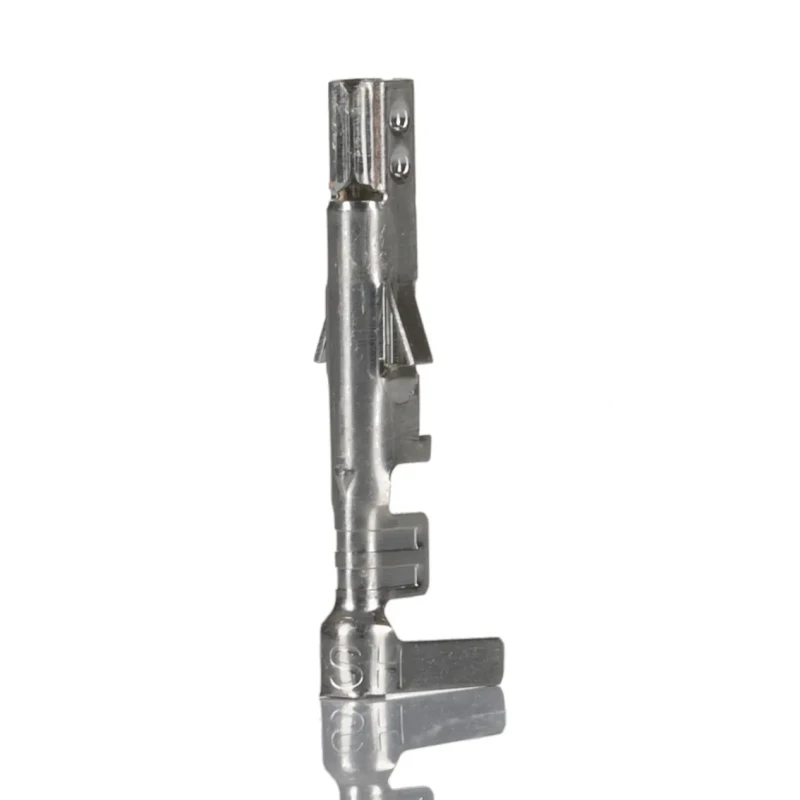

Molex 5556 Series Female Crimp Terminal, 24 AWG Min Crimp, 18 AWG Max, Phosphor Bronze Tin Plated, 9A Current 39-00-0214
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Supports wire sizes from 24 AWG minimum to 18 AWG maximum for versatile wiring needs.
- Constructed from phosphor bronze with tin plating to resist corrosion and ensure conductivity.
- Rated for a current capacity of 9A suitable for low current applications.
- Termination by crimping ensures fast and secure connection to Mini-Fit TPA, BMI, and Mini-Fit Jr housings.
- Operates reliably between -40°C to 105°C temperature range for rugged industrial use.
- Locking tangs provide secure hold in connector housing preventing accidental disconnections.
- Designed for multiple mating cycles with mechanical wear resistance for durability.
- Ideal for applications in agricultural equipment, medical devices, control panels, and industrial automation.
Product Description
Molex 39-00-0214 female crimp terminal belongs to the 5556 Series and is engineered for secure wire-to-connector termination with high reliability. It supports a wire size range from 24 AWG minimum to 18 AWG maximum, making it adaptable for multiple wiring configurations. The contact material is phosphor bronze offering excellent conductivity, coated with tin plating to provide corrosion resistance.
Designed to carry currents up to 9 amps, this terminal suits low-to-medium current applications such as control panels, agricultural machinery, medical devices, and industrial automation. The crimp termination type allows quick and consistent installation with Mini-Fit TPA, BMI, and Mini-Fit Jr connector housings. Locking tangs on the contacts ensure firm retention inside connector housings and prevent accidental wire release during operation.
The terminal reliably operates in environments with temperatures ranging from -40°C to 105°C. Its maximum contact resistance is 10 milliohms, preserving performance under electrical load. The durability supports multiple mating cycles without significant mechanical wear, promoting longevity in dynamic use cases.
Wire size range from 24 AWG to 18 AWG for broad wiring flexibility. Corrosion-resistant tin plating over phosphor bronze contact material. Secure crimp termination compatible with Mini-Fit connector housings. Rated current carrying capacity of 9 amps for low current circuits.
Wide operating temperature (-40°C to 105°C) for industrial environments. Locking tangs secure terminals within connector housings. Multiple mating cycles capability with mechanical wear resistance. Suitable for applications in agricultural machinery, medical and industrial automation.
This crimp terminal is an essential component for robust and reliable wire connections in professional electronics, electrical assemblies, manufacturing, and automotive industries. Molex’s legacy and precision engineering ensure high quality and performance compliance for critical connector applications.
Explore more Crimp Contacts and connectors in the Electronics & Electricals category on EnvMart for complementary products and system integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal supports a wire size range from 24 AWG minimum to 18 AWG maximum.
It is rated for a current capacity of 9A, suitable for low-to-medium current applications.
The contact material is phosphor bronze, coated with tin plating to provide corrosion resistance and ensure conductivity.
It operates reliably in environments with temperatures ranging from -40°C to 105°C.
This terminal is compatible with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings.
The maximum contact resistance is 10 milliohms, which helps preserve performance under electrical load.
The crimp termination type allows for quick and consistent installation, ensuring a secure connection.
It is suitable for applications in agricultural equipment, medical devices, control panels, and industrial automation.
This crimp terminal is female gendered, designed for secure wire-to-connector termination.
The locking tangs provide a secure hold in the connector housing, preventing accidental disconnections during operation.
The product is manufactured in India.
It is designed to support multiple mating cycles with mechanical wear resistance, promoting longevity in dynamic use cases.
