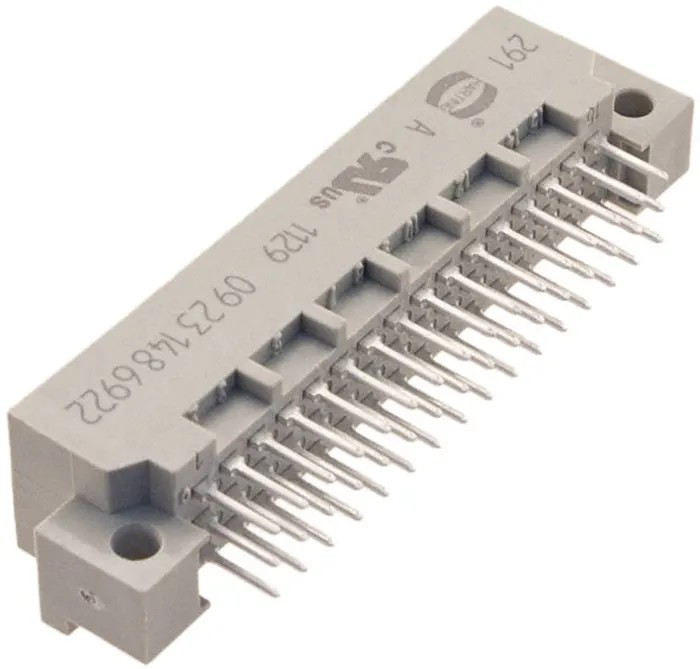

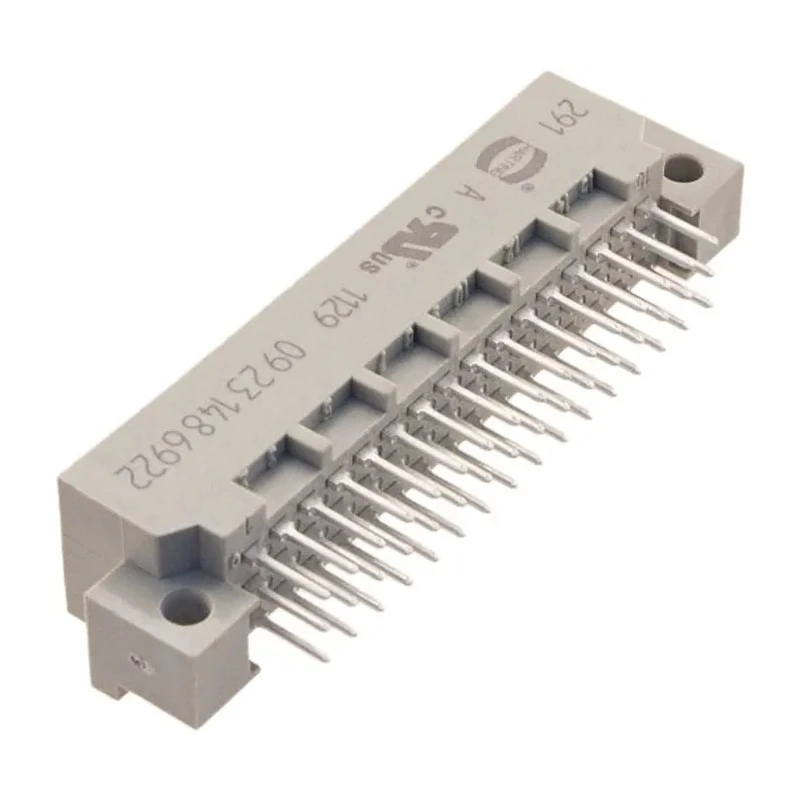

HARTING DIN 41612 Connector 48 Contacts 3 Row Male Straight 2.54 mm Pitch Type C/2 Solder Class C2 09231486922
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | HARTING |
| Orientation | Straight |
| Current | 2A |
| Housing Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Series | 09 23 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | C/2 |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 3 |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 48 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/B/C |
Key Features
- This connector is designed for reliable PCB interconnection and signal transmission.
- It features gold over nickel plating for superior contact performance.
- Rated for up to 2A current with copper alloy contacts.
- Robust thermoplastic housing ensures durability under industrial conditions.
- Operates effectively in temperatures ranging from -55°C to 125°C.
- Suitable for backplane and rack connector applications in electronics and power systems.
- Meets DIN 41612 standards providing compatibility with Eurocard systems.
- Provides low contact resistance up to 20 milliohms for optimal electrical efficiency.
Product Description
HARTING 09231486922 DIN 41612 Connector is a 3-row, 48-contact male connector with a standard 2.54 mm pitch designed for reliable PCB solder mounting applications. It features Type C/2 configuration and Class C2 solder termination which ensures a solid and durable connection with excellent electrical performance.
The connector's contacts are made from copper alloy and plated with gold over nickel, providing enhanced conductivity and corrosion resistance. Its thermoplastic housing is glass fibre filled for extra strength, suitable for demanding industrial environments.
Operating temperature range is from -55°C to +125°C, making it suitable for diverse conditions in electronics manufacturing, power distribution, and automation systems. The connector complies with DIN 41612 standards, commonly used in Eurocard rack systems for backplane connections.
Providing a current rating of 2A per contact and a maximum contact resistance of 20 milliohms, it ensures low power loss and signal integrity. Its straight orientation and 3-row layout support high-density interconnections for sophisticated electronic assemblies.
This HARTING DIN 41612 Connector is ideal for industrial electronics, power connectors, and electronic component OEMs seeking reliable and standardized connectors for backplane and rack systems. Its robust build offers a long mating cycle life with stable electrical characteristics.
This connector is designed for reliable PCB interconnection and signal transmission. It features gold over nickel plating for superior contact performance. Rated for up to 2A current with copper alloy contacts. Robust thermoplastic housing ensures durability under industrial conditions.
Operates effectively in temperatures ranging from -55°C to 125°C. Suitable for backplane and rack connector applications in electronics and power systems. Meets DIN 41612 standards providing compatibility with Eurocard systems.
Provides low contact resistance up to 20 milliohms for optimal electrical efficiency. Three-row, 48 contact configuration supports complex wiring needs. Designed for industrial, electronic manufacturing, and automation environments.
Explore HARTING connectors and related products at EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector is rated for up to 2A current per contact, ensuring reliable performance in electrical applications.
It operates effectively in temperatures ranging from -55°C to +125°C, making it suitable for diverse industrial conditions.
This connector features 48 contacts arranged in a 3-row configuration, supporting complex wiring needs.
It utilizes Class C2 solder termination, which ensures a solid and durable connection.
The contacts are made from copper alloy and are plated with gold over nickel for enhanced conductivity and corrosion resistance, while the housing is made from thermoplastic.
Yes, it meets DIN 41612 standards, providing compatibility with Eurocard systems commonly used in backplane connections.
The maximum contact resistance is 20 milliohms, which contributes to optimal electrical efficiency.
This model has a straight orientation, which is suitable for various PCB mounting applications.
The connector has a standard pitch of 2.54 mm, facilitating compatibility with various electronic assemblies.
The connector is manufactured in Germany, ensuring adherence to high-quality standards.
It is suitable for backplane and rack connector applications in electronics and power systems, particularly in industrial environments.
The housing is made of robust thermoplastic material, designed to withstand demanding industrial conditions.
