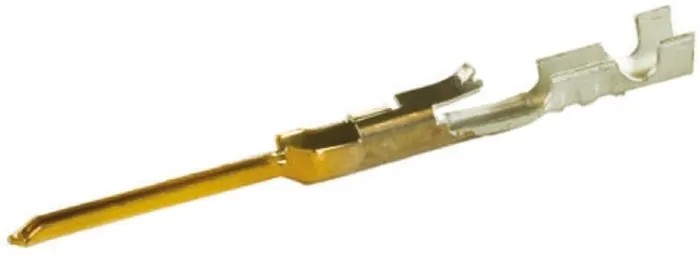

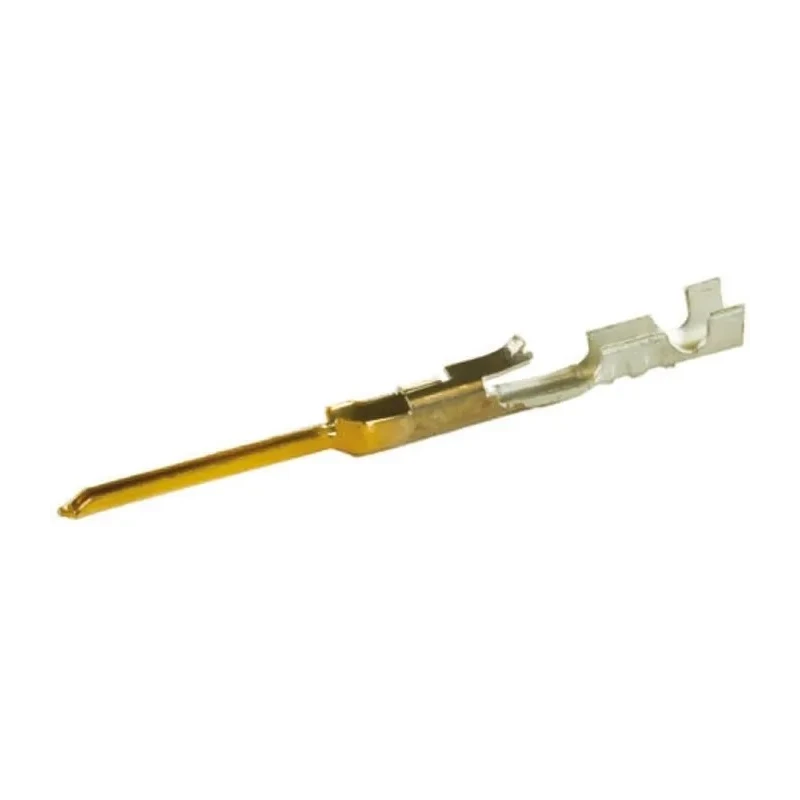

Molex Male Crimp Terminal 24 AWG Min Crimp, 22 AWG Max, Gold Plated, Phosphor Bronze Contact Material 16-02-0117

Molex 16-02-0117 Male Crimp Terminal is a precision engineered crimp contact designed for secure and reliable wire connections in electronic assemblies. It supports a wire size range from 24 AWG minimum to 22 AWG maximum, providing flexibility for various wiring gauges encountered in industrial and commercial uses.

This crimp terminal features gold-plated contacts over phosphor bronze material, offering excellent electrical conductivity and resistance to corrosion. The crimp termination type ensures a robust mechanical and electrical connection, optimized for use with Molex SL Connector Housings, specifically designed for the 70021 series.

Electric current rating for this terminal is 3 amperes, with a maximum contact resistance of 15 milliohms, ensuring effective signal integrity. The terminal is rated for operation in temperature environments ranging from -40°C to 105°C, making it suitable for demanding applications such as automotive systems, commercial vehicles, consumer electronic devices, portable instruments, and network communications.

The product is manufactured in the United States, complying with high quality control standards but does not carry additional formal approvals or certifications. It is part of Molex's extensive SL series crimp terminals, which also include complementary 70058 and 71851 series used with related housing options.

Compatible with SL Connector Housing series 70021. Rated for 3A current with a maximum contact resistance of 15 milliohms. Supports operating temperatures from -40°C to 105°C. Contact termination is by crimp, ensuring reliable electrical connections.

Gold plating enhances corrosion resistance and conductivity. Manufactured in the United States ensuring high quality standards. Suitable for automotive, commercial vehicles, consumer electronics, and networking applications.

Part of Molex's 70021 Series of SL Crimp Contacts for versatile PCB wiring solutions.

Industrial and manufacturing users will find this crimp terminal particularly useful for improving wiring assembly efficiency and reliability in electronic products. It supports a broad range of applications in automotive, medical devices, communications, and networking sectors.
