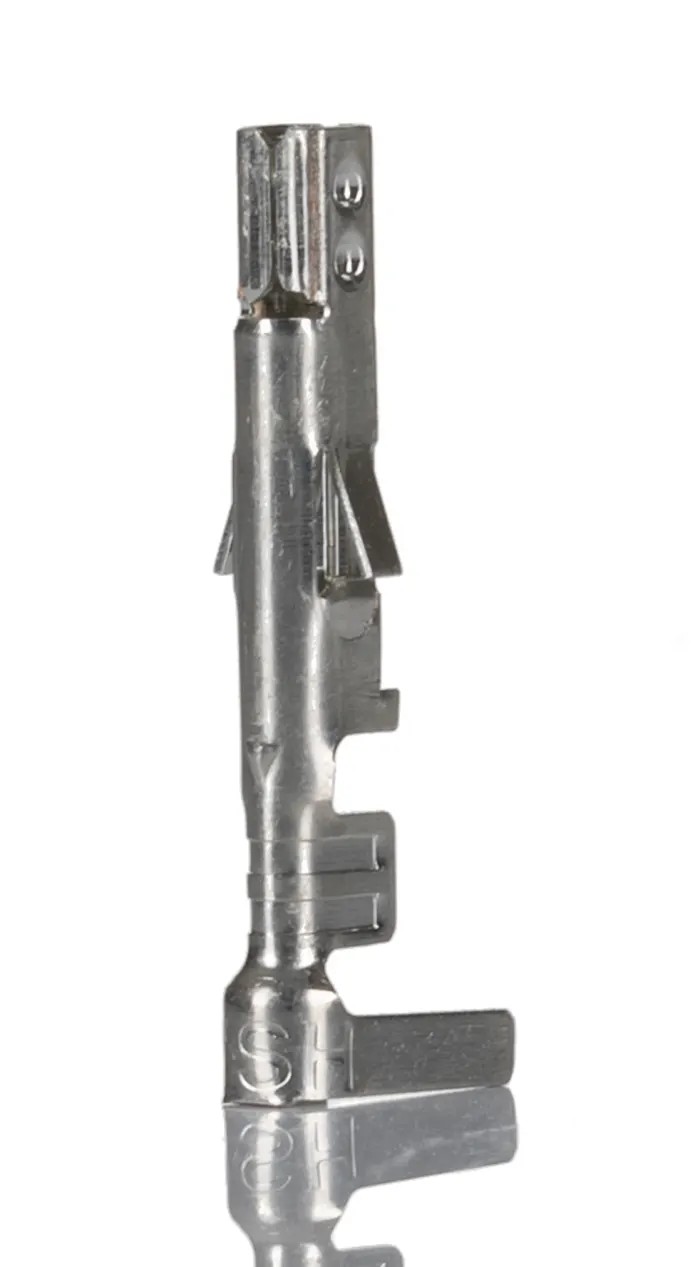

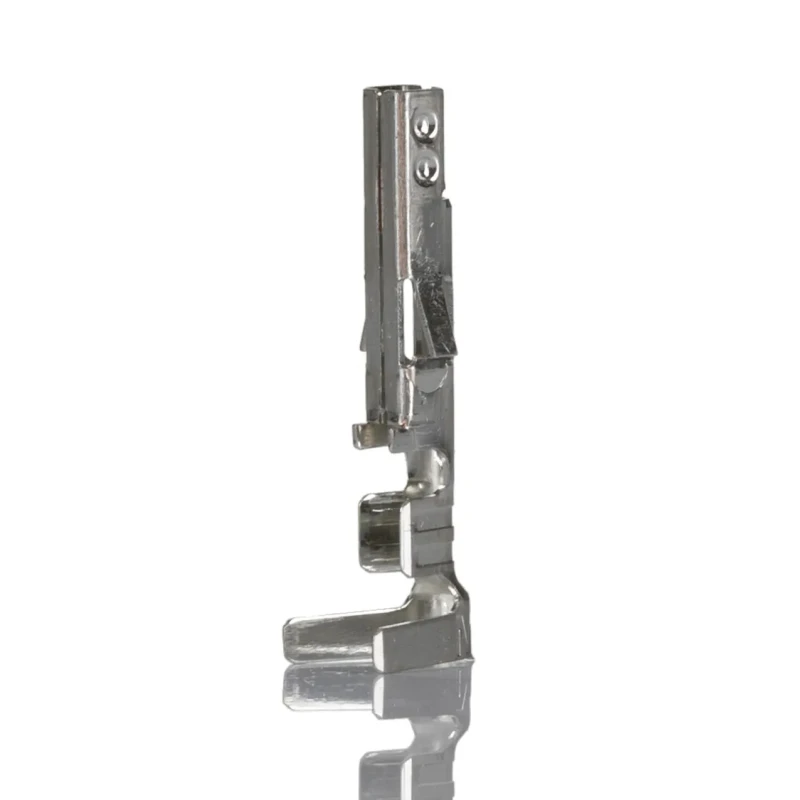

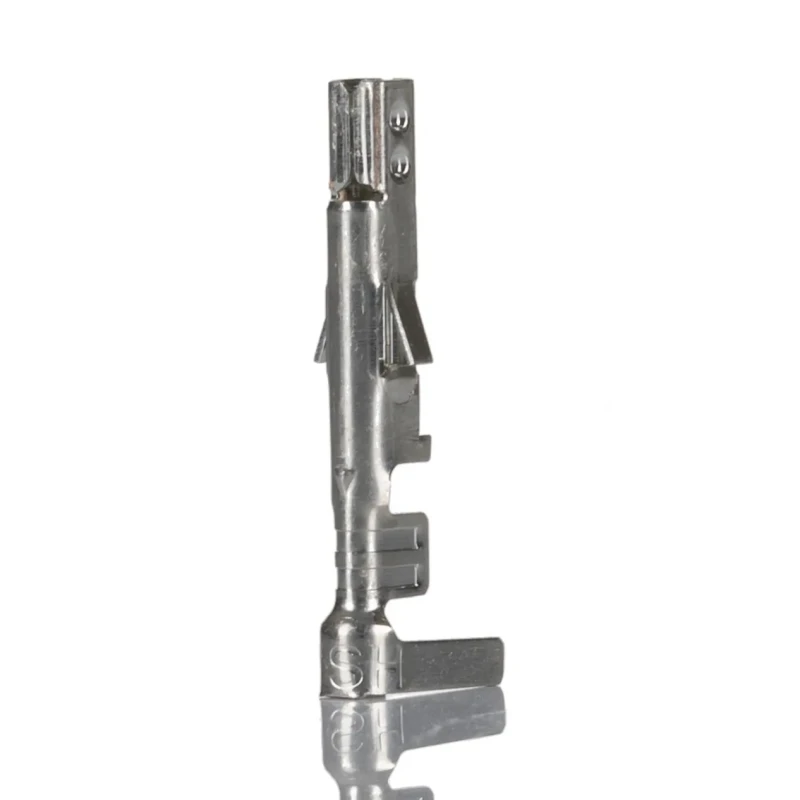

Molex 5556 Series Female Crimp Terminal, 24 AWG Min, 18 AWG Max, 9A Current, Tin Plating, Phosphor Bronze Contact 39-00-0214
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Current | 9A |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | 5556 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| For Use With | Mini-Fit TPA and Mini-Fit BMI Connector Housings, Mini-Fit Jr |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 18AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed with phosphor bronze for excellent conductivity and strength.
- Tin plating protects against corrosion and ensures long-lasting performance.
- Suitable for Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings.
- Features locking tangs for secure retention within the connector housing.
- Supports up to 105°C operating temperature and withstands -40°C minimum temperature.
- Crimp termination ensures a fast and durable wire connection.
- Designed for multiple mating cycles, withstanding mechanical wear.
Product Description
Molex 39-00-0214 female crimp terminal from the 5556 series is engineered for secure and reliable electrical connections in low-current applications up to 9A. This crimp terminal accepts wire sizes from 24 AWG minimum to 18 AWG maximum, providing wiring flexibility within the Mini-Fit family of connectors including Mini-Fit TPA, BMI, and Jr housings.
The contact is fabricated from phosphor bronze, delivering excellent electrical conductivity and mechanical strength. Its tin plating safeguards against corrosion, thereby extending the terminal's lifespan in demanding environments.
Locking tangs on the terminal provide a secure hold within connector housings, preventing accidental disconnection during operation. The crimp termination type allows for efficient, durable attachment to conductors.
With an operating temperature range from -40°C to 105°C, this crimp terminal is suitable for a variety of industrial and commercial electronic applications including control panels, agricultural equipment, and medical devices.
The 39-00-0214 terminal is designed to withstand multiple mating cycles, ensuring mechanical reliability and consistent electrical performance over time. Phosphor bronze contact material offers durability and conductivity.
Tin plating minimizes corrosion risks. Range of compatible housings enhances application versatility. 9A current rating supports various low-current uses. Locking tangs secure terminal in connector housing. Crimp termination provides quick and secure wire attachment.
Wide temperature operating range from -40°C to 105°C.
This Molex 5556 Series female crimp terminal is ideal for use in electronic manufacturing, automation, telecommunications, and medical sectors. For detailed assembly and design, Molex provides technical documents and 3D models to support product integration.
Explore other high-quality Crimp Contacts and connectors to complement your electronic assemblies and enhance system reliability with Molex components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 9A, making it suitable for low-current applications.
It accepts wire sizes from 24 AWG minimum to 18 AWG maximum, providing flexibility for various wiring needs.
The contact is made from phosphor bronze, and it features tin plating to protect against corrosion.
It is designed for use with Mini-Fit TPA, Mini-Fit BMI, and Mini-Fit Jr connector housings.
The operating temperature range is from -40°C to 105°C, suitable for various industrial applications.
Crimp termination ensures a fast and durable attachment to conductors, facilitating efficient wire connections.
Locking tangs on the terminal provide a secure hold within the connector housing, preventing accidental disconnection.
The maximum contact resistance is 10mΩ, ensuring effective electrical connectivity.
It is suitable for various applications including control panels, agricultural equipment, and medical devices.
This terminal is designed to withstand multiple mating cycles, ensuring mechanical reliability over time.
The country of origin for this crimp terminal is India.
Specific dimensions are not provided, but it is designed to fit within standard Mini-Fit connector housings.
