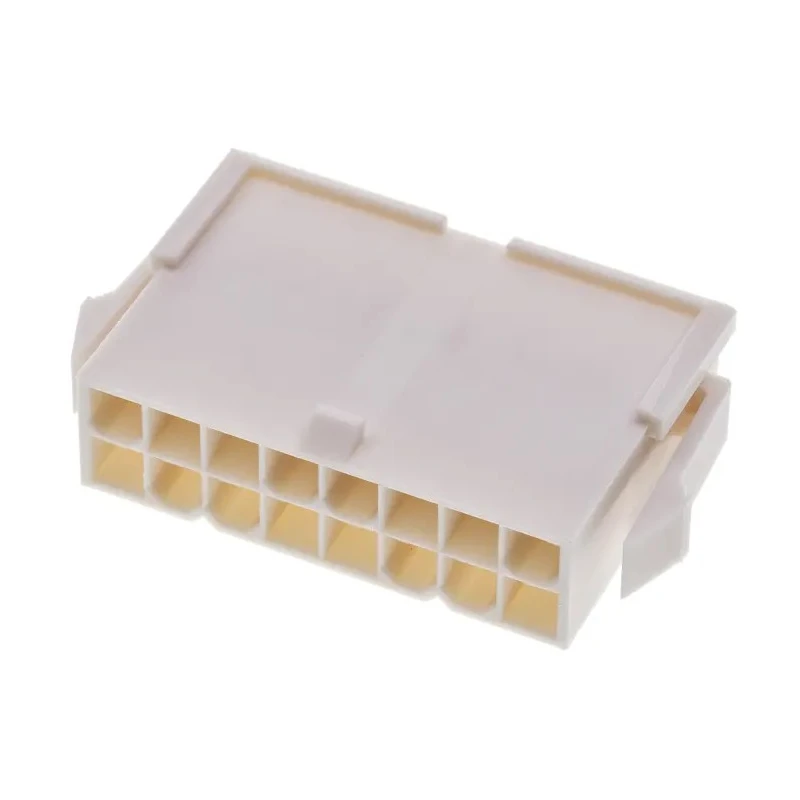

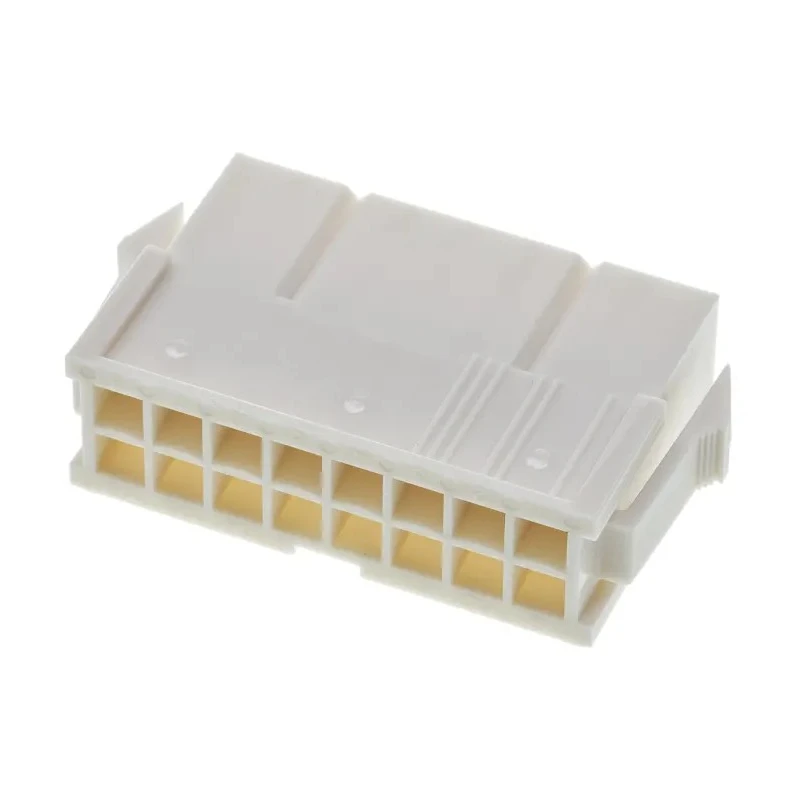

Molex Mini-Fit Male Connector Housing Panel Mount 16 Way 2 Row Straight 4.2 mm Pitch 39-01-2166
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 40.2mm |
| Width | 23.9mm |
| Mount Type | Panel Mount |
| Housing Material | Nylon |
| Series | Mini-Fit |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| For Use With | 5558, 30490 Male Terminals, 46012 Mini-Fit Plus Crimp Terminals |
| Number of Contacts | 16 |
| Connector Gender | Male |
Key Features
- Supports up to 13A current per circuit for high current applications.
- Fully isolated terminals prevent debris entry and damage during handling.
- Polarization and keying features prevent mismating and misalignment.
- Positive locking mechanism ensures secure mating connection and prevents accidental disconnection.
- Audible click confirms proper mating for user assurance.
- Constructed with durable nylon housing material with UL94V-0 or UL94V-2 flame retardant options.
- Compatible with standard Mini-Fit and Mini-Fit Plus crimp terminals.
- Suitable for wire-to-wire and wire-to-board applications in industrial and electronic systems.
Product Description
Molex 39-01-2166 Mini-Fit Male Connector Housing is a 16-contact, 2-row straight panel mount connector designed with a 4.2 mm pitch for use in power and electronic component interconnections. It offers a robust and flexible solution for high current applications up to 13A per circuit.
The connector housing is manufactured from durable nylon material that meets flame retardant standards UL94V-0 or UL94V-2, providing safety and protection in various industrial environments. The fully isolated terminals prevent ingress of debris and protect terminals from damage due to mishandling.
Designed with polarization and keying mechanisms, this housing prevents mismating and ensures correct alignment when connecting. A positive locking mechanism provides a secure connection that resists accidental unmating caused by shock or vibration. An audible click confirms the connector is fully mated.
This Molex Mini-Fit housing is compatible with standard Mini-Fit and Mini-Fit Plus crimp terminals, enabling versatile wire-to-wire and wire-to-board applications. Its panel mount orientation facilitates easy installation in electronic assemblies.
Ideal for use in industrial, electronic manufacturing, power distribution, telecommunications, and automation equipment, this Connector Housing supports reliable and safe electrical connections.
Supports up to 13A current per circuit for high current applications. Fully isolated terminals for protection against debris and handling damage. Polarization and keying prevent mismating and misalignment. Positive locking mechanism prevents accidental disconnection from shock or vibration.
Audible click confirms proper mating of the connector. Durable nylon housing material with flame retardant UL94V-0 or UL94V-2 options. Compatible with Mini-Fit and Mini-Fit Plus crimp terminals. Suitable for wire-to-wire and wire-to-board electronic applications.
Explore the full range of Molex connectors and housings with EnvMart for your industrial and electronic interconnection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector housing supports up to 13A current per circuit, making it suitable for high current applications.
The pitch size of this connector is 4.2 mm, which is standard for Mini-Fit series connectors.
It has 16 contacts arranged in a 2-row configuration.
The housing is constructed from durable nylon material, which is available in UL94V-0 or UL94V-2 flame retardant options.
This model is designed for panel mount installation, facilitating easy integration into electronic assemblies.
Yes, it is compatible with standard Mini-Fit and Mini-Fit Plus crimp terminals, specifically designed for use with 5558, 30490 male terminals, and 46012 Mini-Fit Plus crimp terminals.
The connector includes polarization and keying features that prevent mismating and ensure correct alignment during connection.
An audible click confirms that the connector is fully mated, providing user assurance of a secure connection.
The dimensions of the housing are 40.2 mm in length and 23.9 mm in width.
It is suitable for wire-to-wire and wire-to-board applications in industrial and electronic systems, including power distribution and telecommunications.
The country of origin for this connector housing is India.
It features a positive locking mechanism that prevents accidental disconnection due to shock or vibration.
