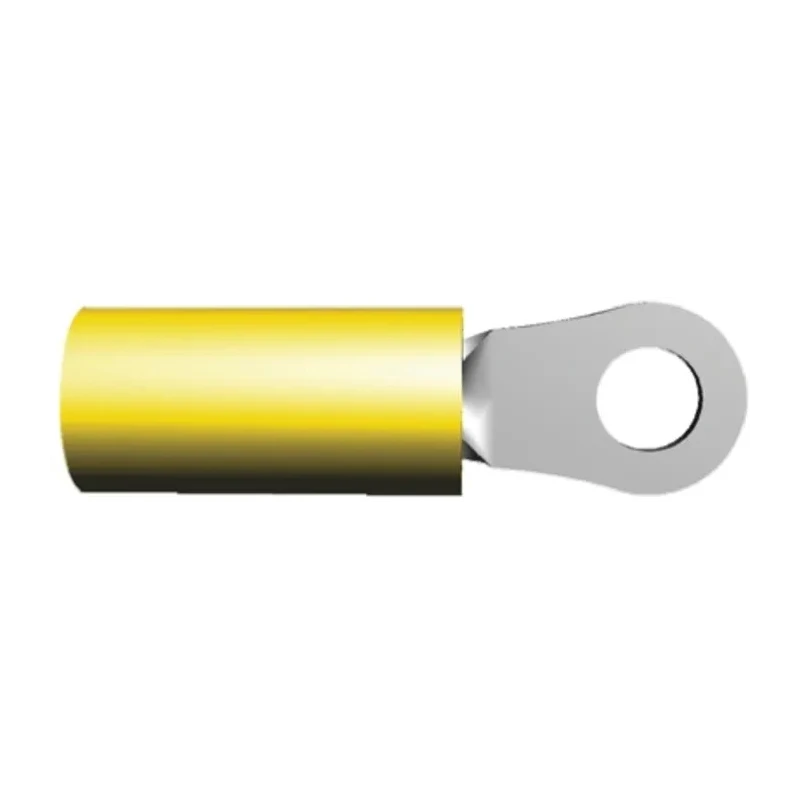

TE Connectivity PIDG Insulated Ring Terminal M5 Stud Size 12 AWG to 10 AWG Wire Size Yellow 324918

TE Connectivity 324918 PIDG Insulated Ring Terminal is a precision-engineered electrical connector designed for reliable and durable wire termination in industrial, electrical, and electronic applications.

This ring terminal features a high conductivity copper body with a copper sleeve around the barrel to support insulation and prevent wire fraying. The barrel includes serrations to deliver maximum contact and tensile strength post-crimping. A yellow nylon insulated sleeve provides easy wire size identification, improving operational efficiency.

Designed for use with wire sizes ranging from 12 AWG (2.6 mm²) to 10 AWG (6.6 mm²) and suitable for M5 stud sizes with a 5 mm inner ring diameter, this terminal can withstand operating temperatures up to 105°C. The construction meets RoHS compliance requirements, ensuring environmental safety.

Its robust design and reliable crimping capability make it suitable for diverse applications including instrumentation, control panels, power supplies, lighting systems, aerospace, transportation, lifting equipment, and appliances.

The specialized funnelled wire entry facilitates quick and accurate wire insertion, ideal for high-volume or high-speed assembly environments. Manufactured in the United States, the terminal guarantees quality and consistency for industrial and commercial use.

Constructed with a high conductivity copper body. Copper sleeve enhances wire insulation support and prevents fraying. Serrations in wire barrel ensure maximum contact and tensile strength. Yellow nylon insulation sleeve enables easy wire size identification.

Funnelled wire entry for straightforward wire insertion and crimping. Supports wire sizes from 12 AWG to 10 AWG. Designed for M5 stud size with inner and outer ring diameters of 5 mm and 7.92 mm respectively. Operates up to 105°C maximum temperature.

RoHS compliant for safety and environmental standards. Manufactured in the United States ensuring high quality.

This TE Connectivity PIDG Insulated Ring Terminal is ideal for industrial, laboratory, construction, automotive, aerospace, and electrical installation use cases. For further relevant products, browse the Ring Terminals category on EnvMart.
