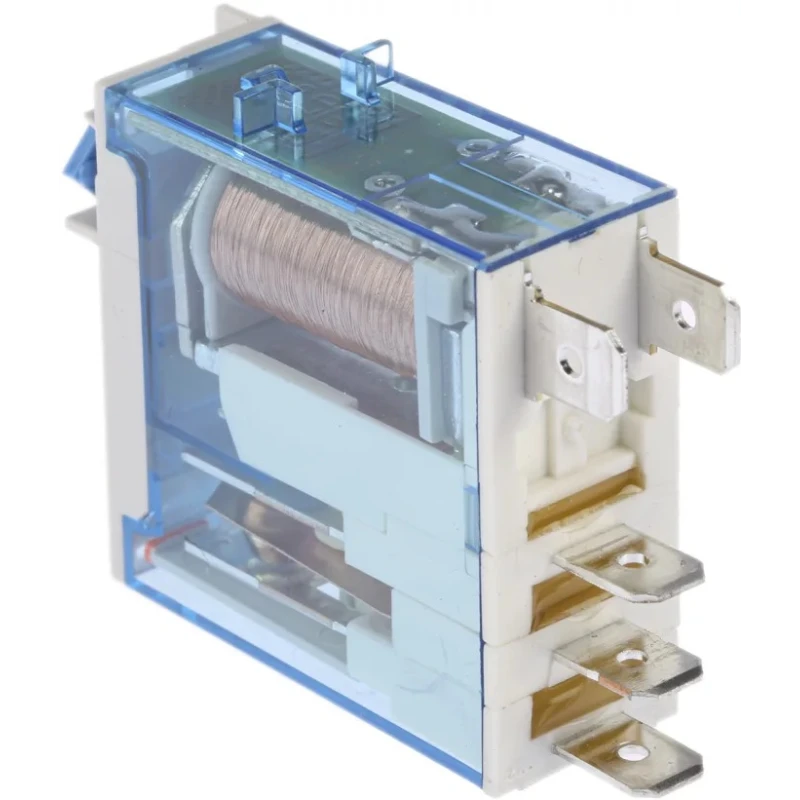

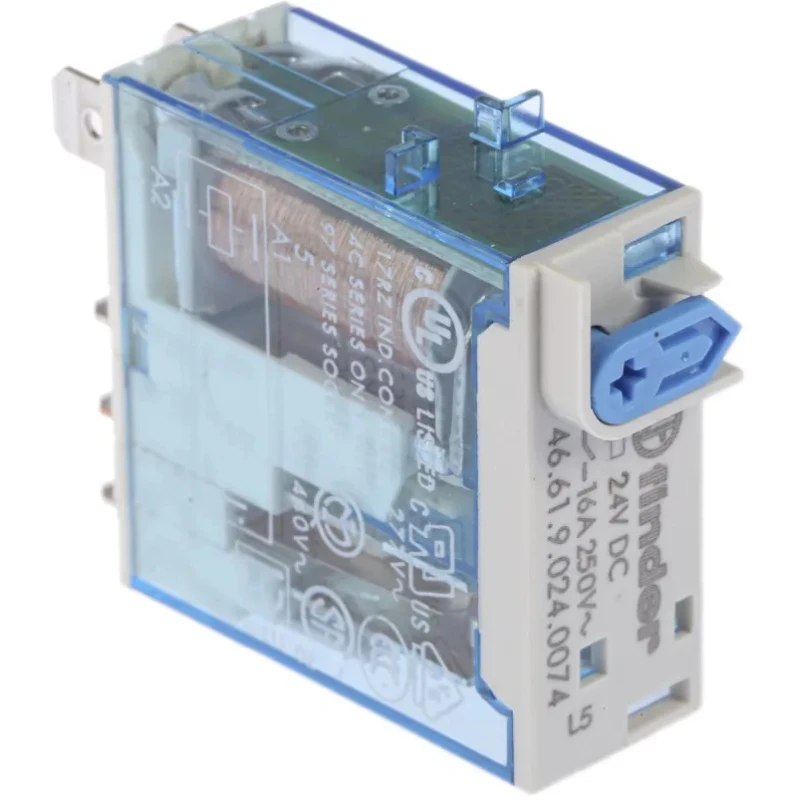

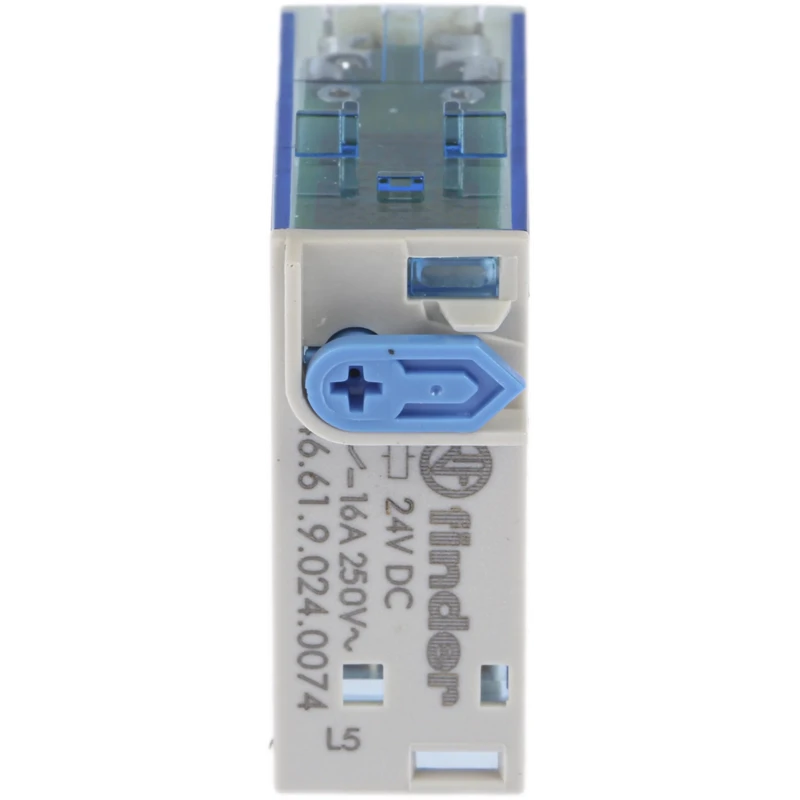

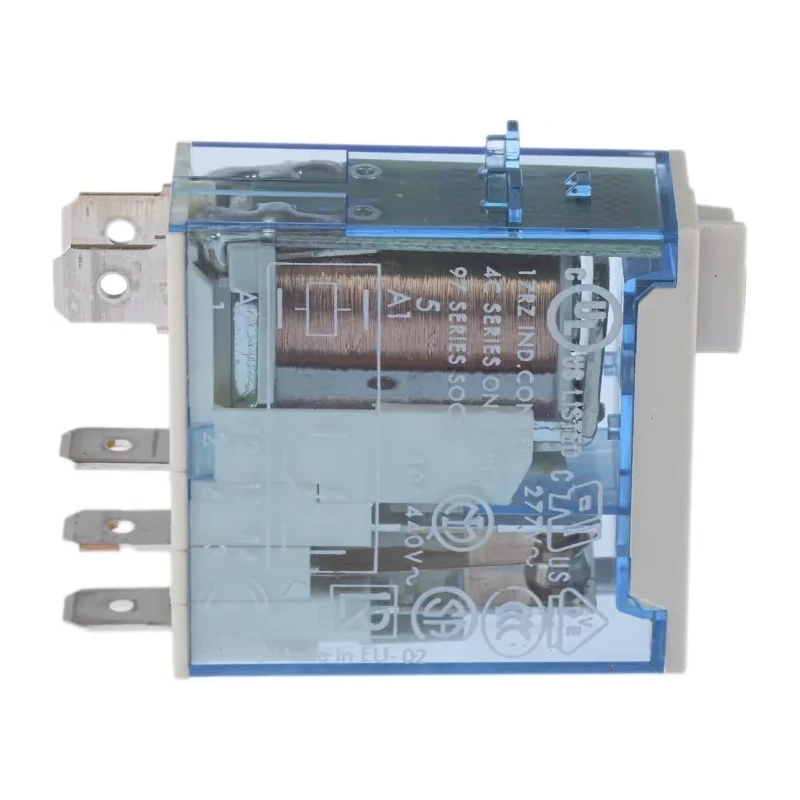

Finder Power Relay 24V DC Coil 16A Switching Current SPDT Contact Configuration 46 Series Model 46.61.9.024.0074
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | Finder |
| Height | 32.8mm |
| Length | 29mm |
| Width | 12.4mm |
| Contact Material | Silver Alloy |
| Series | 46 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Quick Connect |
| Standards/Approvals | EAC, CE |
| Coil Resistance | 1.2kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 500mW |
| Finder Relay, 24V dc Coil, 16A Switching Current, SPDTBrand | Finder |
| Omron Non-Latching Relay, 15A Switching CurrentBrand | Omron |
Key Features
- Operates at a coil voltage of 24V DC for efficient control.
- Single-pole double-throw (SPDT) contact configuration suits versatile switching needs.
- Supports switching current up to 16A for handling significant loads.
- Compact design with dimensions 29mm length, 12.4mm width, and 32.8mm height allows easy integration.
- Quick connect terminal type facilitates easy and secure installation.
- High voltage isolation rated at 6kV enhances operational safety.
- Durable silver alloy contact material ensures long-lasting conductivity.
- Operating temperature range from -40°C to 70°C supports diverse environmental conditions.
Product Description
Finder 46.61.9.024.0074 Power Relay is engineered for reliable automation, industrial, and electrical control applications. Equipped with a 24V DC coil and a robust 16A switching current capacity, this SPDT (Single-Pole Double-Throw) relay ensures consistent switching performance. Its compact design with precise dimensions (29mm length, 12.4mm width, and 32.8mm height) allows easy integration in constrained system spaces.
This relay features quick connect terminals for fast and secure installation, with a durable silver alloy contact material enhancing durability and conductivity. It supports an operating temperature range from -40°C up to 70°C, suitable for demanding environments. The device offers a voltage isolation rating of 6kV, contributing to enhanced safety during operation.
With a high switching power rating of 4kVA and an AC voltage rating of 250V, it accommodates a wide range of industrial and automation requirements. The plug-in mounting type allows for straightforward replacement and maintenance, making it an excellent choice for electrical, HVAC automation, manufacturing controls, and home automation systems.
Operates effectively at 24V DC coil voltage for reliable control. Single-Pole Double-Throw (SPDT) contact configuration supports versatile switching. Handles switching current up to 16A suitable for heavy load applications.
Quick connect terminals enable easy installation and connection. Compact size supports installation in limited spaces. Silver alloy contacts provide long-lasting performance and conductivity. Wide operating temperature range from -40°C to 70°C for varied environments.
High voltage isolation of 6kV ensures electrical safety and performance stability. Plug-in mounting type allows convenient replacement and maintenance.
Applications include motor and solenoid control, HVAC system automation, and various home automation projects. The model 46.61.9.024.0074 belongs to the Finder Series 46, recognized for quality and durability in power relay components.
