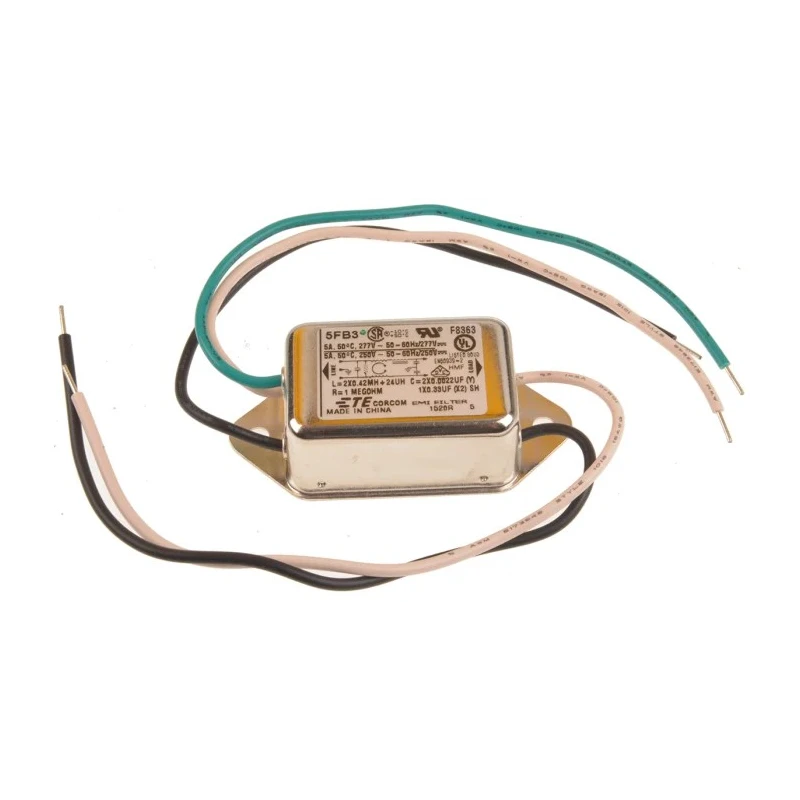

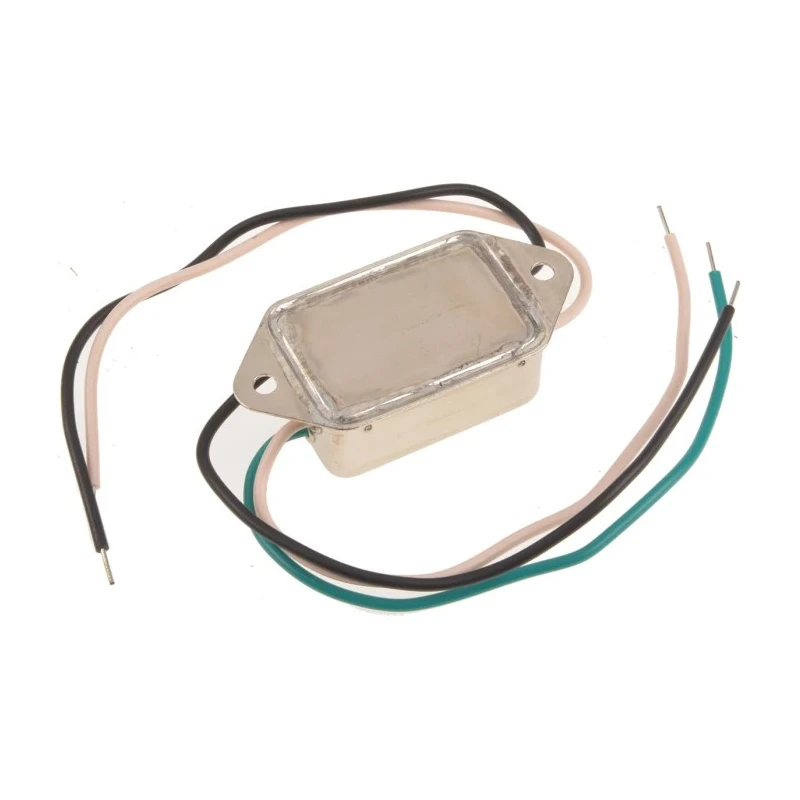

TE Connectivity Corcom FB Series Panel Mount RFI Power Line Filter 5A 277V AC/DC 50Hz 60Hz 9-1609095-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 36.1mm |
| Length | 76.2mm |
| Depth | 22.2mm |
| Mount Type | Panel Mount |
| Operating Frequency | 50, 60Hz |
| Series | Corcom FB |
| Maximum Operating Temperature | 50°C |
| Capacitance | 330nF |
| Minimum Operating Temperature | -10°C |
| Maximum Current | 5A |
| Number of Phases | 1 |
| Leakage Current | 280μA |
| Maximum Voltage | 277V ac/dc |
| Inductance | 440μH |
| Standards/Approvals | UL1283 |
| Termination Style | Wire |
Key Features
- Rated maximum current of 5A for versatile protection.
- Operates at voltages up to 277V AC/DC for varied power supplies.
- Designed for single-phase 50Hz and 60Hz frequency operation.
- Panel mount style with wire termination for convenient installation.
- Capacitance rating of 330nF ensures effective noise suppression.
- Compact dimensions enable installation in standard lighting tracks.
- Suitable for LED displays, fluorescent ballasts, and architectural lighting systems.
- Complies with UL1283 standards for power line filter safety.
Product Description
TE Connectivity 9-1609095-1 is a Corcom FB series panel mount RFI filter designed for professional EMI/RFI suppression in electronic equipment. This power line filter supports maximum current of 5A and can handle voltages up to 277V AC/DC at 50Hz or 60Hz, making it suitable for both AC and DC installations.
The compact design with panel mount and wire termination allows flexible integration into various lighting devices such as LED displays, fluorescent lamp ballasts, architectural and office lighting, outdoor signage, as well as lower current industrial and UV curing light applications.
The filter features a capacitance of 330nF and inductance of 440μH, providing excellent attenuation over frequencies from 100kHz to 30MHz. Leakage current is tightly controlled at 280μA to minimize power loss.
Its operating temperature range extends from -10°C to 50°C, suitable for typical working environments, and its UL1283 certification ensures compliance with stringent safety standards.
Rated maximum current of 5A. Maximum voltage of 277V AC/DC. Panel mount with wire termination. Single-phase operation at 50Hz and 60Hz. Capacitance of 330nF and inductance of 440μH. Leakage current of 280μA. Operating temperature: -10°C to 50°C.
Compact dimensions: Height 36.1mm, Length 76.2mm, Depth 22.2mm. UL1283 approved for power line filtering.
This TE Connectivity Corcom FB filter is ideal for industrial, commercial, laboratory, and HVAC applications requiring electromagnetic noise suppression on power lines. Its robust mechanical and electrical characteristics make it a dependable component for enhancing equipment performance and compliance.
Explore similar power line filters and EMI solutions in the Electronics & Electricals category at EnvMart for your industrial and commercial projects.
Explore more products in our EMI Filters category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this RFI power line filter is 5A.
It can handle voltages up to 277V AC/DC.
This model operates at single-phase frequencies of 50Hz and 60Hz.
The capacitance rating is 330nF, which ensures effective noise suppression.
The dimensions of the filter are 36.1mm in height, 76.2mm in length, and 22.2mm in depth.
The leakage current is tightly controlled at 280μA.
The operating temperature range extends from -10°C to 50°C.
The inductance value is 440μH, providing excellent attenuation over a wide frequency range.
This filter uses a panel mount style with wire termination for installation.
Yes, it complies with UL1283 standards for power line filter safety.
It is suitable for applications including LED displays, fluorescent ballasts, and architectural lighting systems.
This power line filter belongs to the Corcom FB series.
