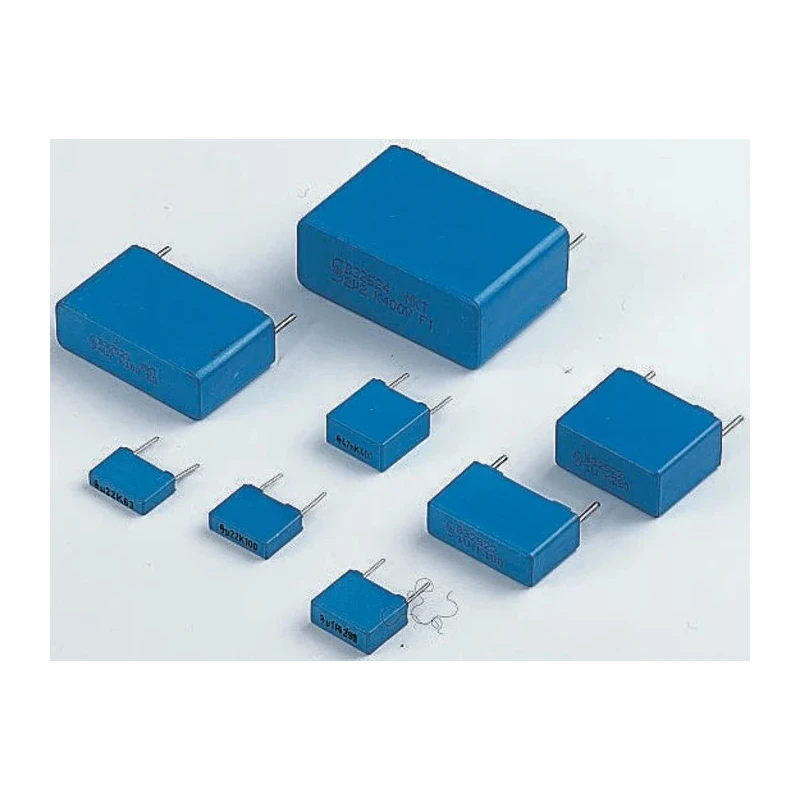

TDK B32520 Film Capacitor 150 nF 160V AC 250V DC Through Hole 2 Pin Polyester Dielectric B32520C3154K189

Free Delivery in India | Lowest Global Shipping Charges

TDK B32520 Film Capacitor 150 nF 160V AC 250V DC Through Hole 2 Pin Polyester Dielectric B32520C3154K189



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	10.5mm
Length	10mm
Model	B32520C3154K189
Width	5mm
Mount Type	Through Hole
Series	B32520
Maximum Operating Temperature	125°C
Capacitance	150nF
Standards/Approvals	UL, RoHS
Pin Count	2
Rated AC Voltage	160V ac
Rated DC Voltage	250V dc
Lead Pitch	7.5mm
Lead Diameter	0.5mm
Dielectric	Polyethylene Terephthalate (Polyester)
Automotive Standard	AEC-Q200 Rev D

Key Features

Dielectric material is Polyethylene Terephthalate (Polyester) for reliable performance.
Rated AC voltage of 160V and rated DC voltage of 250V for versatile applications.
Lead pitch of 7.5 mm and lead diameter of 0.5 mm compatible with standard through-hole PCB assembly.
Maximum operating temperature of 125°C supports demanding industrial environments.
Meets automotive standard AEC-Q200 Rev D and complies with UL and RoHS standards.
High pulse strength and high contact reliability ensure stable and durable operation.

Product Description

TDK B32520C3154K189 film capacitor is a high-quality passive electronic component designed for industrial, automotive, and commercial applications requiring stable capacitance and reliable voltage handling.

This film capacitor utilizes a polyethylene terephthalate (polyester) dielectric construction, providing excellent electrical insulation and mechanical stability. It supports a rated AC voltage of 160V and a rated DC voltage of 250V suitable for a variety of circuit requirements.

The through-hole mount design with a lead pitch of 7.5 mm and pin count of 2 pins facilitates easy integration into printed circuit boards with standard spacing. Its small form factor and plastic case with UL 94 V-0 epoxy resin sealing guarantee safe and space-efficient installation.

Operationally robust, it withstands maximum operating temperatures up to 125°C and meets automotive quality requirements under AEC-Q200 Rev D specification. Compliance with UL and RoHS ensures use in various regulated environments, emphasizing safety and environmental responsibility.

Commonly deployed in electronic circuits, power supply filtering, signal coupling, and noise suppression, this capacitor is an essential component in industrial machines, automotive electronic systems, telecommunications, and consumer electronic devices.

Dielectric material is Polyethylene Terephthalate (Polyester) for reliable performance. Rated AC voltage of 160V and rated DC voltage of 250V for versatile applications. Lead pitch of 7.5 mm and lead diameter of 0.5 mm compatible with standard through-hole PCB assembly.

Maximum operating temperature of 125°C supports demanding industrial environments. Compact dimensions: length 10 mm, width 5 mm, height 10.5 mm allow easy mounting and space-saving. Meets automotive standard AEC-Q200 Rev D and complies with UL and RoHS standards.

High pulse strength and high contact reliability ensure stable and durable operation. EnvMart provides a comprehensive selection of Film Capacitors including the TDK B32520 series, ideal for enhancing your electronic component inventory.
