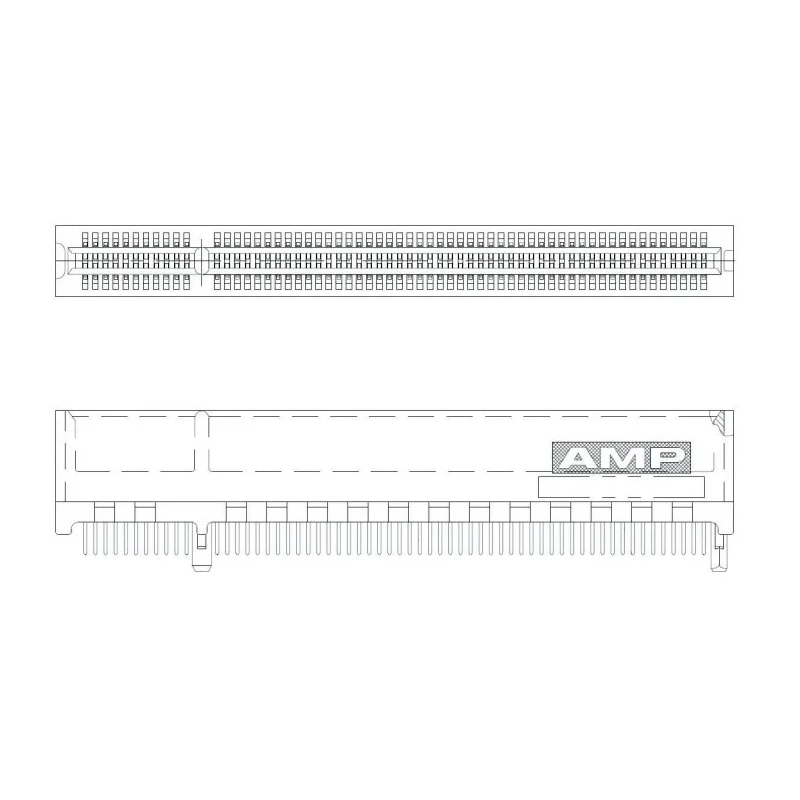

TE Connectivity PCI & PCIe Series Straight Edge Connector 120 Contacts 1.27 mm Pitch 2 Row Through Hole Solder 1-5145154-2

TE Connectivity 1-5145154-2 PCI & PCIe Series Straight Edge Connector is a high-quality Edge Connector featuring 120 contacts arranged in 2 rows with a 1.27 mm pitch. This connector is designed primarily for PCI applications, offering a straight orientation and through hole mount type that ensures reliable and secure PCB installation.

The connector housing is manufactured from durable thermoplastic, while the contacts utilize phosphor bronze material with gold plating over a nickel base, ensuring excellent conductivity and corrosion resistance. Rated for a current of 1A and voltage of 203V AC, it operates effectively across a wide temperature range from -55°C to 85°C, making it suitable for varied industrial and commercial electronic environments.

This female contact connector features solder termination, supporting robust mechanical and electrical connections. Its keying ensures correct mating, enhancing system reliability and preventing connection errors.

Commonly used within industrial, laboratory, manufacturing, and commercial computing equipment, this PCI & PCIe series connector facilitates secure and efficient connectivity for PCI bus interfaces. Its through hole mount design provides stability and ease of integration into printed circuit boards.

Key features include its thermoplastic housing, two-row 120-contact layout, and precise 1.27 mm pitch, which are essential for modern electronic connector requirements. This connector is a proven component for enhancing electrical assemblies and electronic system performance.

Constructed with a thermoplastic housing for durability. Contacts are made of phosphor bronze with gold plating over nickel for reliable connectivity. Rated for 1A current and 203V AC voltage operation. Designed for solder termination and female contact gender.

Operates within a temperature range of -55°C to 85°C. Features keying to prevent incorrect mating. Suitable for PCI PCB mount card edge applications. Compliant with PCI & PCIe series standards, providing high performance in electronic assemblies.

Provides secure mounting with through hole pin configuration. Explore EnvMart’s extensive catalog for more TE Connectivity electronic components and connectors designed to meet diverse industrial needs.
