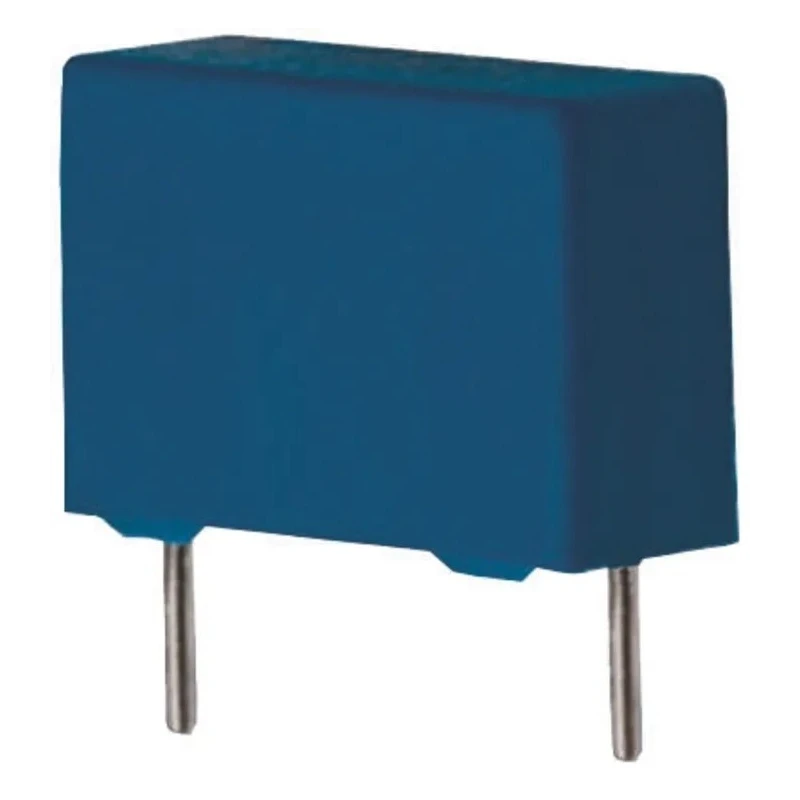

TDK Film Capacitor 470 nF 330V AC 330 V DC Through Hole B32913A3474M189

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor 470 nF 330V AC 330 V DC Through Hole B32913A3474M189



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	18.5mm
Length	26.5mm
Model	B32913A3474M189
Width	10.5mm
Mount Type	Through Hole
Series	B32913
Maximum Operating Temperature	110°C
Capacitance	470nF
Standards/Approvals	UL, RoHS
Pin Count	2
Rated AC Voltage	330V ac
Rated DC Voltage	330V dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Suppression Class	X1
KEMET PHE844 Film Capacitor X1, ±20 %, 470 nF 440V ac, Through HoleBrand	KEMET

Key Features

The capacitor features a suppression class of X1 suitable for EMI suppression.
It has a lead pitch of 22.5 mm and pin count of 2 for through hole mounting.
The capacitor operates reliably up to a maximum temperature of 110°C.
Physical dimensions include length of 26.5 mm, width of 10.5 mm, height of 18.5 mm, and lead diameter of 0.8 mm.
Complies with UL and RoHS standards ensuring suitability for industrial and commercial applications.
Encapsulated in a plastic case with epoxy resin sealing rated UL 94 V-0, providing self-healing properties and durability.
Designed for "across the line" applications in EMI suppression circuits.
Not recommended for use in positions where capacitor failure could cause electric shock due to X class rating.

Product Description

TDK B32913A3474M189 Film Capacitor is a high-quality passive electronic component designed for EMI suppression and "across the line" AC mains applications at 330V AC and 330 V DC ratings. It features a 470 nF capacitance value and supports through hole mounting with a lead pitch of 22.5 mm. Its robust plastic case and epoxy resin sealing (UL 94 V-0) provide excellent durability and self-healing characteristics.

This capacitor belongs to the B32913 series, known for very small dimensions and high reliability in industrial and laboratory environments. With pin count of 2 and lead diameter of 0.8 mm, it fits standard through hole footprints.

The component operates safely up to 110°C maximum temperature and complies with UL and RoHS standards, making it suitable for use in industrial, electronic manufacturing, HVAC, and power supply filtering applications.

The suppression class X1 means it is designed for connection directly across mains supply but it is not safe for use in situations where failure can expose hazardous electric shock risk.

Dimensionally, the capacitor measures 26.5 mm in length, 10.5 mm in width, and 18.5 mm in height, making it compact for printed circuit board designs. The capacitor has a capacitance of 470 nF. Rated AC Voltage: 330 V ac.

Rated DC Voltage: 330 V dc. Suppression class: X1. Lead pitch: 22.5 mm. Maximum operating temperature: 110°C. Encapsulation: Plastic case with epoxy resin sealing UL 94 V-0. Compliance: UL and RoHS certified.

This TDK Film Capacitor is ideal for engineers and designers requiring reliable EMI suppression components for power electronics, industrial automation, and commercial electrical equipment. Explore the full lineup of precision capacitors to meet diverse project needs with EnvMart’s electronics category.
