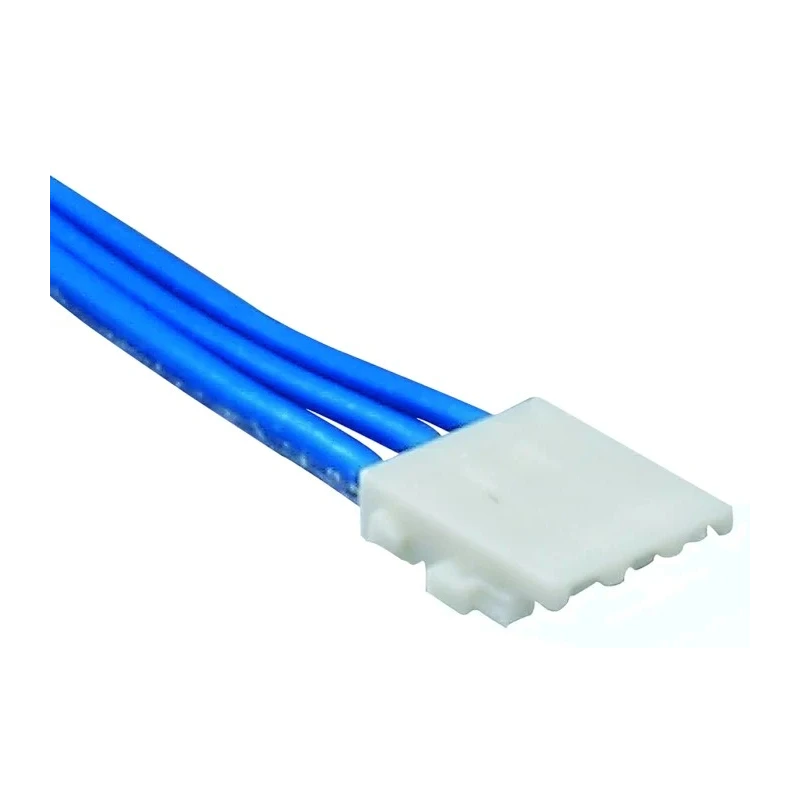

Hirose DF57 Female Connector Housing 1.2 mm Pitch 6 Way 1 Row Straight
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 8.3mm |
| Model | DF57 |
| Width | 1.2mm |
| Mount Type | Surface |
| Housing Material | Nylon |
| Series | DF57 |
| Number of Rows | 1 |
| Pitch | 1.2mm |
| For Use With | DF57H Connector |
| Number of Contacts | 6 |
| Connector Gender | Female |
Key Features
- The reinforced swing lock design provides secure cable retention.
- Double locking mechanism enhances connection stability and reliability.
- Insert key guides assist in accurate mating alignment, reducing mismating risk.
- Low profile mating height of 1.4 mm supports compact electronic assemblies.
- Compatible with wire sizes ranging from 34 AWG to 26 AWG.
- Made of durable nylon housing material for long-lasting performance.
- Surface mount type with straight orientation suitable for DF57H connectors.
- Ideal for applications including LED drivers, digital cameras, notebooks, and tablets.
Product Description
Hirose DF57H-6S-1.2C female connector housing features a 1.2 mm pitch and 6 contacts in a single row with straight orientation and surface mount design. This nylon housing uses a reinforced swing lock double locking mechanism to ensure secure cable retention and reliable electrical connections in compact spaces.
The swing lock design integrates positive and friction locks, ensuring a tactile click upon mating for user confidence. Insert key guides facilitate accurate alignment to prevent connector damage due to mismating. The housing accommodates wire sizes from 34 AWG to 26 AWG, suitable for fine pitch PCB applications.
The connector assembly achieves a low profile mating height of 1.4 mm, making it ideal for tight electronic enclosures such as LED lighting drivers, digital still and video cameras, notebook PCs, and tablet PCs where reliable signal and power connections are essential.
Constructed with robust nylon material and designed for surface mounting, this DF57 series female housing is engineered to meet demanding industrial and consumer electronics requirements without sacrificing durability or ease of use.
Features include:. Reinforced swing lock design offering secure cable retention. Unique double locking mechanism to prevent disconnection. Insert key guides for precise connector mating. Low profile height for compact electronic designs.
Wide wire compatibility from 34 AWG to 26 AWG. Durable nylon housing for extended reliability. Surface mount with straight orientation for flexible use. Ideal for industrial, laboratory, consumer electronics, and lighting applications.
This product provides engineers and technicians with an efficient connector housing solution that combines mechanical robustness, user-friendly features, and precise electrical specifications. It supports a wide range of electronic manufacturing use cases including PCB assembly, LED lighting fixtures, digital imaging devices, and portable computing equipment.
Explore further components and Connector Housings in the Electronics Components category on EnvMart for complete application solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hirose DF57 female connector housing has a pitch of 1.2 mm and features 6 contacts in a single row.
This model supports surface mounting with a straight orientation, making it suitable for various electronic applications.
It accommodates wire sizes ranging from 34 AWG to 26 AWG, allowing for flexibility in different applications.
The housing is constructed from durable nylon, designed to provide long-lasting performance in various environments.
The connector housing has a length of 8.3 mm and a width of 1.2 mm, making it compact for tight spaces.
It is ideal for applications such as LED drivers, digital cameras, notebooks, and tablets, where reliable connections are essential.
It features a reinforced swing lock design with a double locking mechanism that enhances connection stability and reliability.
The low profile mating height of this housing is 1.4 mm, which supports compact electronic assemblies.
Yes, this housing is designed for use with DF57H connectors, ensuring compatibility and performance.
Insert key guides are incorporated to facilitate accurate mating alignment and reduce the risk of mismating.
The country of origin for this connector housing is India.
This model belongs to the DF57 series, which includes various configurations and options for connector housings.
