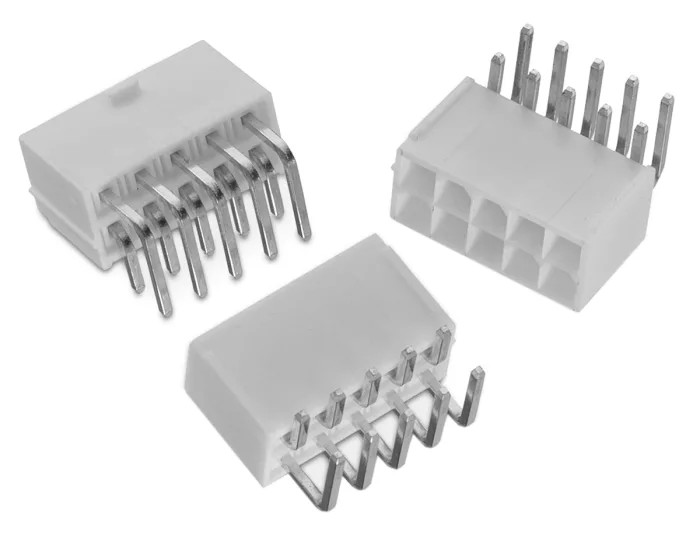

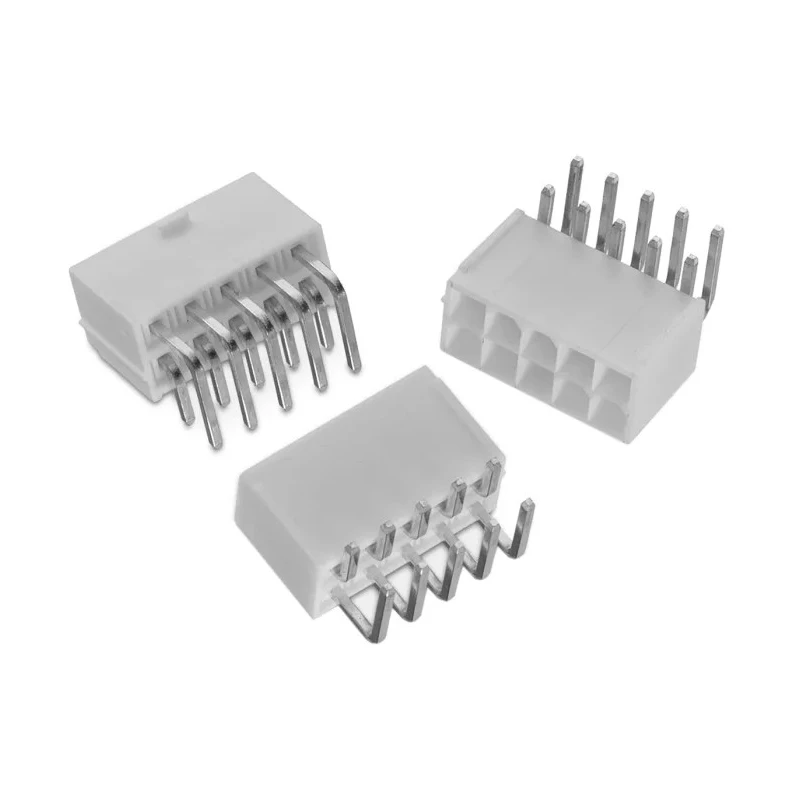

Wurth Elektronik WR-MPC4 Series Right Angle Through Hole PCB Header 10 Contacts 4.2 mm Pitch 2 Row Shrouded MPC4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Wurth Elektronik |
| Orientation | Right Angle |
| Current | 69A |
| Model | MPC4 |
| Mount Type | Through Hole |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | WR-MPC4 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 10 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.6mm |
Key Features
- Features a durable polyamide housing with UL94-V0 white nylon 66 insulation.
- Supports a current rating of 69A and voltage rating of 600V.
- Male copper alloy contacts are tin plated for efficient conductivity and solder termination.
- Designed for through hole mounting in wire-to-board connector systems.
- Operates reliably in temperatures ranging from -40°C to 105°C.
- Tail pin length measures 3.6 mm ensuring secure PCB connection.
- Pitch between pins is 4.2 mm with dual row layout for compact design.
- Right angle orientation supports versatile PCB mounting options.
Product Description
Wurth Elektronik MPC4 Series Right Angle Through Hole PCB Header MPC4 offers a high-quality dual row male PCB connector with 10 contacts spaced at 4.2 mm pitch. This shrouded connector features a polyamide housing rated UL94-V0 and tin plated copper alloy contacts optimized for solder termination in wire-to-board applications.
It is engineered to handle currents up to 69 amperes and voltages of 600 volts, suitable for reliable industrial, electronic, and commercial electrical assembly tasks. The right angle orientation and 2-row configuration allow flexible PCB mounting and compact designs in electrical components.
The connector operates effectively across a wide temperature range of -40°C to 105°C, ensuring durability and performance in varied environments. Contact tail pins measure 3.6 mm to facilitate robust solder connections.
The shrouded design enhances the protection of contacts from mechanical damage and ensures precise mating with female dual row receptacle housings from the WR-MPC4 series. Durable polyamide housing with flame retardant UL94-V0 rating.
Tin plated copper alloy male contacts for excellent conductivity. Dual row right angle mount configuration for space saving PCB layout. Rated for 69A current and 600V voltage for industrial reliability. Wide operating temperature of -40°C to 105°C for harsh conditions.
Solder termination type for secure and reliable PCB connection. Contact pitch 4.2 mm with 10 contacts for versatile wiring. Shrouded connector system improves contact safety and alignment.
This PCB header connector is ideal for applications in electronics manufacturing, industrial automation, power supplies, and instrumentation. Its mechanical and electrical specifications meet demanding industrial standards, enabling reliable and safe board-to-wire connections.
Explore more Wurth Elektronik connectors and related components at EnvMart for efficient procurement of electronic assembly parts.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 69A and a voltage rating of 600V.
It features a pitch of 4.2 mm and has 10 contacts in a dual row configuration.
The housing is made of polyamide, and the contacts are male copper alloy with tin plating for conductivity.
It operates reliably within a temperature range of -40°C to 105°C.
It uses a solder termination type for secure and reliable connections.
The tail pin length measures 3.6 mm, ensuring a secure PCB connection.
This model is designed for through hole mounting in wire-to-board connector systems.
It features a right angle orientation, allowing for flexible PCB mounting options.
This connector is shrouded, which enhances contact protection and alignment during mating.
It is suitable for applications in electronics manufacturing, industrial automation, power supplies, and instrumentation.
The country of origin for this PCB header is India.
This model belongs to the WR-MPC4 series of connectors.
