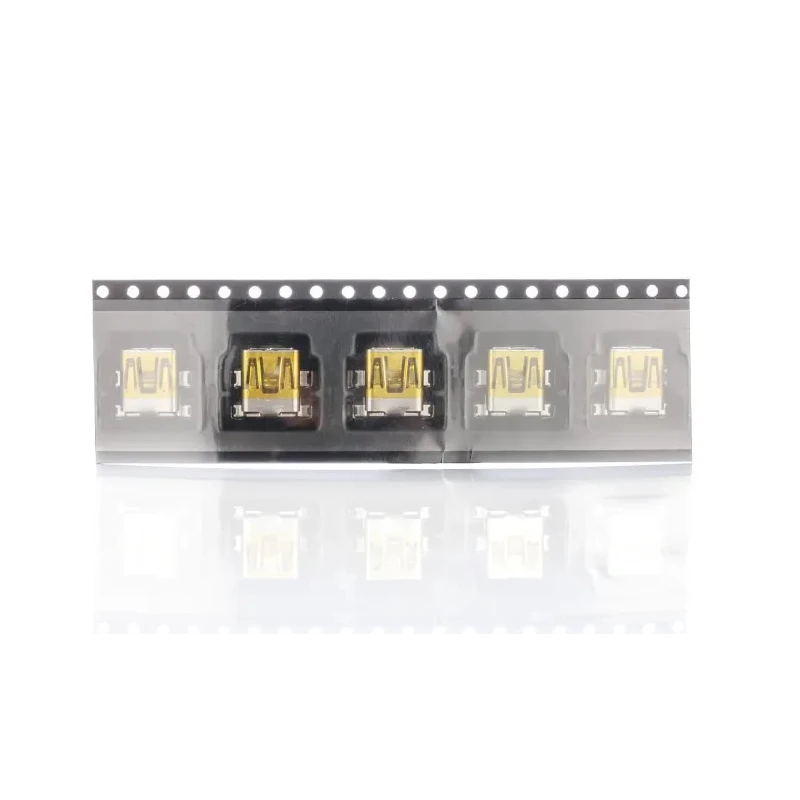

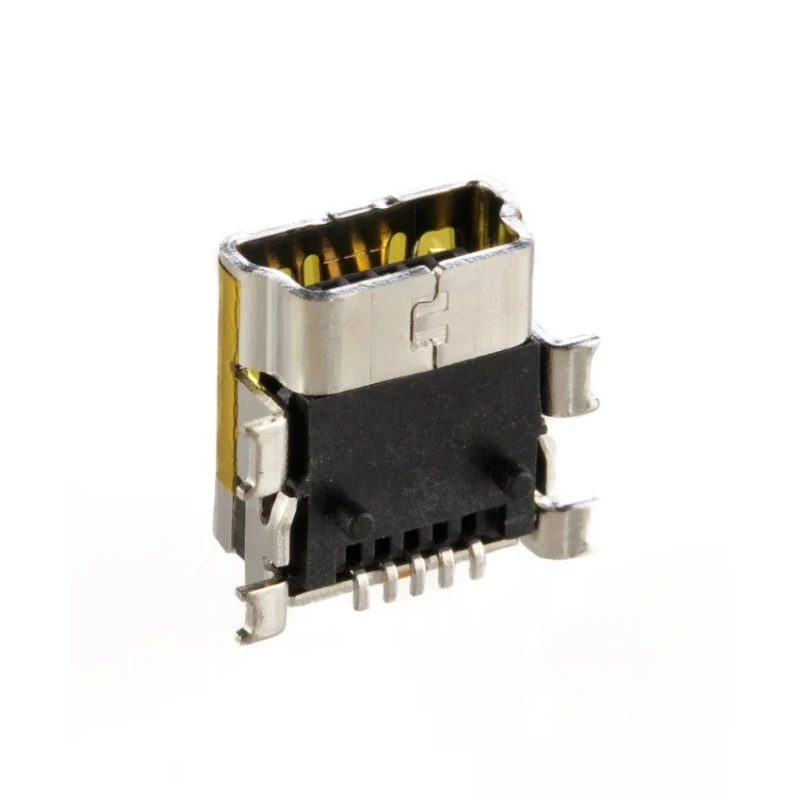

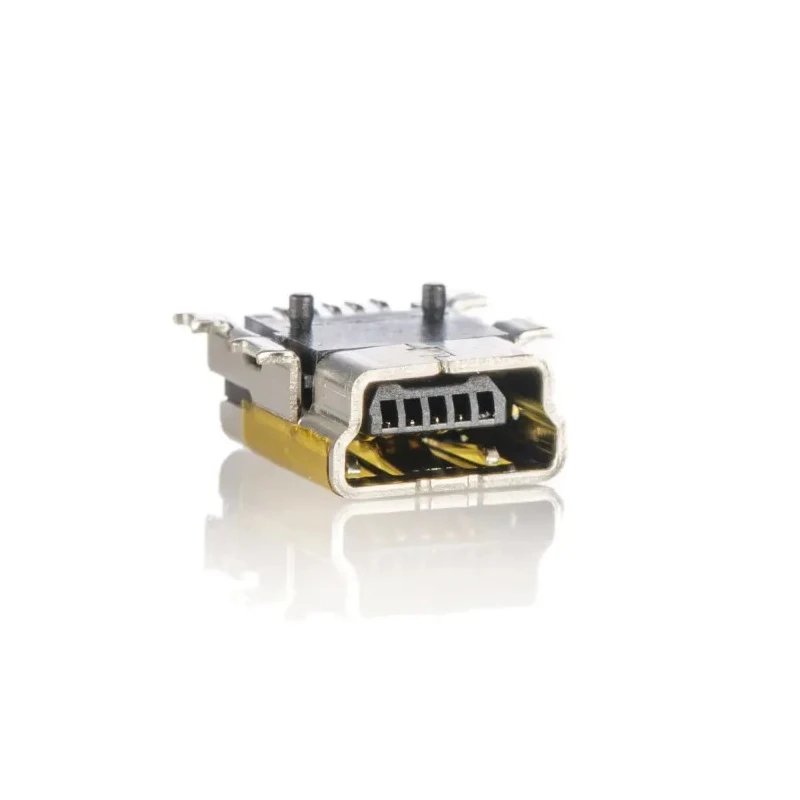

Molex Right Angle Surface Mount Female Mini USB Type B Connector USB 2.0 1A 30V 67503-1020

Free Delivery in India | Lowest Global Shipping Charges

Molex Right Angle Surface Mount Female Mini USB Type B Connector USB 2.0 1A 30V 67503-1020

Name: Molex Right Angle Surface Mount Female Mini USB Type B Connector USB 2.0 1A 30V 67503-1020
Brand: Molex
SKU: 204272
Price: 0.82 USD
Availability: InStock



Category USB Connector Brand Molex Condition New

Specifications

Country of Origin	China
Voltage	30V
Brand	Molex
Orientation	Right Angle
Current	1A
Mount Type	Surface
Contact Material	Copper Alloy
Series	On-The-Go
Number Of Ports	1
Termination Type	Solder
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Interfaces	USB won't add weight to delicate electronic components
USB Type	Mini USB Type B
Connector Gender	Female
USB Specification	USB 2.0

Key Features

Operates at USB 2.0 standard with data rates up to 480 Mbps.
Rated for 1A current and 30V voltage for reliable electronic connections.
Right angle orientation optimizes space on printed circuit boards.
Surface mount technology with solder termination ensures secure installation.
Gold-plated copper alloy contacts improve conductivity and durability.
Functional in temperatures ranging from 0°C to 50°C for versatile use.
5-pin design minimizes required mounting space making device design compact.
Ideal for connections of peripherals like keyboards and mice in commercial and domestic equipment.

Product Description

Molex 67503-1020 is a Right Angle Surface Mount Female Mini USB Type B Connector compliant with USB 2.0 specification. It supports high-speed data transfer at 480 Mbps while maintaining compact size and reliable connections for modern electronic and automotive applications.

The connector features a gold-plated copper alloy shell ensuring excellent conductivity and long-term durability. Its right-angled design and surface mount solder termination facilitate easy PCB mounting while reducing space requirements.

With a current rating of 1A and voltage rating of 30V, it suits various commercial, industrial, and domestic electronic devices. Operating temperature ranges from 0°C to 50°C allow usage in different ambient conditions.

The five-pin pitch design provides versatility and excellent resistance to electromagnetic and radio frequency interferences (RFI/EMI), maintaining signal clarity and transfer reliability.

Operates under USB 2.0 standard, enabling data speeds of up to 480 Mbps. Compact design with surface mount technology for space-saving PCB integration. Gold-plated contacts for superior signal transmission and corrosion resistance.

Right angle orientation optimizes electronic board layouts. Rated for 1A current and 30V voltage, suitable for varied electronic equipment. Temperature range of 0°C to 50°C supports reliable performance in multiple environments.

Ideal for automotive panel connections and peripheral computer devices. This connector is manufactured in China and forms part of Molex's On-The-Go (OTG) series, well suited for portable and mobile equipment requiring USB connectivity.
