Toshiba 4 2-Input NOR Logic Gate with CMOS Input, 14-Pin SOP Package TC4001BF(N,F)

Free Delivery in India | Lowest Global Shipping Charges

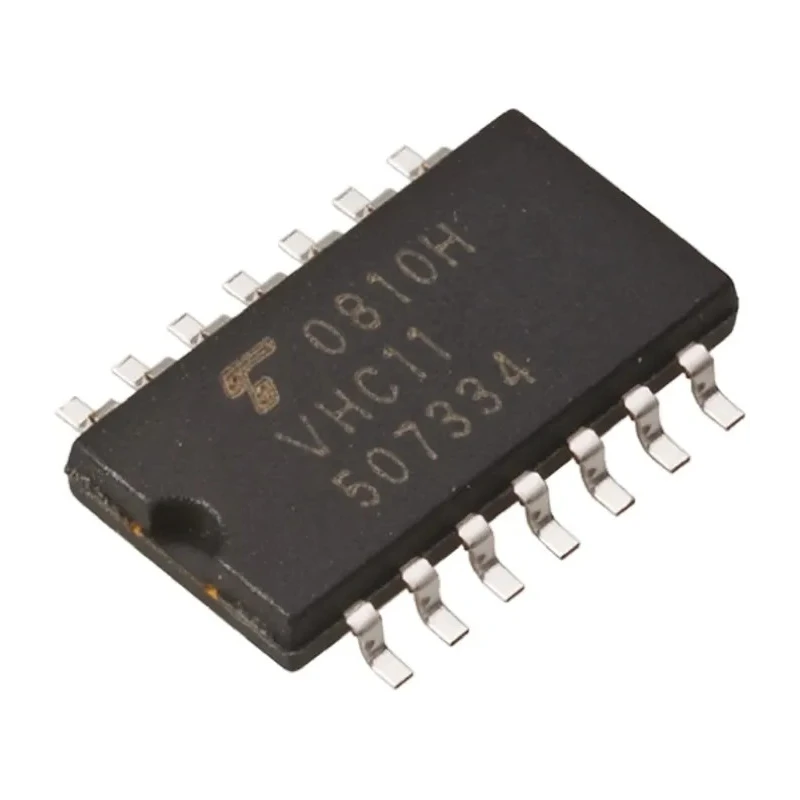

Toshiba 4 2-Input NOR Logic Gate with CMOS Input, 14-Pin SOP Package TC4001BF(N,F)

Name: Toshiba 4 2-Input NOR Logic Gate with CMOS Input, 14-Pin SOP Package TC4001BF(N,F)
Brand: Toshiba
SKU: 203741
Price: 0.42 USD
Availability: InStock



Category Logic Gate Brand Toshiba Condition New

Specifications

Country of Origin	Japan
Brand	Toshiba
Height	1.5mm
Length	10.8mm
Model	TC4001BF(N,F)
Mount Type	Surface
Output type	Buffer
Input Type	CMOS
Maximum Operating Temperature	85°C
Package Type	SOP
Minimum Operating Temperature	-40°C
Pin Count	14
Number of Elements	4
Maximum Supply Voltage	18V
Logic Family	4000
Logic Function	NOR
Minimum Supply Voltage	3V
Maximum High Level Output Current	-4mA
Maximum Propagation Delay Time @ CL	80ns
Maximum Low Level Output Current	4mA
Number of Inputs per Gate	2

Key Features

Features four independent 2-input NOR gates in a single SOP package.
Operates within a supply voltage range of 3V to 18V.
Propagation delay time is 80ns at the specified load conditions.
Designed with a maximum operating temperature of 85°C and minimum of -40°C.
Utilizes CMOS technology for improved performance and low power consumption.
Maximum high-level output current is -4mA; maximum low-level output current is 4mA.
Supplied in a compact 14-pin Small Outline Package (SOP) measuring 10.8mm in length and 1.5mm in height.
Ideal for digital logic control and processing in industrial, consumer, and communication electronics.

Product Description

Toshiba TC4001BF(N,F) is a 4 2-Input NOR Logic Gate integrated circuit, featuring CMOS input technology and packaged in a 14-pin SOP form factor. It belongs to the 4000 logic family series, designed for digital logic applications requiring reliable NOR gate functionality.

The device contains four separate NOR gates, each with two inputs. It supports a supply voltage range from 3V to 18V, allowing flexible integration within various electronic systems. The maximum propagation delay time is 80 nanoseconds under the specified capacitive load, ensuring timely signal processing.

Operating temperatures range from -40°C to 85°C, making it suitable for industrial and commercial environments. The maximum high-level output current is -4mA while the maximum low-level output current is 4mA, typical for CMOS devices, balancing performance and power efficiency.

The 14-pin Small Outline Package (SOP) offers a compact footprint with dimensions of 10.8mm in length and 1.5mm in height, supporting surface mount technology (SMT). This package facilitates easy mounting on printed circuit boards in automated manufacturing.

This NOR gate IC is widely used in electronic design for logic control, timing circuits, combinational logic, and other digital processing tasks in industrial electronics, instrumentation, and consumer applications.

Four independent 2-input NOR gates integrated in SOP package. Wide operating voltage from 3V to 18V for versatile system integration. Propagation delay time of 80ns at capacitive load for rapid switching. Industrial grade temperature range from -40°C to 85°C for harsh environments.

Low power CMOS input technology for energy-efficient operation. Compact 14-pin SOP package measuring 10.8 x 1.5 mm supports SMT. Ideal for industrial, consumer, and communication electronics logic applications. Explore more Toshiba semiconductor components and Logic Gates at EnvMart for reliable performance in your electronic projects and industrial designs.
