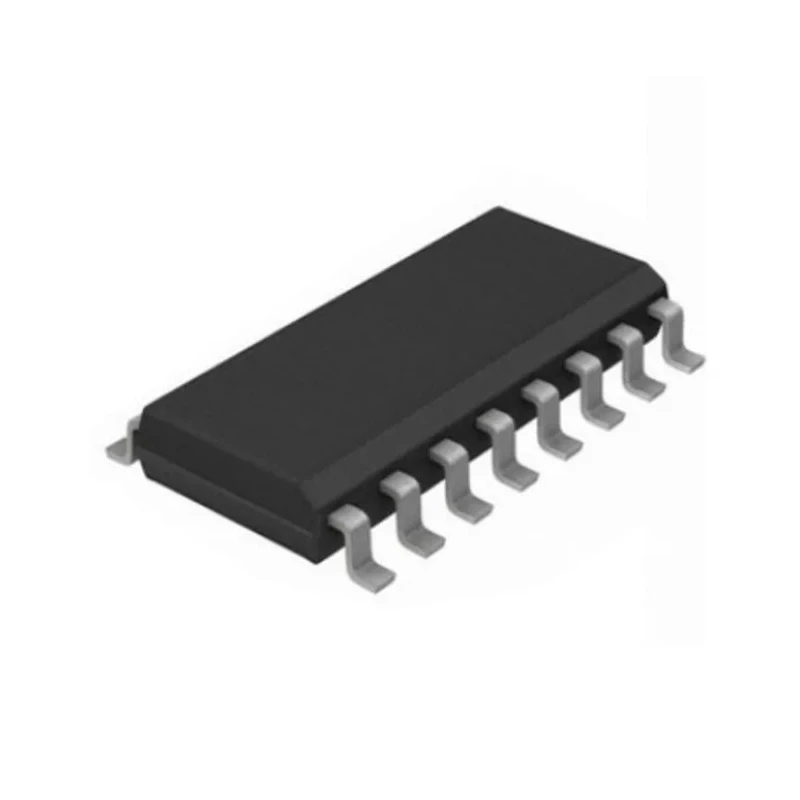

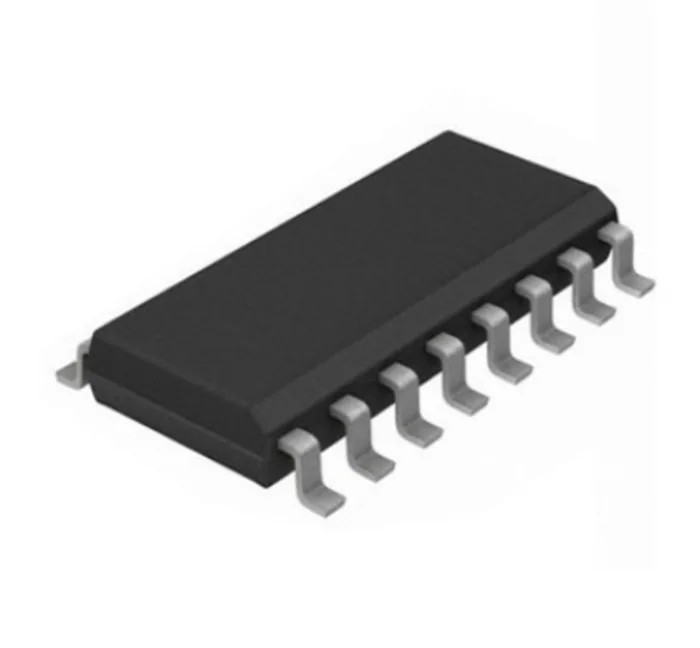

Toshiba 4-Channel Photocoupler Surface Mount, 16-Pin SO Package TLP293-4(GB-TP,E(T

Free Delivery in India | Lowest Global Shipping Charges

Toshiba 4-Channel Photocoupler Surface Mount, 16-Pin SO Package TLP293-4(GB-TP,E(T

Name: Toshiba 4-Channel Photocoupler Surface Mount, 16-Pin SO Package TLP293-4(GB-TP,E(T
Brand: Toshiba
SKU: 174544
Price: 3.04 USD
Availability: InStock



Category Optocouplers Brand Toshiba Condition New

Specifications

Country of Origin	India
Brand	Toshiba
Model	TLP293-4(GB-TP,E(T
Packaging	SMD
Mount Type	Surface
Output type	Transistor
Series	TLP
Maximum Operating Temperature	125°C
Package Type	SO
Minimum Operating Temperature	-55°C
Maximum input current	50mA
Number Of Channels	4
Maximum Forward Voltage	1.4V
Number of Pins	16
Typical Rise Time	1.5μs
Typical Fall Time	35μs

Key Features

Features four independent IR-coupled phototransistor channels for signal isolation.
Suitable for use in PLCs and switching power supplies with high isolation voltage of 3750 Vrms.
Operates over a wide temperature range from -55°C to 125°C.
Fast switching with typical rise time of 1.5 microseconds and fall time of 35 microseconds.
Supports maximum input current up to 50 mA and maximum forward voltage of 1.4V.
Compliant with EN 60747-5-5, RoHS, EN 62368-1, and VDE standards.
Surface mount packaging and 16-pin SO form factor facilitates automatic assembly.

Product Description

The Toshiba TLP293-4(GB-TP,E(T is a high-performance 4-channel photocoupler designed for industrial and electronic applications requiring reliable optical isolation. It incorporates four phototransistor channels optically coupled to infrared emitting diodes housed in a small surface mount 16-pin SO package, enabling compact and efficient PCB layouts.

Intended for use in programmable logic controllers (PLCs), industrial switching power supplies, and other control circuitry, this device ensures electrical isolation between input and output to protect sensitive components. The device supports a high isolation voltage of 3750 Vrms, meeting safety and reliability requirements in industrial environments.

Featuring a maximum input forward voltage of 1.4 V and maximum input current of 50 mA, the TLP293-4 offers reliable signal transmission with fast response times, including a typical rise time of 1.5 microseconds and fall time of 35 microseconds. It operates seamlessly over a broad temperature range from -55°C up to 125°C, accommodating harsh operating conditions.

The photocoupler package is designed for surface mounting (SMD) in a standard 16-pin SO form, facilitating automated assembly in high volume manufacturing processes. Compliance with EN 60747-5-5, RoHS, EN 62368-1, and VDE standards supports environmental safety and quality assurance.

Four IR-coupled phototransistor channels for reliable isolation. High isolation voltage rating of 3750 Vrms for enhanced safety. Wide operating temperature range from -55°C to 125°C. Fast switching times with typical rise time of 1.5μs and fall time of 35μs.

Surface mount SO16 package for space-efficient PCB layouts. Low forward voltage of 1.4 V with max input current of 50 mA. Compliance with international safety and environmental standards.

This component is suitable for industrial automation, power supply circuits, signal isolation, and protection in electronic devices. Its robust design and compact footprint make it a versatile choice for manufacturing and laboratory applications requiring high reliability optical isolation.

Explore more electronics and optoelectronic components at EnvMart for your industrial and manufacturing needs.

Explore more products in our Optocouplers category.
