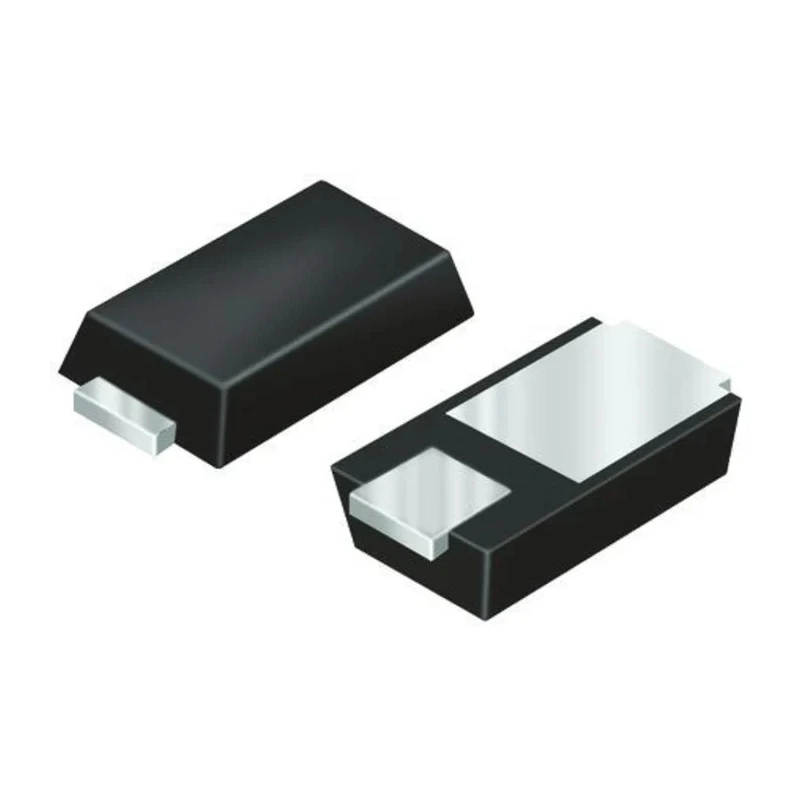

Toshiba 30 V 1 A Schottky Diode 2-Pin S-FLAT CRS10I30A(TE85L,QM
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Toshiba |
| Height | 0.98mm |
| Length | 2.6mm |
| Model | CRS10I30A(TE85L,QM |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | CRS10I30A |
| Maximum Operating Temperature | 150°C |
| Package Type | S-FLAT |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 60μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 20A |
| Maximum Forward Voltage Vf | 390mV |
Key Features
- Surface mount type in compact S-FLAT package.
- Maximum continuous forward current of 1 ampere.
- Peak reverse repetitive voltage rated at 30 volts.
- Low forward voltage drop of 390 mV for efficient performance.
- Supports peak non-repetitive forward surge current up to 20 amperes.
- Operating temperature up to 150 degrees Celsius ensures high reliability.
- 2-pin configuration suitable for various electronic applications.
- Manufactured in Malaysia adhering to quality standards.
Product Description
Toshiba CRS10I30A(TE85L,QM Schottky Diode 2-Pin S-FLAT is a reliable surface-mount diode designed for efficient power management and protection in electronic circuits. It offers a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 30 V, making it suitable for a variety of semiconductor applications.
The device is housed in a compact S-FLAT package with physical dimensions of 2.6 mm length, 1.6 mm width, and 0.98 mm height. Its configuration as a single diode with 2 pins facilitates easy integration on printed circuit boards with space constraints.
Featuring a low forward voltage drop of 390 mV, this Schottky diode effectively minimizes power losses. It can withstand peak non-repetitive forward surge currents up to 20 A, providing good transient handling capabilities. Additionally, it is rated to operate at temperatures up to 150°C, guaranteeing durability under demanding environmental conditions.
Surface mount type in S-FLAT package for space-saving designs. Maximum continuous forward current: 1 A. Peak reverse repetitive voltage: 30 V. Peak reverse current of 60 μA ensures low leakage. Forward voltage of 390 mV supports efficient conduction.
Handles surge currents up to 20 A for transient events. Operating temperature maximum of 150°C enhances reliability. Compact dimensions suitable for high-density electronic assembly. Manufactured in Malaysia with Toshiba's quality assurance.
This diode is ideal for use in industrial electronics, power supply circuits, telecommunications equipment, and other embedded devices requiring fast and efficient rectification. The compact S-FLAT package supports high-density PCB integration common in modern electronics manufacturing.
Explore additional Schottky diodes and rectifiers in EnvMart's Electronics & Electricals category for a wide range of semiconductor components designed to meet various application requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 1 ampere.
This diode has a peak reverse repetitive voltage rating of 30 volts.
The dimensions of the S-FLAT package are 2.6 mm in length, 1.6 mm in width, and 0.98 mm in height.
It features a low forward voltage drop of 390 mV.
This model can handle peak non-repetitive forward surge currents up to 20 amperes.
The maximum operating temperature for this diode is 150 degrees Celsius.
This diode has a 2-pin configuration.
The peak reverse current for this model is rated at 60 microamperes.
It utilizes a surface mount type for easy integration into circuits.
This Schottky diode is suitable for use in industrial electronics, power supply circuits, and telecommunications equipment.
It is manufactured in Malaysia, adhering to quality standards.
This model is classified as a Schottky diode.
