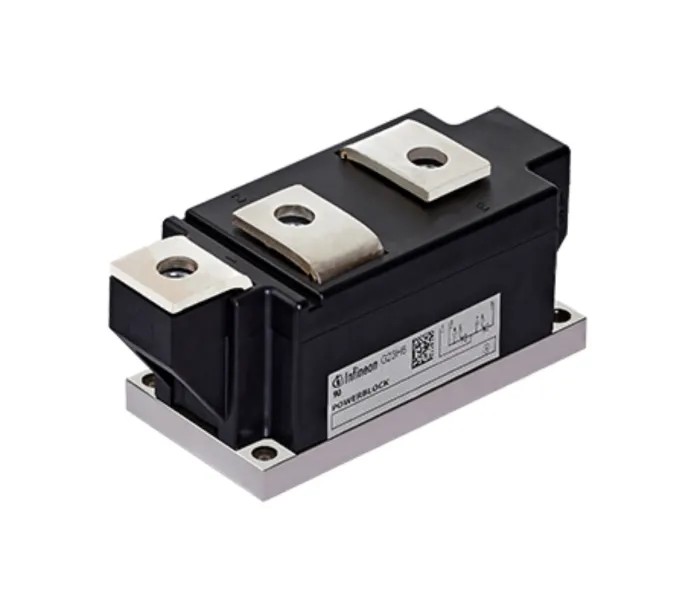

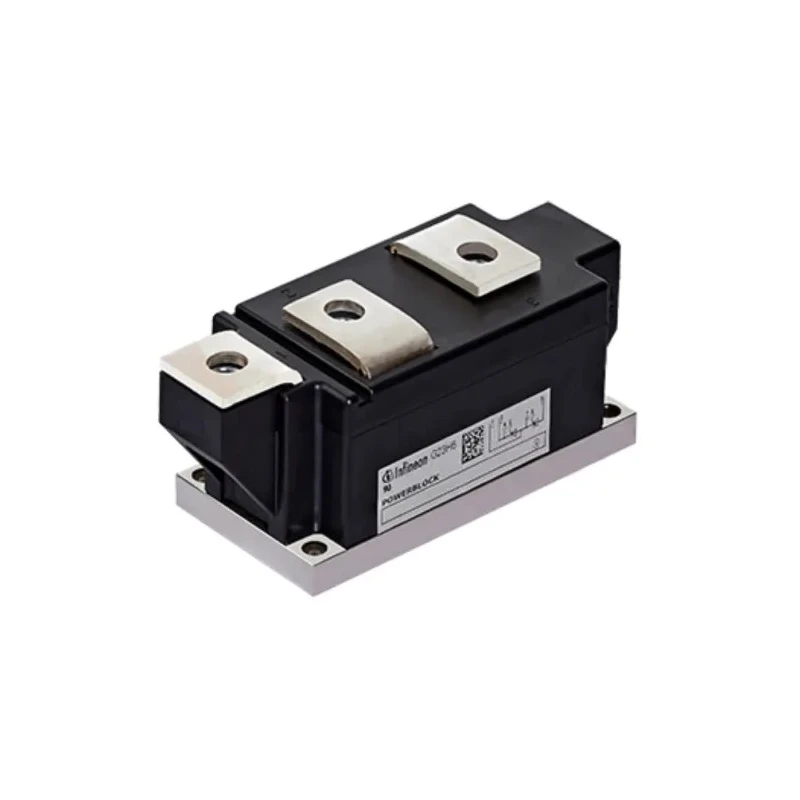

Infineon Thyristor Module 1800 V 20 kA 566 A 250 mA 1.38 V TT570N18KOFHPSA1

Infineon TT570N18KOFHPSA1 Thyristor Module is engineered for industrial power control applications requiring high voltage and high surge current capacity. This module features pressure contact technology to guarantee high reliability during operation at voltages up to 1800 V repetitive peak reverse voltage and surge currents up to 20 kA. It supports an average on-state current of 566 A with a low peak on-state voltage of 1.38 V, ensuring efficient power handling and low conduction losses.

Specifically designed for robust industrial use, this thyristor module is capable of operating at temperatures up to 125°C, making it ideal for demanding manufacturing, power electronics, and automation systems. The chassis mount design with a 60 mm base plate facilitates straightforward integration into power control assemblies.

The module's maximum gate trigger current of 250 mA and maximum gate trigger voltage of 2 V allow precise device control, while the maximum holding current of 300 mA contributes to stable device switching. Its repetitive peak off-state current of 120 mA ensures safe operation during off states. Although not designed to meet automotive standards, it is an excellent choice for industrial, manufacturing, and power system applications that require reliable thyristor performance.

High surge current rating of 20 kA for transient power spikes. Rated average on-state current of 566 A for sustained heavy loads. Pressure contact technology ensures durability and reliability. Supports operation temperature up to 125°C for harsh environments.

Chassis mount with 60 mm base plate for ease of installation. Low peak on-state voltage reduces power loss during conduction. Maximum gate trigger voltage of 2 V allows precise gate control. Designed for industrial applications requiring robust power handling.

Not suitable for automotive usage due to standard limitations. Optimum device for construction, manufacturing, power electronics, and HVAC systems.

This Infineon Thyristor Module is part of EnvMart's comprehensive semiconductor offerings. It delivers professional-grade performance, ensuring high reliability and efficiency in industrial power systems. Browse other power control modules and semiconductor solutions in the EnvMart catalog for compatible components and accessories.
