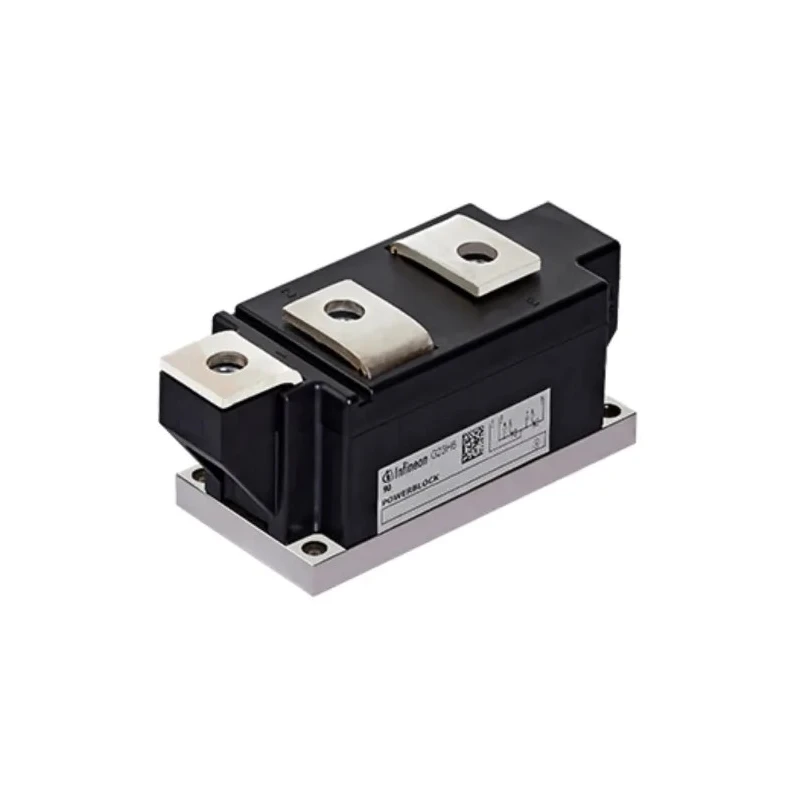

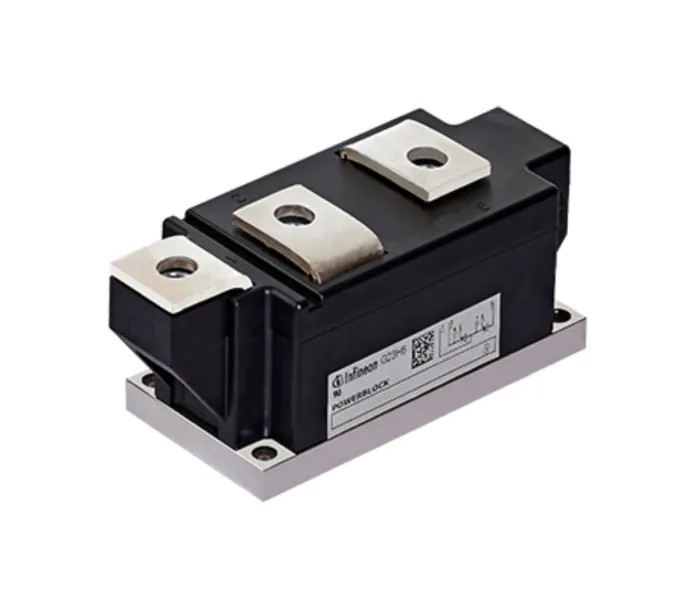

Infineon Thyristor Module 1800 V 20 kA 566 A 250 mA 1.38 V TT570N18KOFHPSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Model | TT570N18KOFHPSA1 |
| Maximum Operating Temperature | 125°C |
| Rated Average On-State Current Irms | 566A |
| Repetitive Peak Reverse Voltage VDRM | 1800V |
| Surge Current Rating | 20kA |
| Maximum Gate Trigger Current Igt | 250mA |
| Maximum Holding Current Ih | 300mA |
| Maximum Gate Trigger Voltage Vgt | 2V |
| Peak On-State Voltage | 1.38V |
| Repetitive Peak Off-State Current | 120mA |
Key Features
- This module has a rated average on-state current of 566 A.
- It utilizes pressure contact technology for high reliability.
- The maximum gate trigger current is 250 mA, with a maximum holding current of 300 mA.
- The peak on-state voltage is 1.38 V and gate trigger voltage is 2 V.
- The maximum operating temperature reaches 125°C, suitable for demanding industrial applications.
- Designed for chassis mount with a 60 mm base plate.
- Provides robust performance with a repetitive peak off-state current of 120 mA.
- The module is built without specific automotive or other approvals.
Product Description
Infineon TT570N18KOFHPSA1 is a high-performance thyristor module designed for demanding power control applications. Rated for a repetitive peak reverse voltage of 1800 V, it offers a surge current rating of 20 kA and a rated average on-state current of 566 A, making it suitable for heavy-duty electronic circuits.
This Thyristor Module uses advanced pressure contact technology ensuring enhanced reliability and robustness during operation. The device features a maximum gate trigger current of 250 mA and a holding current of 300 mA, with a peak on-state voltage of 1.38 V and maximum gate trigger voltage of 2 V.
It is engineered to operate up to a maximum temperature of 125°C and mounts securely to chassis using its 60 mm base plate. The repetitive peak off-state current rating is 120 mA, supporting stable performance under demanding load conditions.
No specific automotive or standards approvals have been assigned to this module, but it is designed to meet rigorous industrial requirements.
This thyristor is widely used in industrial electronics, power supplies, motor controls, and other applications where high voltage blocking and large surge current capabilities are crucial.
This module delivers high reliability with pressure contact technology. Supports high voltage and current capacity for industrial use. Enables robust operation at elevated temperatures up to 125°C. Chassis mount design allows for easy integration.
Ideal for semiconductor and power control applications. Explore more high-quality semiconductor components like this at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of the Infineon TT570N18KOFHPSA1 thyristor module is 125°C.
This model has a surge current rating of 20 kA, making it suitable for heavy-duty electronic circuits.
The rated average on-state current for this thyristor module is 566 A.
It has a repetitive peak reverse voltage of 1800 V and a peak on-state voltage of 1.38 V.
The maximum gate trigger current for the Infineon TT570N18KOFHPSA1 is 250 mA.
This module is designed for chassis mount with a 60 mm base plate, allowing for secure integration.
The maximum holding current is 300 mA.
The repetitive peak off-state current rating for this model is 120 mA.
It utilizes pressure contact technology, which enhances reliability during operation.
This thyristor module is suitable for industrial electronics, power supplies, and motor controls, where high voltage and large surge current capabilities are needed.
The maximum gate trigger voltage is 2 V.
The country of origin for this thyristor module is India.
