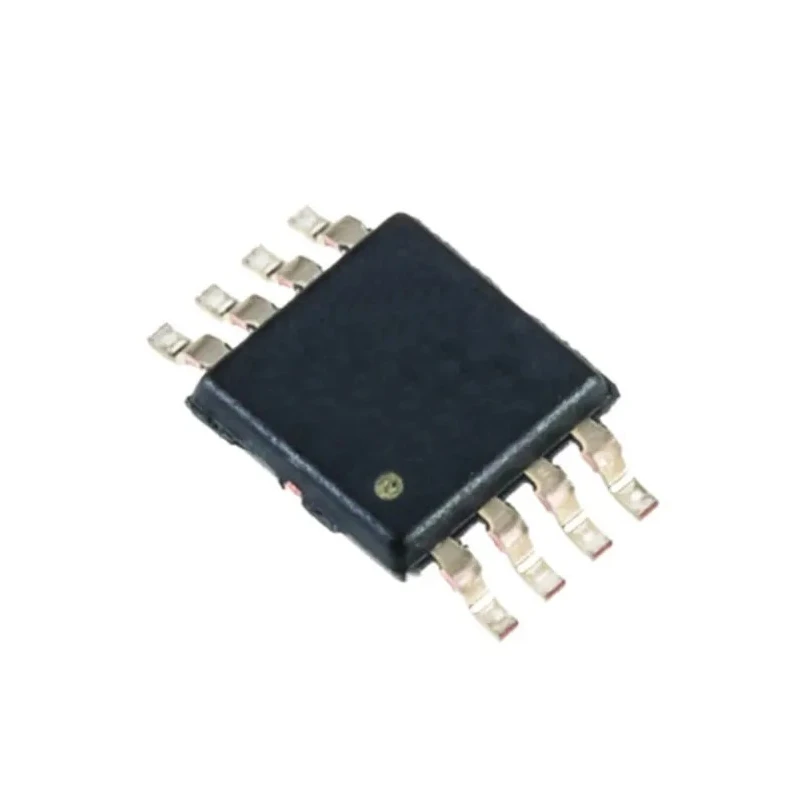

Texas Instruments I2C Translator Voltage Level Translator, Bi-Directional, 8-Pin VSSOP PCA9306DCUR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 900μm |
| Length | 3.2mm |
| Model | PCA9306DCUR |
| Mount Type | Surface |
| Output type | 3 State |
| Series | PCA9306 |
| Maximum Operating Temperature | 85°C |
| Package Type | VSSOP |
| Minimum Operating Temperature | -40°C |
| Pin Count | 8 |
| Number of Elements per Chip | 2 |
| Maximum Supply Voltage | 5V |
| Logic Family | I2C |
| Logic Function | Voltage Level Translator |
| Minimum Supply Voltage | 0mV |
| Maximum High Level Output Current | 128mA |
| Maximum Propagation Delay Time @ CL | 1.5ns |
| Direction Type | Bi-Directional |
| Translation | Voltage Level |
Key Features
- This I2C translator supports bi-directional operation for flexible interfacing.
- Comes in a compact 8-pin VSSOP surface mount package.
- Operates over a temperature range of -40°C to 85°C.
- Maximum propagation delay time of 1.5 nanoseconds at CL.
- Maximum high-level output current of 128mA suitable for signal driving.
- Minimum supply voltage starting from 0mV up to a maximum of 5V supply voltage.
- Features a 3-state output type for efficient bus control.
- Ideal for interfacing I2C and SMBus protocols across multiple voltage levels.
Product Description
Texas Instruments PCA9306DCUR is a high-performance bi-directional I2C voltage level translator designed for translating voltage levels on I2C/SMBus buses. Packaged in an 8-pin VSSOP surface mount form factor, it is suitable for compact electronic designs requiring level shifting between different voltage domains.
This voltage level translator supports two elements per chip and delivers a maximum propagation delay of 1.5ns, enabling fast and reliable communication. The device operates within a voltage supply range starting at 0mV up to 5V, making it adaptable for various power configurations.
Equipped with a 3-state output and capable of driving a maximum high-level output current of 128mA, this IC ensures stable signal translation with minimal signal distortion. The operational temperature range of -40°C to 85°C makes it suitable for a broad range of industrial and commercial environments.
The PCA9306 series does not carry automotive certification but is widely used in electronics, industrial automation, and embedded system applications for seamless I2C bus voltage compatibility.
This I2C voltage level translator offers bi-directional logic conversion. Compact 8-pin VSSOP package for efficient PCB space usage. High-speed operation with 1.5ns propagation delay. Supports voltage supply from 0mV to 5V for flexible design integration.
Robust output current driving capability at 128mA maximum. Wide operating temperature range from -40 to 85 degrees Celsius. Voltage level translator suitable for I2C/SMBus interfaces. No automotive or specific industry standards compliance applies.
These features make the Texas Instruments PCA9306DCUR essential for electronics manufacturing, testing, and research laboratories requiring precision voltage level conversion. Explore EnvMart's semiconductor category for more advanced components for your industrial and laboratory applications.
Explore more products in our Voltage Level Shifter category.
