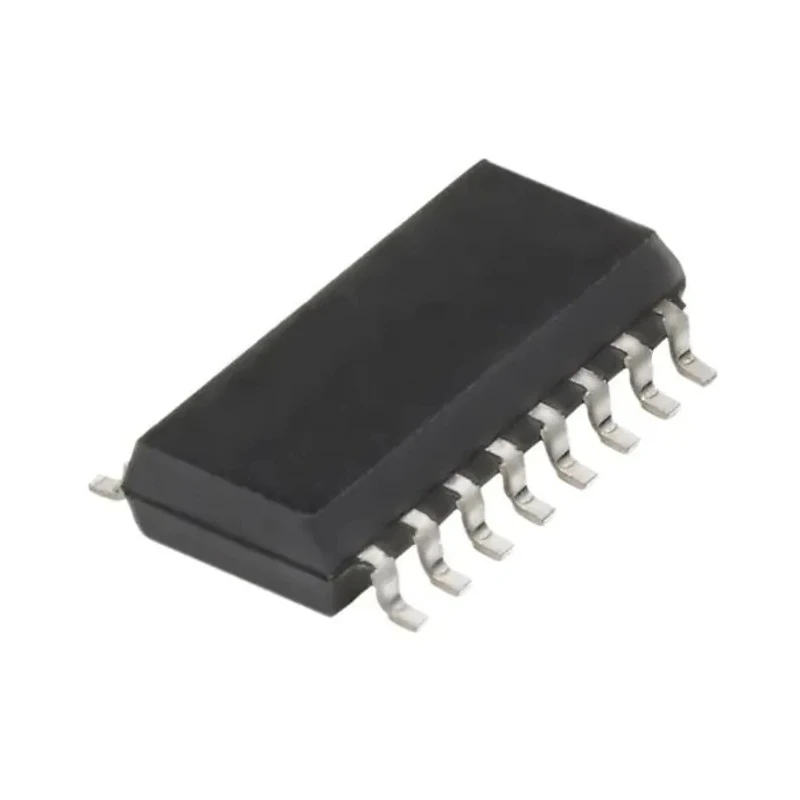

Renesas Electronics DC Input 4-Channel Photocoupler, 16-Pin SSOP PS2805C-4-F3-A
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Model | PS2805C-4-F3-A |
| Packaging | 3500 pcs/reel |
| Output type | Phototransistor |
| Series | PS |
| Maximum Operating Temperature | 100°C |
| Package Type | SSOP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 30mA |
| Number Of Channels | 4 |
| Standards/Approvals | UL1577 |
| Maximum Forward Voltage | 1.4V |
| Number of Pins | 16 |
| Input Current Type | DC |
| Typical Rise Time | 5μs |
| Typical Fall Time | 7μs |
| Minimum Current Transfer Ratio | 50% |
Key Features
- Phototransistor output type ensures efficient optical coupling.
- Maximum forward voltage of 1.4V supports effective input drive.
- Four isolated channels allow multiple signal isolations.
- Maximum input current of 30mA with DC input current type.
- Typical rise time of 5 microseconds and fall time of 7 microseconds.
- Wide operating temperature range from -55°C to 100°C.
- Compliance with UL1577 safety standards ensures reliability.
- Pb-free product with shield effect to reduce ambient light interference.
Product Description
Renesas Electronics PS2805C-4-F3-A DC Input 4-Channel Photocoupler, housed in a 16-pin SSOP package, is designed to provide excellent performance for high-density optocoupler applications.
It combines a GaAs light-emitting diode and an NPN silicon phototransistor in a compact form factor that ensures optimum signal isolation and cost effectiveness. The device features a shield effect on the package to effectively block ambient light interference, improving operational reliability.
This photocoupler supports a typical rise time of 5 microseconds and a fall time of 7 microseconds allowing fast switching suitable for industrial control and signal processing. The maximum forward voltage of 1.4V and a maximum input current of 30mA facilitate efficient operation with DC input currents.
Operating temperature ranges from -55°C to 100°C, making it adaptable for use in a wide variety of industrial, manufacturing and electronic instrumentation environments. The isolation voltage is rated at 2500 Vrms, ensuring safety in high-voltage applications.
The product complies with UL1577 standards guaranteeing safety and reliability in applications requiring electrical isolation. It is also a lead-free component, supporting environmentally friendly manufacturing.
The PS2805C-4-F3-A is delivered in 3500 pieces per reel packaging, which is highly compatible with automated assembly and manufacturing workflows, enhancing production efficiency. This optocoupler provides high current transfer ratio and AC input response for versatile circuit designs.
Its plastic SSOP package allows for compact high-density mounting solutions. The device is ideal for use in industrial automation, power electronics, signal isolation, and communication equipment. Its robust design supports electrical isolation and protection in power supply and control circuits.
The component is widely applicable in laboratory instrumentation, HVAC, manufacturing controls, and automotive electronics (non-automotive certified).
For detailed technical documents and application notes, consult Renesas Electronics resources. Browse the wide range of Electronic Components by Renesas Electronics on EnvMart for more high-performance products.
