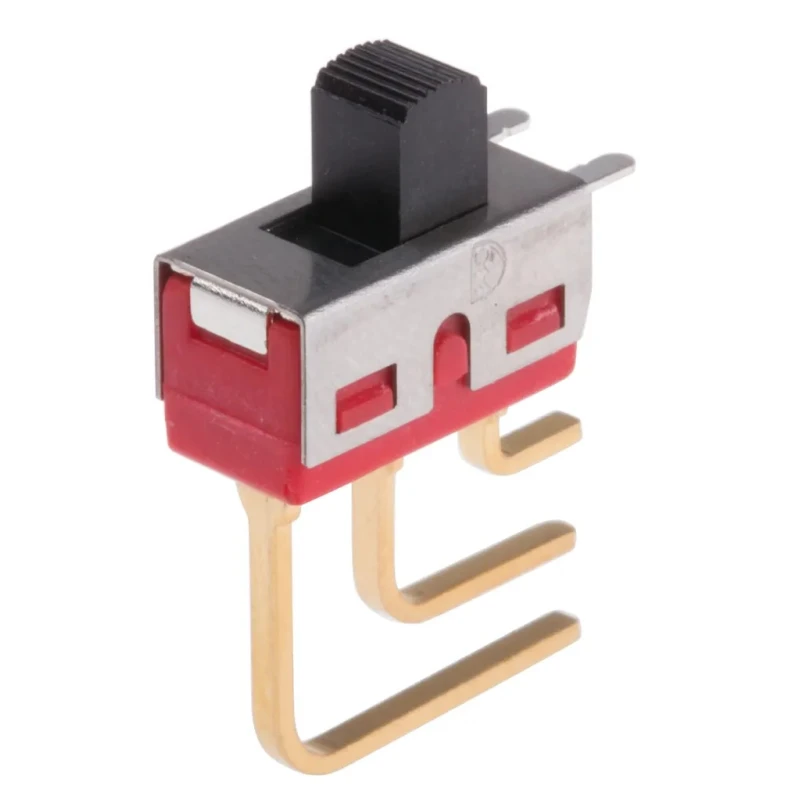

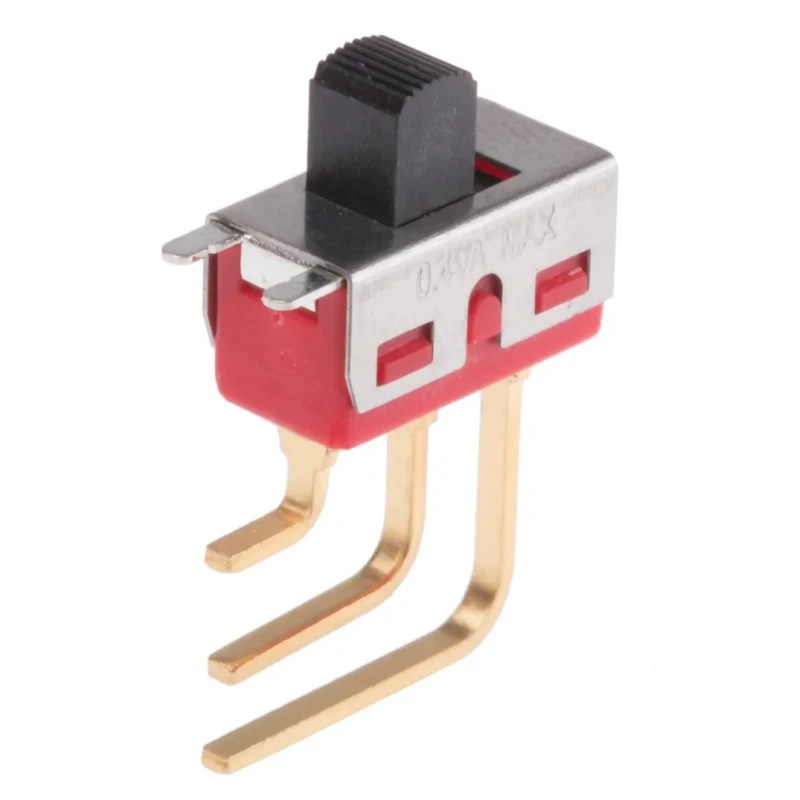

RS PRO PCB Slide Switch SPDT Latching 400mA Nylon Actuator 28V DC 250V AC 734-7309

RS PRO 734-7309 is a precision-engineered PCB slide switch with a single-pole double-throw (SPDT) contact configuration and latching operation mechanism. Featuring a robust nylon actuator and stainless steel housing, this switch is designed for reliable performance in electronic circuits requiring manual control.

The switch supports a switching contact current of 400mA, operating safely at 28 volts DC and 250 volts AC contact voltage, making it suitable for various low to moderate power applications. Its compact dimensions, measuring 12.7mm in length, 6.6mm in width, and 14.88mm in depth, allow for space-efficient board mounting.

The solder terminal type ensures strong mechanical and electrical connections on printed circuit boards. This model is built to endure up to 30,000 mechanical life cycles, providing durable and consistent actuation. The device operates reliably across a temperature range from -30°C to a maximum of 85°C, making it adaptable to diverse environmental conditions.

Manufactured in Taiwan, Province of China, this slide switch complies with RoHS directives, ensuring the product is free from hazardous substances commonly restricted in electronics manufacturing.

This switch finds typical applications in PCB or front panel control for handheld devices, instrumentation, white goods, medical devices, IT, and telecommunications equipment. The nylon actuator offers ease of operation with tactile feedback, and the latching mechanism maintains the switch position until actuated again, suitable for user interface controls.

This Slide Switch features SPDT contact configuration for versatile control. Latching switch operation ensures stable position retention. Supports switch contact current up to 400mA for moderate electrical loads. Operates at contact voltages of 28V DC and 250V AC.

Constructed with a durable nylon actuator and stainless steel housing. Compact dimensions: length 12.7mm, width 6.6mm, depth 14.88mm. Mechanical life rated for 30,000 cycles ensuring long operational reliability. Supports solder terminal type connections for PCB integration.

Allows use in temperature ranges from -30°C to 85°C. Complies with RoHS environmental standards.
