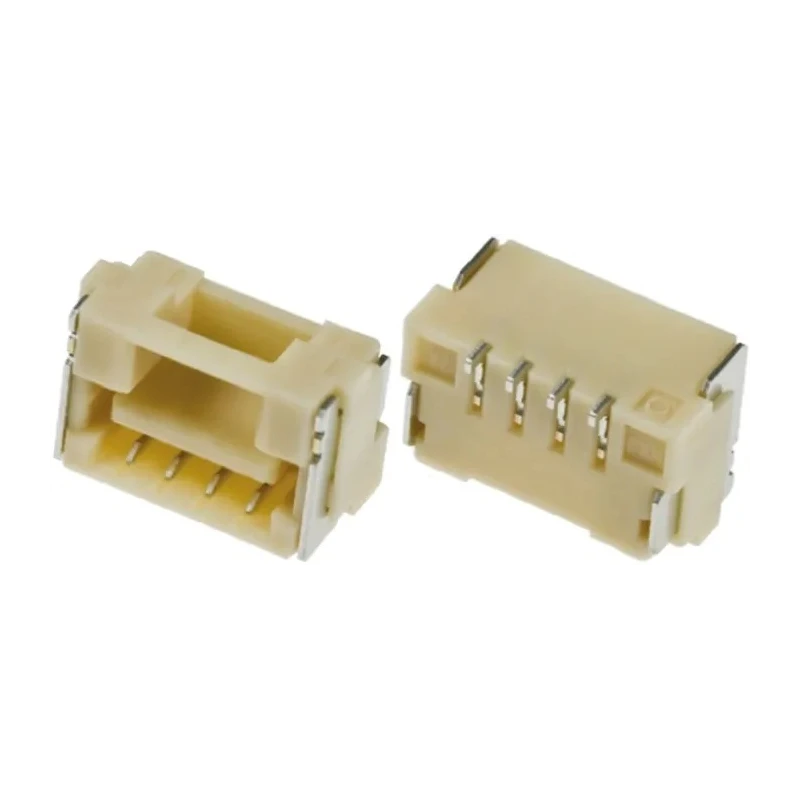

Molex CLIK-Mate Series Right Angle Surface PCB Socket, 4-Contact, 1 Row, 1.25 mm Pitch, 12A Current, 50V Voltage 502386-0470

The Molex 502386-0470 CLIK-Mate Series Right Angle Surface PCB Socket is a reliable 4-contact, 1-row wire-to-board connector with a 1.25 mm pitch designed for precision and space efficiency. Operating at 12A current and 50V, it uses a thermoplastic housing combined with copper contacts plated with tin for optimal conductivity and durability.

This surface mount type right angle socket is engineered to reduce board space usage by approximately 60% compared to similar dual-lock 2.00 mm pitch versions. It incorporates a unique tuning-fork terminal design that ensures low insertion force while maintaining secure mating contacts. The CLIK-Mate system's robust positive lock feature enhances mating assurance, preventing accidental disconnections.

Rated to operate within a temperature range of -40°C to 105°C, this PCB socket is suitable for industrial and commercial electronic applications, including LCD TVs and other devices that demand higher pin count connections within minimal space.

The connector system is signal-oriented with female contact gender, providing stable wire-to-board connections via solder termination. The combination of surface mounting and right angle orientation optimizes PCB layout and assembly processes.

This compact and efficient socket is built in Malaysia under Molex's stringent quality controls and compliance standards. Its application extends across industrial electronics, commercial electronic assemblies, and specialized manufacturing requiring dependable PCB connectors.

The socket features 4 female contacts in a single row with 1.25 mm pitch for precise alignment. It supports a current of 12 amperes and maximum voltage of 50 volts for reliable performance. Constructed with thermoplastic housing ensuring durability and insulation.

Contact material is copper with tin plating to prevent corrosion and enhance conductivity. Designed for surface mount PCB applications with a right angle orientation for space optimization. Operating temperature range from -40°C to 105°C supports diverse industrial environments.

Incorporates the CLIK-Mate lock design providing ease of use and superior mating retention. The tuning-fork terminals reduce insertion force yet maintain secure connections. The socket saves approximately 60% board space versus 2.00 mm pitch dual-lock versions.

Ideal for electronic devices requiring compact, high pin count connectors like LCD TVs. Explore the range of PCB Sockets and connectors available on EnvMart to select the ideal component for your electronics projects and manufacturing needs.
