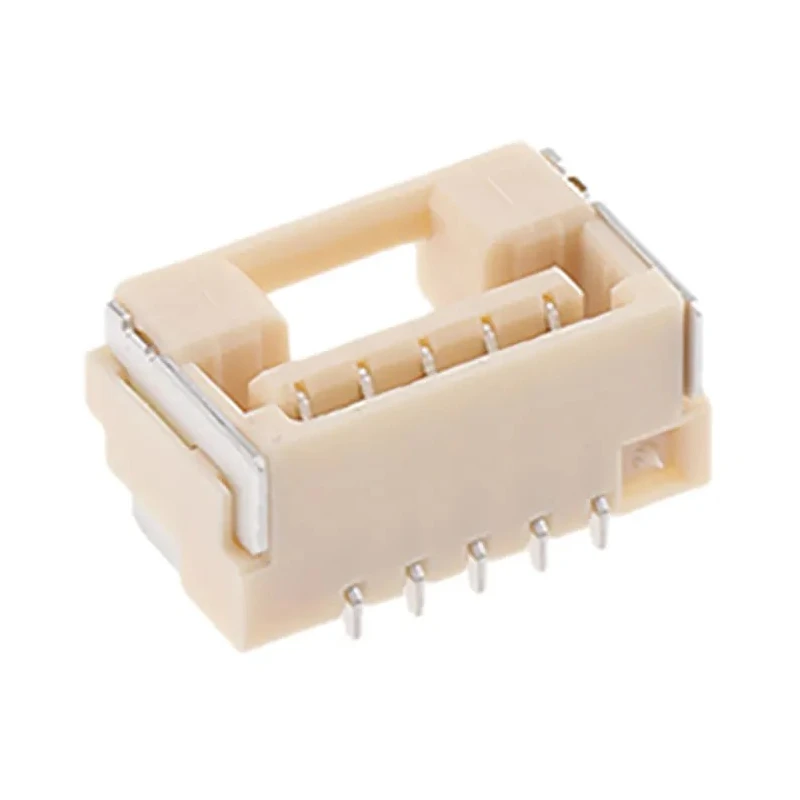

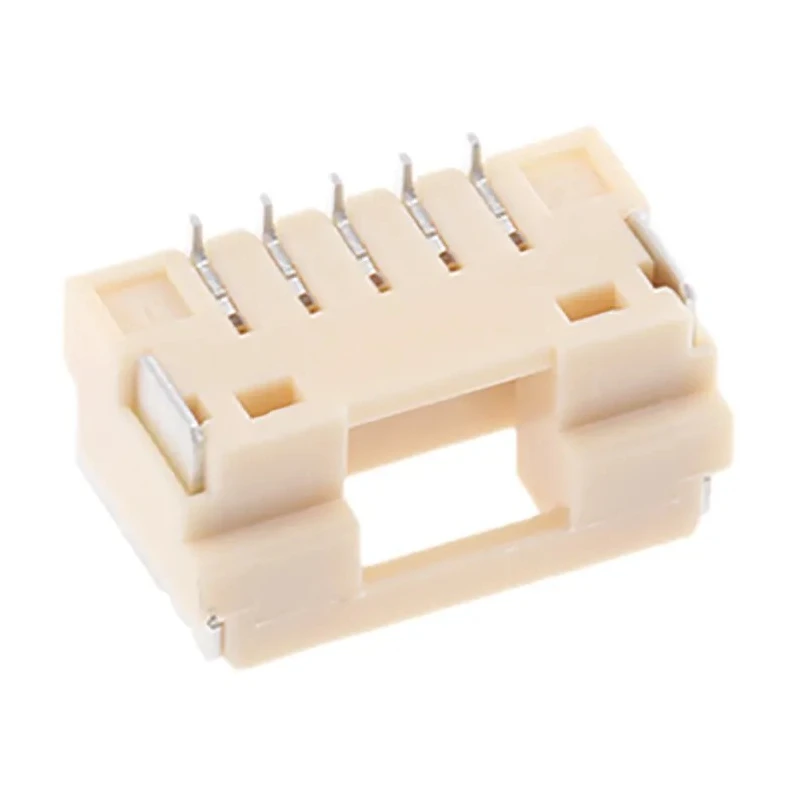

Molex CLIK-Mate Series Right Angle Surface PCB Socket 5-Contact 1 Row 1.25 mm Pitch Solder 502386-0570
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 12A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Copper |
| Series | CLIK-Mate |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1.25mm |
| Contact Plating | Tin |
| Number of Contacts | 5 |
| Contact Gender | Female |
| Connector System | Signal, Wire-to-Board |
Key Features
- Features a robust right angle orientation for space-efficient PCB mounting.
- Constructed with a thermoplastic housing and copper contacts plated with tin.
- Rated for 12A current and 50V voltage applications.
- Operates in temperatures ranging from -40°C to 105°C.
- Designed with a secure lock mechanism ensuring superior mating retention.
- Ideal for applications requiring compact and high pin-count connectors such as LCD TVs.
- Supports signal wire-to-board connector system with female contact gender.
- Surface mount technology (SMT) provides ease of assembly without vacuum pick-and-place tape.
Product Description
The Molex 502386-0570 CLIK-Mate Series Right Angle Surface PCB Socket is a professionally engineered electronic connector designed for signal wire-to-board applications. This 5-contact, 1-row socket features a 1.25 mm pitch and solder termination that ensures strong mechanical and electrical connections.
The socket’s thermoplastic housing combined with copper contacts plated in tin offers reliability and durability in industrial and commercial electronics. It is specifically engineered to operate efficiently between -40°C and 105°C, supporting current up to 12A and voltage levels up to 50V.
Its right angle orientation enables optimized PCB layouts, saving approximately 60% space compared to traditional 2.00 mm pitch connectors. The robust locking design provides excellent mating retention, reducing risks of connector disengagement in harsh environments.
This connector is particularly suited for small footprint, high-density use cases such as LCD televisions and other compact devices requiring secure multi-contact connections. The unique tuning-fork terminal concept further reduces insertion force while maintaining reliable contact.
Installation utilizes SMT mounting techniques, allowing direct vacuum pick-and-place without requiring capton tape, simplifying assembly on production lines. The connector system is female gender, fulfilling wire-to-board signal transmission needs with enhanced polarization features preventing incorrect mating.
Robust right angle design suits compact PCB layouts. Thermoplastic housing and copper/tin contacts ensure durability. Rated for 12A current and 50V voltage for reliable performance. Wide operating temperature range from -40°C to 105°C.
Unique locking and tuning-fork terminal reduce insertion force and improve retention. Space-saving 1.25 mm pitch compared to larger conventional connectors. Surface mount technology enables streamlined assembly processes.
Designed for industrial, electronic, and commercial applications requiring lightweight, reliable PCB sockets.
This connector is manufactured in Malaysia and is supplied new, meeting professional industry standards for PCB Sockets. Whether used in manufacturing, electronics prototyping, or industrial equipment assembly, the Molex 502386-0570 offers precise, dependable connection solutions.
Explore more from Molex and browse related PCB connectors and wire housing solutions in the Electronics Components category on EnvMart for comprehensive connectivity options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 12A and a voltage of 50V.
It operates efficiently within a temperature range of -40°C to 105°C.
This connector utilizes surface mount technology (SMT) for installation.
The Molex CLIK-Mate Series socket features 5 contacts in a single row.
The housing is made of thermoplastic, and the contacts are copper plated with tin.
This model has a pitch size of 1.25 mm, which allows for space-efficient layouts.
The contacts in this connector are female, designed for wire-to-board applications.
It features a robust locking mechanism that ensures superior mating retention.
It is particularly suited for compact applications requiring high pin-count connectors, such as LCD televisions.
This connector is manufactured in Malaysia.
It uses a solder termination type, ensuring strong mechanical and electrical connections.
This model supports a signal wire-to-board connector system, enhancing polarization features to prevent incorrect mating.
