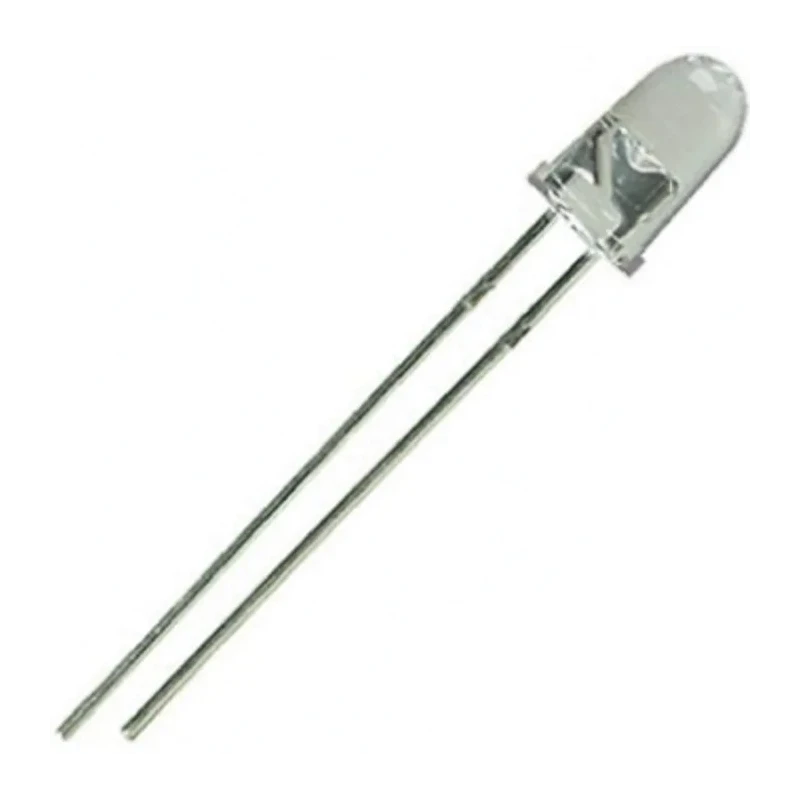

ams OSRAM Visible Light Infrared Phototransistor Through Hole 2-Pin 5 mm (T-1 3/4) Package SFH 300-3/4

ams OSRAM SFH 300-3/4 is a high-performance phototransistor designed to detect visible light and infrared spectra. Featuring a 5 mm (T-1 3/4) through-hole package with two pins, this component provides fast response times with typical rise and fall times of 10 microseconds, making it suitable for precise light sensing applications in electronics.

This phototransistor operates over a wide temperature range from -40°C to 100°C, ensuring reliable performance in industrial, commercial, and laboratory environments. Its compact size - with diameter measuring 5.1 mm and width and length both at 5.9 mm - facilitates easy integration on circuits without demanding significant board space.

The device supports a maximum collector current of 50 mA and voltage ratings of 35 V between collector and emitter and 7 V between emitter and collector, accommodating flexible application requirements. Its peak wavelength sensitivity is centered at 880 nm, optimized for infrared detection, while its angle of half sensitivity is 50°, allowing for effective light capture within moderate fields of view.

Manufactured according to RoHS compliance, the SFH 300-3/4 eliminates use of hazardous substances, aligning with environmental safety standards. The through-hole mount design with two pins ensures secure mechanical connection and ease of assembly in electronic manufacturing.

Detects visible and infrared light spectra. Typical fall and rise time of 10 microseconds for rapid sensing. Peak wavelength at 880 nm optimized for infrared applications. Maximum light current of 7700 microamperes ensures robust output signals.

Operating temperature range from -40°C to 100°C for industrial reliability. Compact 5 mm through-hole package supports easy PCB mounting. Voltage ratings: 35 V collector-emitter, 7 V emitter-collector. Complies with RoHS environmental standards.

Maximum collector current of 50 mA supports diverse use cases. 2-pin interface for simple electronic integration.

This ams OSRAM phototransistor is ideal for applications requiring visible and infrared light detection in electronic components, optoelectronics, and industrial sensors. Its robust specifications suit usage in manufacturing equipment, lighting systems, instrumentation, and automatic control devices.
