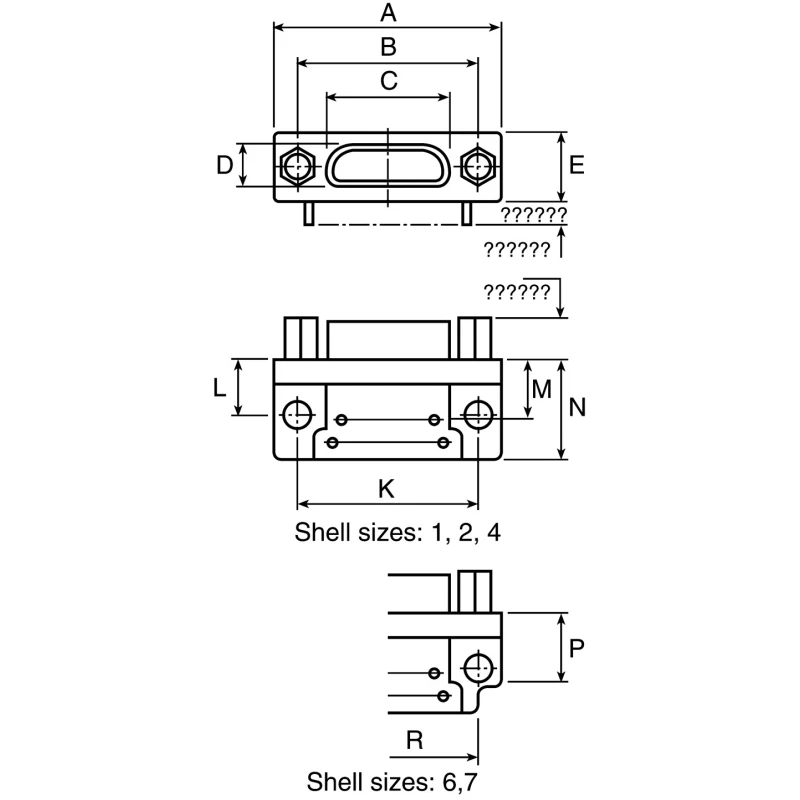

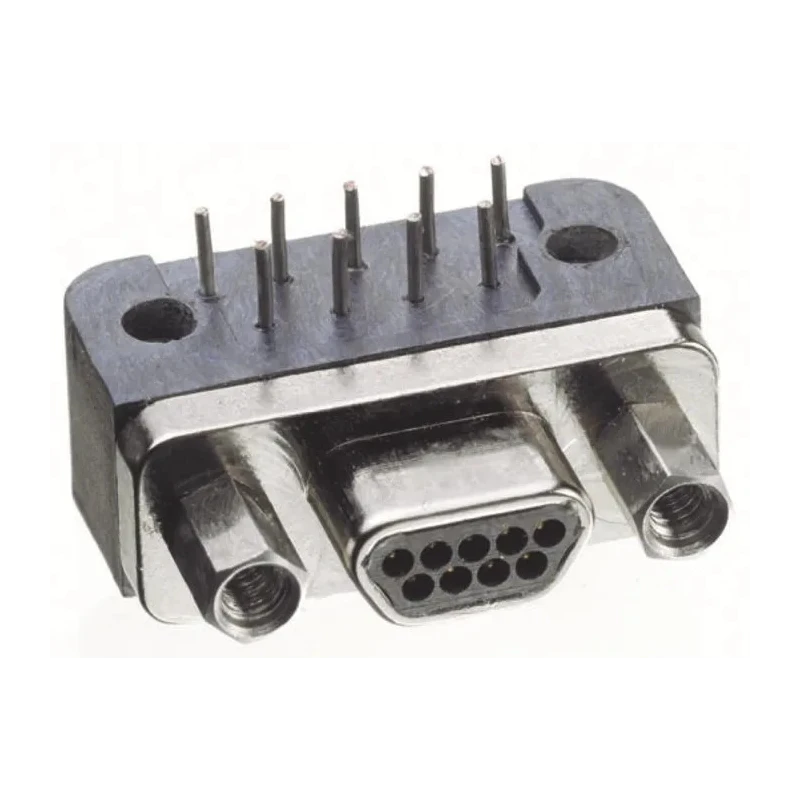

Glenair MWDM 9 Way Right Angle 2.54 mm Pitch Through Hole D-Sub Connector Male MWDM2L-9PCBRP-.110
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Glenair |
| Orientation | Right Angle |
| Current | 3A |
| Model | MWDM2L-9PCBRP-.110 |
| Mount Type | Through Hole |
| Housing Material | Aluminium Alloy |
| Contact Material | Beryllium Copper Alloy |
| Series | MWDM |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.54mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Micro-D |
Key Features
- Features 9 gold-plated contacts for robust electrical conductivity.
- Designed for right angle orientation with through hole mount type.
- Constructed with aluminium alloy housing ensuring durability.
- Operates between -55°C and 150°C for extreme temperature ranges.
- Supports a high contact current rating of 3 amps.
- Micro-D connector type with a 2.54 mm pitch for high-density applications.
- Termination type is solder, suitable for standard PCB assembly.
- Contact material is beryllium copper alloy with gold over nickel plating.
Product Description
The Glenair MWDM2L-9PCBRP-.110 is a 9 Way Right Angle 2.54 mm Pitch Through Hole D-Sub Connector Male, meticulously engineered for industrial, aerospace, military, and telecommunications applications. Its aluminium alloy housing offers rugged protection, while the gold-plated beryllium copper alloy contacts provide excellent conductivity and corrosion resistance.
This Micro-D connector series ensures high reliability in extreme conditions with a temperature operating range from -55°C to 150°C, suitable for vibration and harsh environment usages. The 0.1 x 0.1 inch termination grid and 0.02 inch diameter termination tails enable precise solder termination to PCBs.
Designed for commercial and military aerospace land, sea, and industrial telecommunication systems, it delivers superior mechanical and electrical integrity at 3 amps contact rating. The high-density 0.050-inch contact pitch facilitates compact layouts without compromising performance.
Sold under the proven MWDM series, this D-Sub connector features trapezoidal polarization, a high-performance liquid crystal polymer molded connector housing, and plated contacts with gold over nickel for durability. The right-angle mounting simplifies PCB integration in space-constrained designs.
9 gold-plated beryllium copper alloy contacts for extended durability. High current rating of 3 amps suitable for demanding uses. Aluminium alloy housing ensures lightweight yet strong construction. Temperature range from -55°C up to 150°C supports extreme environments.
MIL-C-83513 standard compliance guarantees military-grade reliability. Right angle orientation optimizes PCB space usage. Through hole solder termination compatible with standard PCB layouts. Manufactured in the United Kingdom with high-quality standards.
This connector is ideal for applications requiring compact, high-density, and robust interconnect solutions in industrial, aerospace, military, and telecommunications sectors. Explore our extensive range of D-Sub Connectors and other high-performance electronic components at EnvMart for all your industrial and commercial connectivity needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 150°C.
This model supports through hole mounting.
It features 9 gold-plated contacts.
The current rating for this connector is 3 amps.
The housing is made from aluminium alloy, and the contacts are made from beryllium copper alloy with gold over nickel plating.
The contact pitch size is 2.54 mm.
This connector is designed for right angle orientation.
The termination type is solder, suitable for standard PCB assembly.
This connector is manufactured in the United Kingdom.
It is suitable for industrial, aerospace, military, and telecommunications applications.
The minimum operating temperature for this connector is -55°C.
This model is a Micro-D connector type.
