Glenair 25 Way Straight Through Hole Micro-D Female D-Sub Connector with Jack Screw MWDL25S-6E5-18B

Glenair MWDL25S-6E5-18B is a 25 Way Straight Through Hole Micro-D Female D-Sub Connector specifically engineered to deliver exceptional mechanical and electrical integrity. Constructed with a high performance liquid crystal polymer molded housing featuring trapezoidal polarization, this connector is ideal for electronic systems requiring durability under severe environmental and vibration conditions.

This connector incorporates a gold plated twist pin contact system rated to handle currents up to 3 Amps and voltages up to 600 Volts. Its compact Micro-D design with a 0.05 inch contact pitch enables high density layouts, making it suitable for aerospace, military, industrial, and telecommunications applications. The through-hole mounting type utilizes jack screw hardware ensuring a secure and stable connection in demanding usage scenarios.

Operating temperature range from -55°C to 150°C allows reliable performance in extreme cold and heat environments. While it does not carry specific certifications, it is designed to the MIL-C-83513 standard, demonstrating compliance with military ruggedness requirements. The connector is female gender and supplied with 450mm (18 inches) of color-coded wiring for immediate integration.

High performance liquid crystal polymer housing with trapezoidal polarization. Gold plated twist pin contacts provide low resistance and reliability. 3 Amp contact rating for moderate current applications. 600 Volt voltage rating suitable for power and signal transmission.

Through hole mounting type with jack screw hardware for secure fixing. Micro-D type connector with 0.05" pitch supports high density wiring. Operating range from -55°C to 150°C supports harsh environments. Designed and manufactured in the United Kingdom.

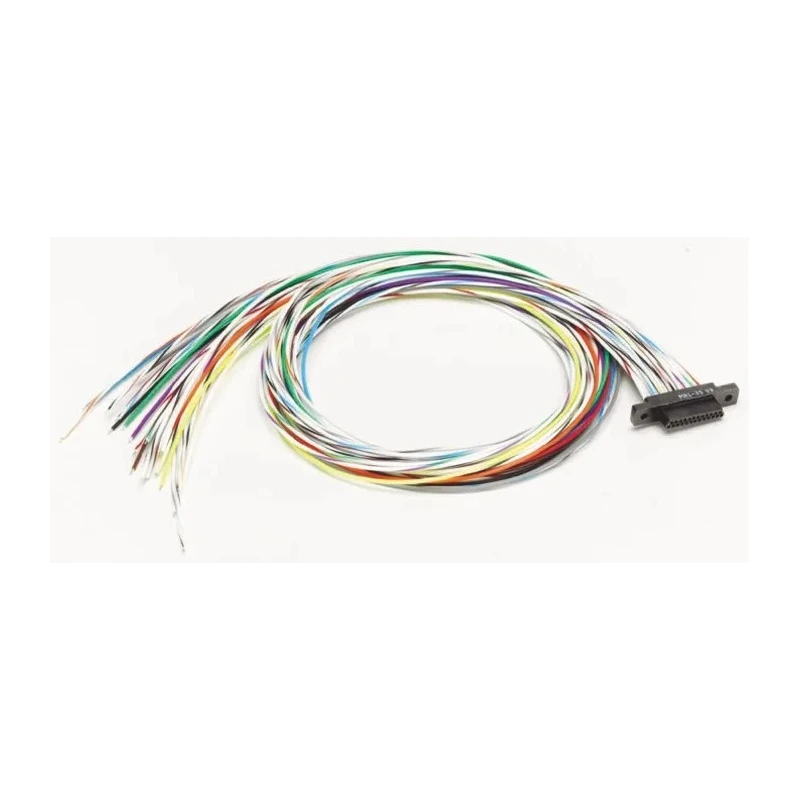

Included 450 mm color coded wiring for ease of use.

This connector is widely used in industrial, military aerospace, telecommunications, and land and sea applications to ensure secure, high integrity electrical connections capable of withstanding extreme environmental and vibration stress.
