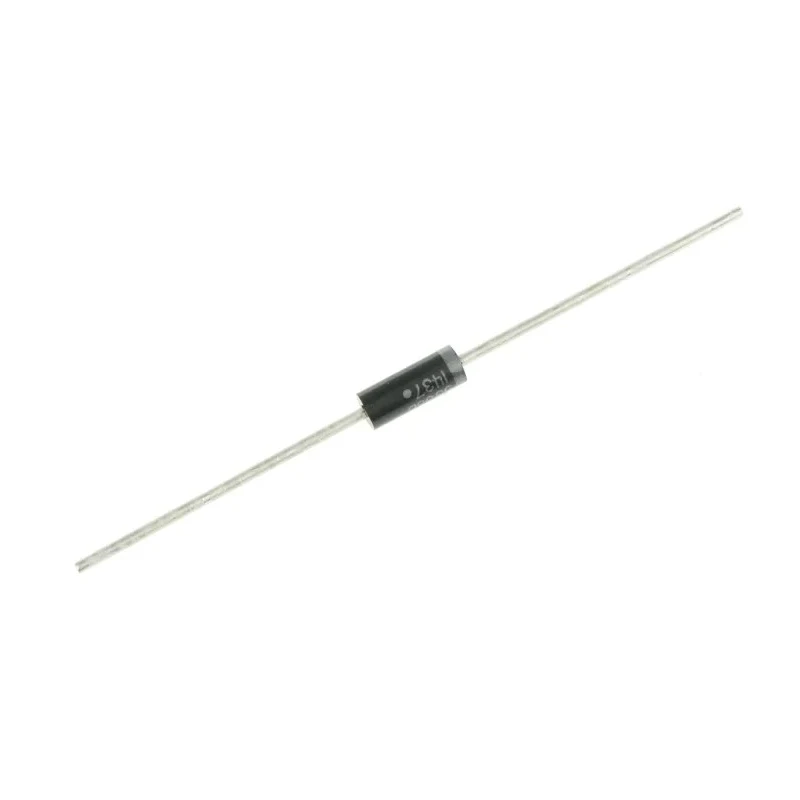

onsemi 200 V 5 W Zener Diode Single Through Hole 2-Pin DO-15 1N5388BRLG

onsemi 1N5388BRLG Zener Diode is a high-reliability, voltage regulator diode with a nominal Zener voltage of 200 V and power dissipation up to 5 watts. It is designed as a single-element diode housed in a DO-15 package with a 2-pin through-hole mounting configuration suitable for various industrial and electronic applications requiring stable voltage regulation and protection.

This diode offers a tight tolerance of ±5% on the Zener voltage to ensure precise voltage stabilization under defined test current conditions of 5 mA. Maximum operating temperatures reach 200°C with a minimum capability of -65°C, making it ideal for demanding environments.

The device features low maximum reverse leakage current at 500 nA and maximum Zener impedance of 480 Ω, supporting efficiency and performance in diverse semiconductor circuits.

Physical dimensions are compact with a height of 3.68 mm and length of 8.89 mm, allowing easy integration in power supply circuits, voltage regulation modules, and other electronic assemblies in industrial, commercial, and laboratory settings.

onsemi's 1N53 series, including this 1N5388BRLG model, is noted for enhanced operating characteristics and reliability for power ratings up to 5 watts. Applications span industrial power supplies, discrete semiconductor solutions, and embedded system protections.

Designed for voltage regulation with a nominal Zener voltage of 200 V. Maximum power dissipation of 5 watts for reliable performance. Package features DO-15 type with 2 pins for through-hole mounting. Operates within a temperature range of -65°C to 200°C for versatile applications.

Maximum reverse leakage current is 500 nA ensuring minimal leakage losses. Maximum Zener impedance is 480 ohms to provide stable voltage regulation. Test current rating is 5 milliamperes for accurate Zener voltage testing.

Compact dimensions: Height 3.68 mm and Length 8.89 mm. This 5 W Zener diode from onsemi aligns well with applications in electronics manufacturing, power management modules, semiconductor circuits, and protection devices.
