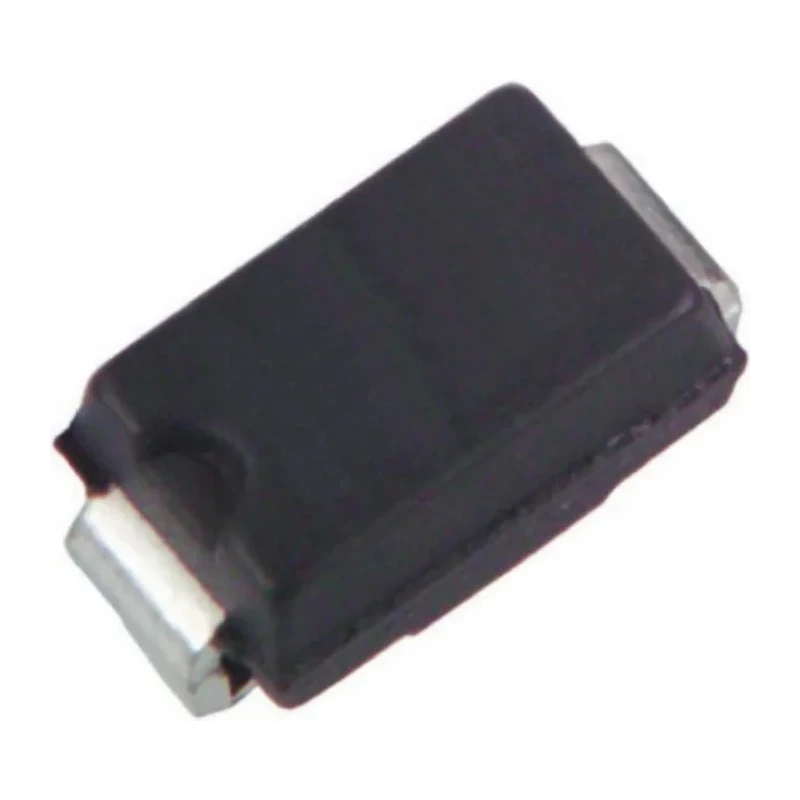

Taiwan Semiconductor 400 V 1.5 A Switching Single Diode 2-Pin Sub SMA Package S1GL R2

Taiwan Semiconductor S1GL R2 is a surface mount switching diode designed for electronic and power semiconductor applications with a maximum continuous forward current of 1.5 A and a peak reverse repetitive voltage of 400 V.

This diode uses a compact 2-pin Sub SMA package suitable for dense PCB layouts in automotive, industrial, and general electronic circuits. It features a low forward voltage drop of 1.1 V which enhances circuit efficiency and a fast peak reverse recovery time of 1.8 microseconds supporting high-speed switching operations.

The device maintains performance across a wide operating temperature range from -55°C to 150°C, further suited to harsh automotive standard AEC-Q101 environments. Its surge current capacity of 30 A ensures robustness against transient electrical surges.

With dimensions of 2.9 mm in length, 1.9 mm in width, and 1.43 mm in height, this diode is optimized for space-efficient surface mount technology (SMT) assembly.

The S1GL R2 diode is ideal for rectification and switching in power supplies, automotive electronics, industrial control equipment, and various semiconductor circuits requiring dependable diode switching with low leakage and effective surge tolerance.

The diode offers a maximum forward voltage of 1.1 V ensuring efficient conduction. It exhibits a peak reverse recovery time of 1.8 microseconds optimized for switching applications. Operating temperature ranges from -55°C to 150°C for reliable performance in varying environments.

The package features a 2-pin Sub SMA form factor with dimensions 2.9 mm length, 1.9 mm width, and 1.43 mm height. This device complies with automotive standard AEC-Q101 ensuring suitability for automotive electronics. The diode has a peak non-repetitive forward surge current rating of 30 A providing durability against transient surges.

Its pin count and single diode configuration simplify integration in power semiconductor circuits. Comes with a very low peak reverse current of 5 microamperes to minimize leakage losses. Explore our comprehensive selection of semiconductor Diodes at EnvMart for robust and efficient electronic components meeting stringent industrial standards.
