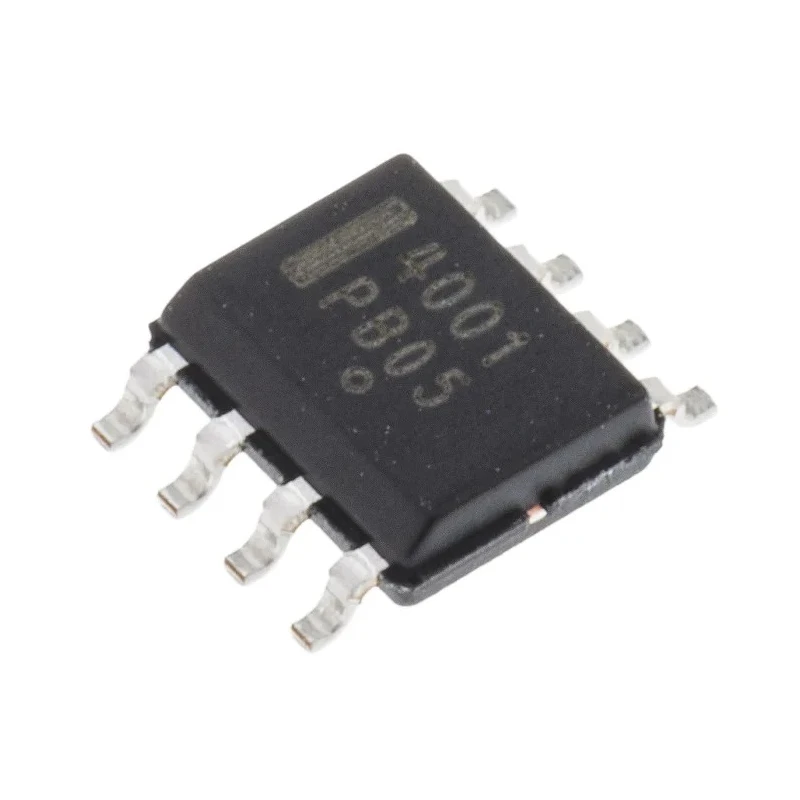

onsemi LED Driver IC, 30V Input, 500 mA Output Current, PWM Dimming, 8-Pin SOIC Package NUD4001DR2G

Free Delivery in India | Lowest Global Shipping Charges

onsemi LED Driver IC, 30V Input, 500 mA Output Current, PWM Dimming, 8-Pin SOIC Package NUD4001DR2G

Name: onsemi LED Driver IC, 30V Input, 500 mA Output Current, PWM Dimming, 8-Pin SOIC Package NUD4001DR2G
Brand: onsemi
SKU: 201382
Price: 0.68 USD
Availability: InStock



Category LED Driver IC Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.75mm
Length	5mm
Model	NUD4001DR2G
Width	4mm
Mount Type	Through Hole
Output Current	500mA
Maximum Operating Temperature	150°C
Package Type	SOIC
Minimum Operating Temperature	-55°C
Maximum Output Power	1.13W
Input Voltage	30, 3.6V
Number of Pins	8
Automotive Standard	AEC-Q101
Dimming Operation	PWM
DiodesZetex PAM2808BLBR LED Driver IC, 2.5V dc, 6 V dc 1.5 A 8-Pin SOPBrand	DiodesZetex

Key Features

Supports an output current of 500 mA for stable LED performance.
Operates with a wide input voltage range of 3.6 V to 30 V.
Utilizes PWM dimming for smooth and efficient LED brightness adjustment.
Comes in a compact 8-pin SOIC package suitable for through-hole mounting.
Operates reliably within -55°C to 150°C temperature range for rugged environments.
Automotive qualified to AEC-Q101 standards, ensuring high quality and reliability.
Maximum output power of 1.13 W supports various LED applications efficiently.
Small dimensions of 5mm length, 4mm width, and 1.75mm height enable space-saving PCB designs.

Product Description

onsemi NUD4001DR2G LED Driver IC is a linear LED driver designed for industrial and automotive applications where high reliability and precise control are critical. It supports a wide input voltage range from 3.6 V to 30 V and delivers a constant 500 mA output current, making it suitable for powering LEDs in various lighting systems.

This component uses PWM dimming operation, enabling efficient and flicker-free brightness control, ideal for automotive lighting, industrial displays, and commercial LED lighting solutions.

Packaged in an 8-pin SOIC through-hole mount, the NUD4001DR2G features compact dimensions of 5mm by 4mm with a height of 1.75mm, allowing integration into densely packed electronic assemblies.

The device is rated for operation in temperatures ranging from -55°C to 150°C, ensuring robustness in harsh environmental conditions. It complies with the AEC-Q101 automotive standard, certifying it for use in automotive systems requiring stringent quality controls.

The maximum output power of 1.13 W further expands the application range to medium-power LED driving requirements. Its linear driver design ensures low noise and stable LED current supply.

Supports an output current of 500 mA for stable LED performance. Operates with a wide input voltage range of 3.6 V to 30 V. Utilizes PWM dimming for smooth and efficient LED brightness adjustment. Comes in a compact 8-pin SOIC package suitable for through-hole mounting.

Operates reliably within -55°C to 150°C temperature range for rugged environments. Automotive qualified to AEC-Q101 standards, ensuring high quality and reliability. Maximum output power of 1.13 W supports various LED applications efficiently.

Small dimensions of 5mm length, 4mm width, and 1.75mm height enable space-saving PCB designs.

This onsemi LED driver IC is ideal for industrial electronics, automotive lighting systems, commercial LED lighting, laboratory instrumentation, and other embedded LED control applications. It balances efficiency, precision, and durability.
