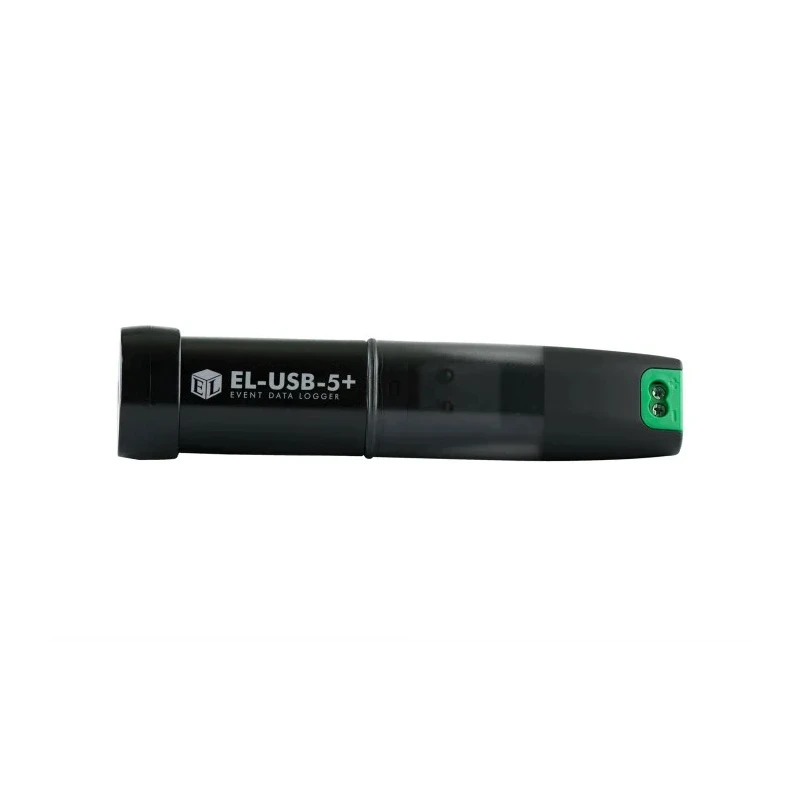

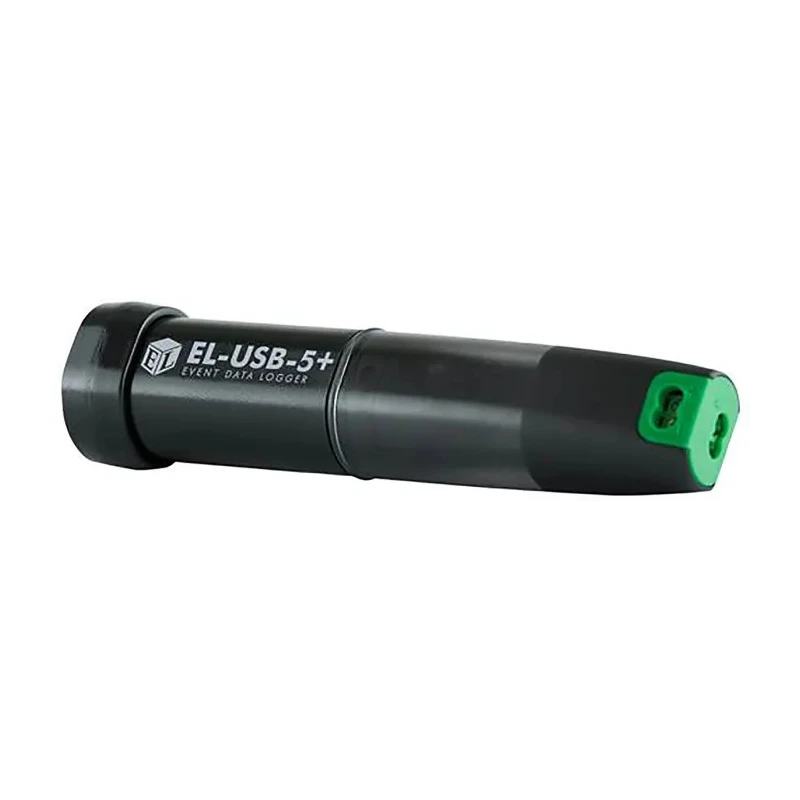

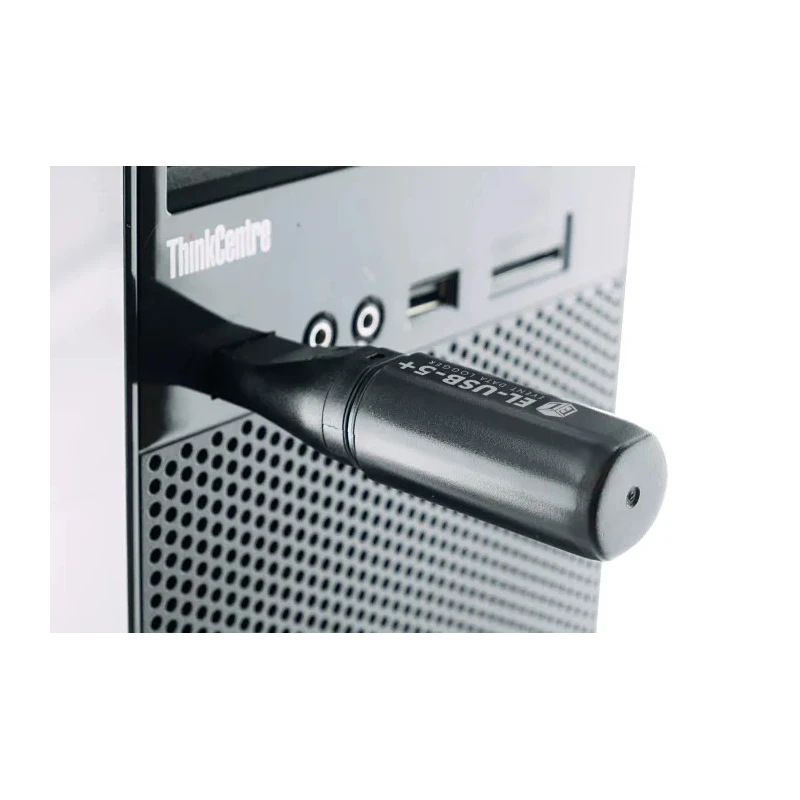

Lascar Event Data Logger USB, 1 Channel, LCD Display, AA Battery, -35°C to 80°C Operating Temperature EL-USB-5+

Free Delivery in India | Lowest Global Shipping Charges

Lascar Event Data Logger USB, 1 Channel, LCD Display, AA Battery, -35°C to 80°C Operating Temperature EL-USB-5+

Name: Lascar Event Data Logger USB, 1 Channel, LCD Display, AA Battery, -35°C to 80°C Operating Temperature EL-USB-5+
Brand: Lascar
SKU: 195188



Category Data Loggers Brand Lascar Condition New

Specifications

Country of Origin	Indonesia
Display Type	LCD
Brand	Lascar
Battery Life	1year
Battery type	AA
Length	98mm
Model	EL-USB-5+
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-35°C
Number Of Channels	1
Measurement Parameters	Event, Counter, State Change
Interface Type	USB
Number of Readings per Channel	32510

Key Features

Records over one million events, state changes, and counts with high speed.
Event logging up to four times per second and state changes up to two times per second.
Event counting at speeds up to 100 times per second with LED off.
Supports volt free contacts with normally open contact only via two screw terminals.
Status indicated by red and green LEDs for easy monitoring.
Operates in harsh environments from -35°C to 80°C.
Equipped with an LCD display and alarm functionality.
Powered by a replaceable AA battery with up to one year battery life.

Product Description

Lascar EL-USB-5+ Event Data Logger USB is a high-performance, standalone device designed to accurately capture and record over one million events, state changes, and counters across a wide industrial temperature range from -35°C to 80°C. It integrates a single channel for event logging, supported by an easy-to-read LCD display and audible alarm to enhance monitoring capability. Powered by an AA battery, this logger provides up to one year of battery life, ensuring reliable operation in demanding environments.

The data logger offers fast event capturing rates of up to four events per second and supports state change measurements at two per second, with event counting speeds reaching 100 per second when LED indicators are disabled. Its configuration supports volt free contacts (normally open only) via the dual screw terminal connections, providing simplicity in installation and operation. Status LEDs in red and green offer immediate visual feedback on operational conditions.

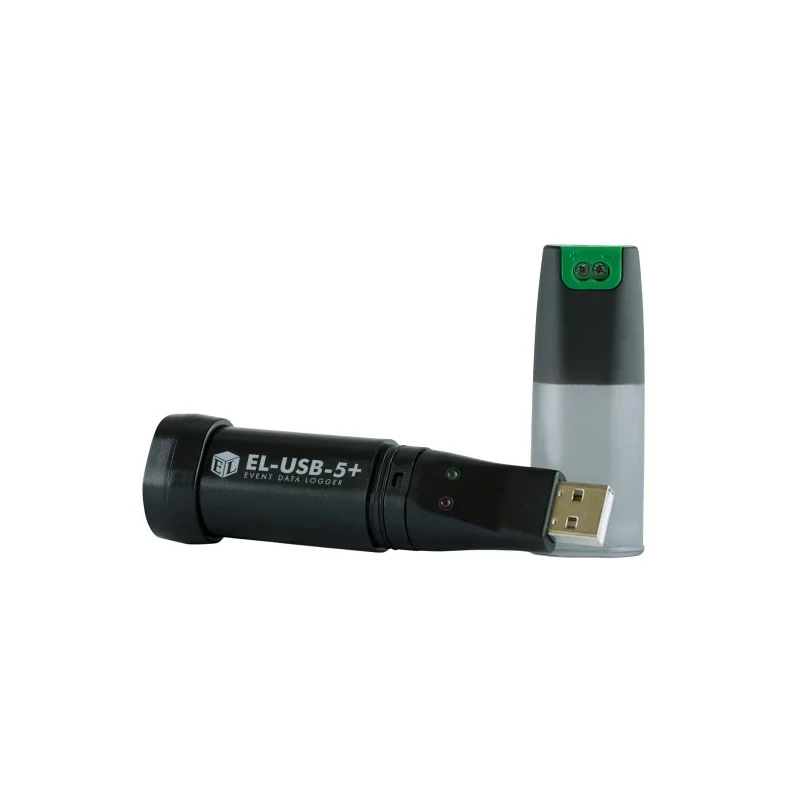

Connectivity is achieved via a USB interface, allowing users to download data effortlessly to a PC. With the free EasyLog software and the EasyLog Cloud platform, users can graph, print, and export data for in-depth analysis, enhancing facility management and environmental monitoring tasks. The device is ideal for applications including environmental data logging, facility management, and compliance recording in industrial, manufacturing, laboratory, and commercial contexts.

Records over 1,000,000 events and state changes with precision. High-speed event and state change logging supporting industrial monitoring needs. Supports volt free contacts connection with simple screw terminal interfaces.

Robust performance across extreme temperatures (-35°C to 80°C) suitable for harsh environments. Integrated LCD and alarm for real-time event and status monitoring. USB connectivity for easy data transfer and analysis. Long-life AA battery powering for up to one year of operation.

Compact form factor with 98 mm length and wall mount clip included. Ideal for environmental and facilities management applications. Designed and manufactured in Indonesia with reliable build quality.
