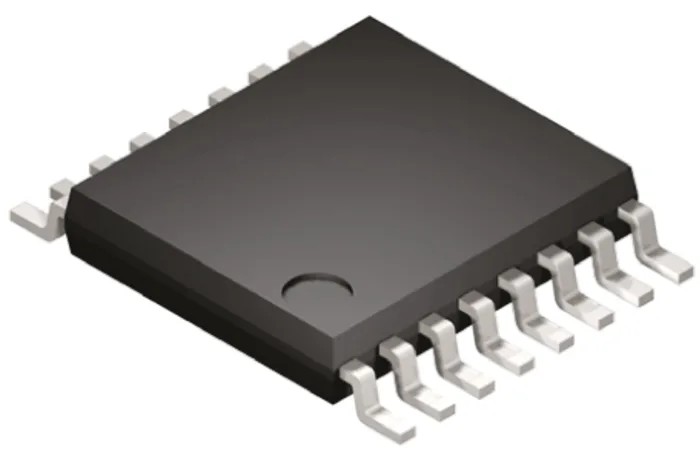

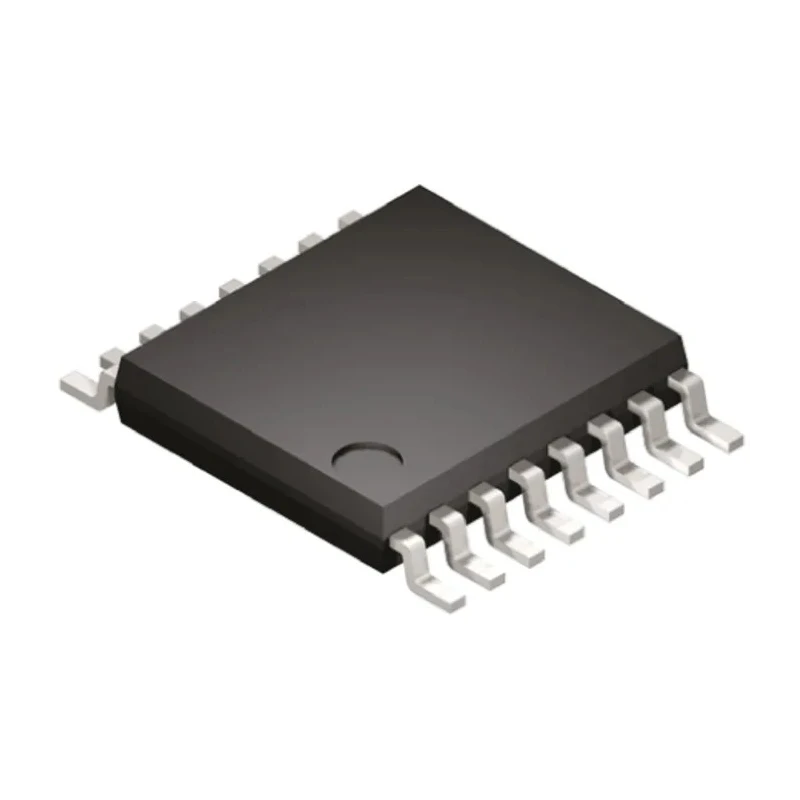

DiodesZetex LED Driver IC 5V DC, 65 V DC, 18 mA, 16-Pin TSSOP ZXLD1371EST16TC
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | DiodesZetex |
| Height | 1.5mm |
| Length | 4.95mm |
| Model | ZXLD1371EST16TC |
| Width | 3.85mm |
| Mount Type | Through Hole |
| Series | ZXLD1371 |
| Output Current | 18mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Input Voltage | 5, 65V dc |
| Maximum Output Voltage | 65V |
| Number of Pins | 16 |
| Minimum Output Voltage | -0.3V |
| Dimming Operation | PWM |
Key Features
- Operates across a wide input voltage range of 5V to 65V DC.
- Provides a constant output current of 18 mA for LED driving applications.
- Package type is Thin Shrink Small Outline Package (TSSOP) with 16 pins.
- Supports PWM dimming operation for brightness control.
- Designed for through-hole mounting to simplify PCB assembly.
- Compact dimensions with length 4.95 mm, width 3.85 mm, and height 1.5 mm.
- Operating temperature range extends from -40°C to 125°C for reliability.
- Maximum output voltage is 65V, ensuring compatibility with medium voltage requirements.
Product Description
DiodesZetex ZXLD1371EST16TC is a high-performance LED Driver IC engineered to provide stable output current suitable for medium voltage LED lighting applications. It operates within an input voltage range of 5V to 65V DC, supplying a steady output current of 18 mA with PWM dimming capability.
The device is housed in a 16-Pin Thin Shrink Small Outline Package (TSSOP) designed for through-hole mounting, facilitating easy integration on printed circuit boards. Its robust operating temperature range from -40°C up to 125°C ensures dependable performance across diverse industrial and commercial environments.
With compact physical measurements of 4.95 mm length, 3.85 mm width, and 1.5 mm height, this IC fits well into space-constrained applications without compromising functionality. The maximum output voltage capability of 65V supports medium voltage LEDs, making it an ideal component for LED lighting equipment manufacturing and repair.
This LED driver IC does not carry specific industry certifications but meets strict manufacturing and design standards typical for semiconductor LED driver products. Made in Malaysia, it ensures robustness and reliability expected in demanding industrial, laboratory, and commercial lighting use cases.
Operates at input voltage range of 5 to 65 volts DC. Outputs constant current of 18 mA suitable for LED applications. Supports PWM dimming for dynamic brightness control. Compact 16-pin TSSOP through-hole package. Wide operating temperature from -40°C to 125°C.
Dimensions: Length 4.95 mm, Width 3.85 mm, Height 1.5 mm. Maximum output voltage rating of 65 volts DC. Ideal for industrial and commercial LED lighting systems.
This product is part of the LED Driver IC category and ideally suited for designers and manufacturers of LED lighting equipment requiring precise current control and efficient dimming capability. For further exploration, browse the Electronics Components section on EnvMart for related LED lighting and driver components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within an input voltage range of 5V to 65V DC.
This model provides a constant output current of 18 mA, suitable for LED driving applications.
The maximum output voltage capability is 65V, ensuring compatibility with medium voltage requirements.
It is housed in a Thin Shrink Small Outline Package (TSSOP) with 16 pins, designed for through-hole mounting.
The dimensions are 4.95 mm in length, 3.85 mm in width, and 1.5 mm in height.
The operating temperature range extends from -40°C to 125°C, ensuring reliable performance in various environments.
Yes, it supports PWM dimming operation for brightness control.
The minimum output voltage is -0.3V.
This product is made in Malaysia.
It is designed for through-hole mounting, which simplifies PCB assembly.
It is part of the ZXLD1371 series.
This LED driver IC is ideally suited for industrial and commercial LED lighting systems requiring precise current control and efficient dimming capability.
