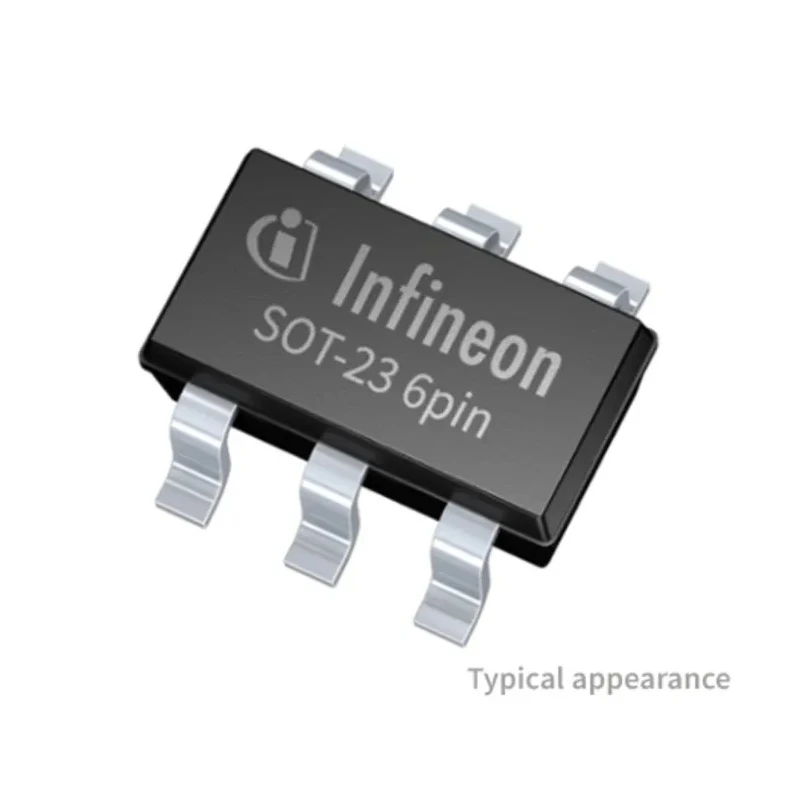

Infineon LED Driver IC 25V 1 mA PWM Dimming 6-Pin SOT-23-6 CDM10VDXTSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 1.45mm |
| Length | 2.9mm |
| Model | CDM10VDXTSA1 |
| Width | 1.6mm |
| Mount Type | Through Hole |
| Series | CDM10VD |
| Output Current | 1mA |
| Maximum Operating Temperature | 135°C |
| Package Type | SOT-23-6 |
| Minimum Operating Temperature | -40°C |
| Maximum Output Power | 160mW |
| Input Voltage | 25V |
| Standards/Approvals | standard |
| Maximum Output Voltage | 26V |
| Number of Pins | 6 |
| Minimum Output Voltage | 0V |
| Dimming Operation | PWM |
| Wide input V cc range | 11 - 25V |
Key Features
- Operates with an input voltage range of 11 to 25V.
- Supports both active and passive dimming with transparent PWM mode.
- Enables dim-to-off functionality through PWM input.
- Consumes low maximum output power of 160mW for energy efficiency.
- Compact dimensions (2.9mm length x 1.6mm width x 1.45mm height) fit small PCB footprints.
- Through hole mount ensures easy PCB assembly.
- Wide operating temperature range from -40°C to 135°C for harsh environments.
- 6 pins in SOT-23-6 package allow space-saving integration.
Product Description
Infineon CDM10VDXTSA1 is a high-performance LED Driver IC tailored for modern lighting applications requiring efficient dimming control with PWM operation. It operates on an input voltage range of 11 to 25V, delivering an output current of 1 mA and supporting dim-to-off capabilities. The device is encased in a compact 6-pin SOT-23-6 through-hole package, providing a minimal footprint ideal for small PCBs in commercial and industrial lighting fixtures.
Featuring a maximum output power of 160mW, the CDM10VDXTSA1 facilitates energy-saving lighting control while enabling flexible dimming through active and passive modes. Its transparent PWM mode simplifies integration by converting 0-10V analog dimming signals into PWM signals capable of driving external optocouplers. This integrated approach replaces multiple discrete components, significantly lowering BOM complexity and PCB space usage.
The IC accommodates a wide operational temperature range from -40°C up to 135°C, ensuring reliability in diverse industrial, commercial, and HVAC environments. Its robust design suits use in LED lighting controllers needing precise and programmable dimming interfaces.
Operates with a wide input voltage range from 11V to 25V. Supports PWM-based active and passive dimming functionalities. Compact SOT-23-6 6-pin package for space-constrained PCBs. Through-hole mounting format for straightforward assembly.
Low power dissipation with maximum output power of only 160mW. Wide temperature rating from -40°C to +135°C for demanding conditions. Replaces many external components, reducing bill of materials and PCB space. Converts 0-10V analog signals to PWM signals for LED control.
Standard compliance assures quality and performance stability. Not suitable for automotive standard applications.
This IC is ideal for applications in LED lighting systems across industrial, commercial, and manufacturing sectors where compact size and precise dimming control are critical. Integration of CDM10VDXTSA1 simplifies design efforts for lighting manufacturers and supports a wide range of dimming configurations to meet diverse customer needs.
Explore EnvMart's Electronics & Electricals catalog for a broad selection of LED Driver ICs including Infineon products to enhance and optimize your LED lighting system designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with an input voltage range of 11V to 25V.
The maximum output power is 160mW, which supports energy-efficient operation.
It delivers an output current of 1 mA.
The dimensions are 2.9mm in length, 1.6mm in width, and 1.45mm in height.
It supports both active and passive dimming through PWM operation.
It has a wide operating temperature range from -40°C to 135°C.
The package has 6 pins, allowing for space-saving integration on PCBs.
This model uses a through-hole mounting format for easy PCB assembly.
The maximum output voltage is 26V.
Yes, it can convert 0-10V analog dimming signals into PWM signals for LED control.
The country of origin is India.
It complies with standard approvals, ensuring quality and performance stability.
