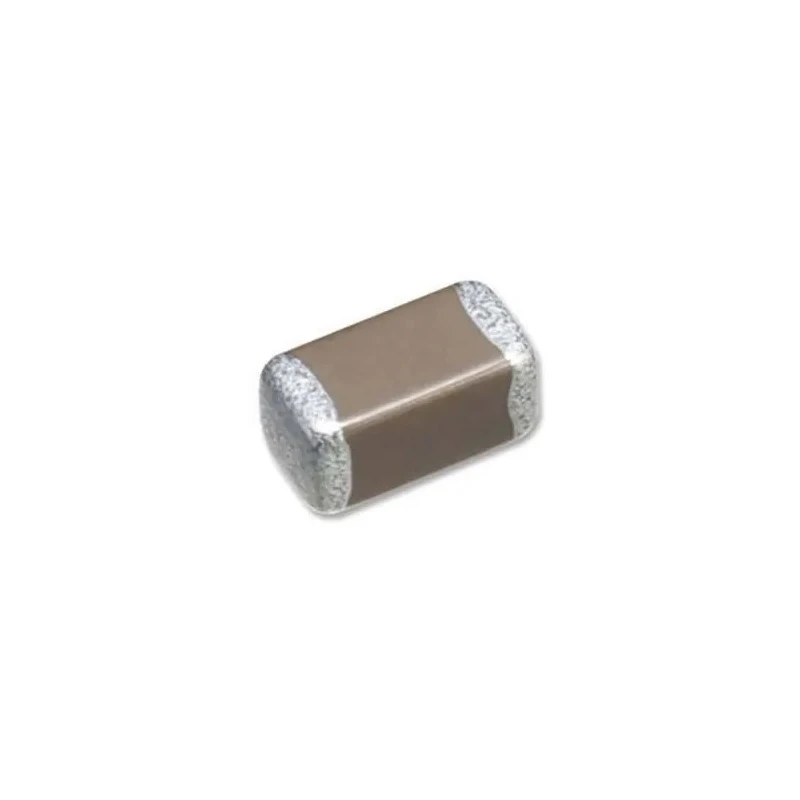

Yageo 100 nF Multilayer Ceramic Capacitor 100V DC ±10% Tolerance Surface Mount 0805 Package CC0805KKX7R0BB104

Yageo CC0805KKX7R0BB104 multilayer ceramic capacitor is a surface mount device designed for compact electronic circuits requiring 100 nF capacitance at 100V DC voltage rating. This 0805 size capacitor features a ceramic dielectric with interleaved metal electrodes that provide high capacitance in a small form factor.

The device construction includes lead-free plated tin (NiSn) terminations ensuring reliable soldering and environmental compliance. The dielectric type X7R ensures stable capacitance characteristics over a broad temperature range from -55°C up to 125°C, suitable for industrial and commercial applications.

This capacitor is supplied in tape and reel packaging optimized for high-volume pick-and-place assembly systems, facilitating efficient manufacturing processes.

Its standard termination type and surface mount design make it compatible with modern PCB layouts requiring space-saving components. The compact dimensions - 2mm length and 1.25mm height - enable its use in dense electronic assemblies.

High capacitance per unit volume enabling compact circuit design. 0805 rectangular block construction with lead-free plated tin terminations. Dielectric type X7R for stable performance across temperature range. Operating temperature range from -55°C to 125°C.

Tape and reel packaging suitable for automated assembly. Standard termination type with surface mount configuration. Complies with IEC-60384 and RoHS directives for quality and safety. Compact size with 2mm length and 1.25mm height dimensions.

This capacitor is ideal for use in consumer electronics, industrial control systems, automotive electronics, telecommunications, and power supplies due to its reliable performance and standardized packaging.
