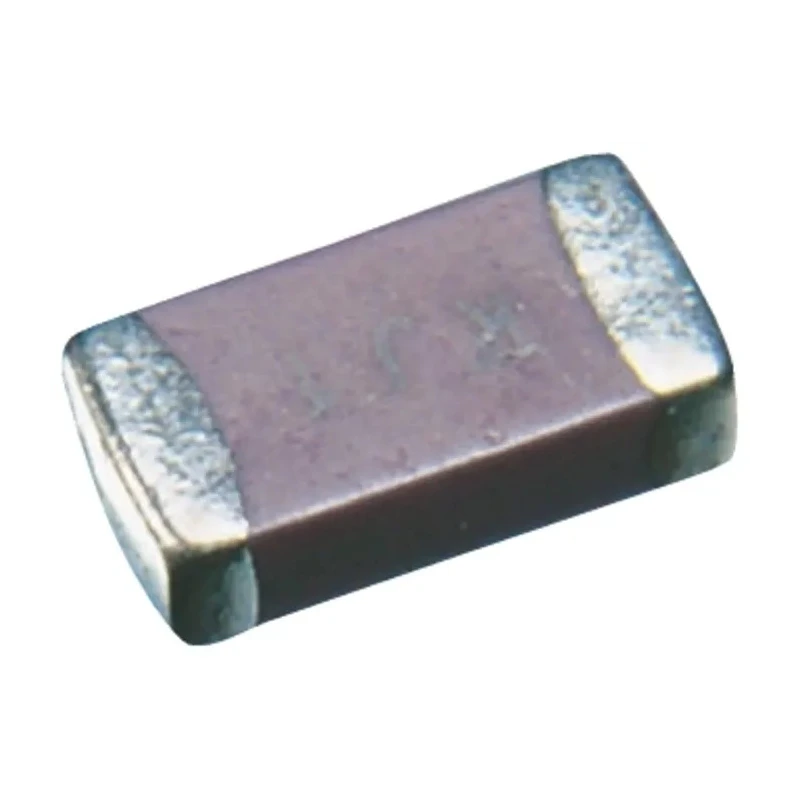

Yageo 1 nF Multilayer Ceramic Capacitor 2kV dc ±10% Surface Mount X7R Dielectric 1812 CC1812KKX7RDBB102

Yageo CC1812KKX7RDBB102 is a high-voltage, 1 nF multilayer ceramic capacitor designed for surface mount technology with a 2kV dc voltage rating and ±10% tolerance. It utilizes an X7R dielectric to maintain capacitance stability over a wide temperature range from -55°C to 125°C. The capacitor is housed in an industry-standard 1812 package measuring 4.5 mm in length, 3.2 mm in width, and 1.35 mm in height, making it suitable for compact electronic assemblies.

This capacitor features a stacked construction with surface mount terminations, optimized for automated placement on printed circuit boards. Its tape and reel packaging format supports efficient high-volume manufacturing. Compliance with IEC 60384-1, IEC 60384-21/22 standards and RoHS directives ensures reliable, environmentally safe usage.

Common applications include use in PCs, hard disk drives, gaming PCs, power supplies, LCD panels, ADSL modems, and other electronic circuits requiring stable high-voltage capacitors. The component's Class II suppression characteristic makes it ideal for managing noise and transient voltage in power electronic systems.

This product represents a standard series from Yageo's 1812 high-voltage NP0/X7R ceramic chip capacitors with lead-free terminations, combining high reliability and compact form factor with excellent electrical performance.

This capacitor features an X7R dielectric construction for stable performance. Its compact 1812 (4.5 x 3.2 x 1.35 mm) package suits high-density circuit board designs. Rated for a maximum operating temperature of 125°C and a minimum of -55°C for reliable operation under harsh conditions.

Packaged in tape and reel format suitable for automated assembly processes. Meets IEC 60384-1, IEC 60384-21/22 standards and RoHS compliance. Surface mount termination ensures excellent solderability and mechanical stability.

Class II suppression with a stacked construction enhances performance in power applications.

Ideal for industrial, computing, communication, and consumer electronic manufacturing applications. Discover more capacitors and electronic components in EnvMart's extensive catalog.
