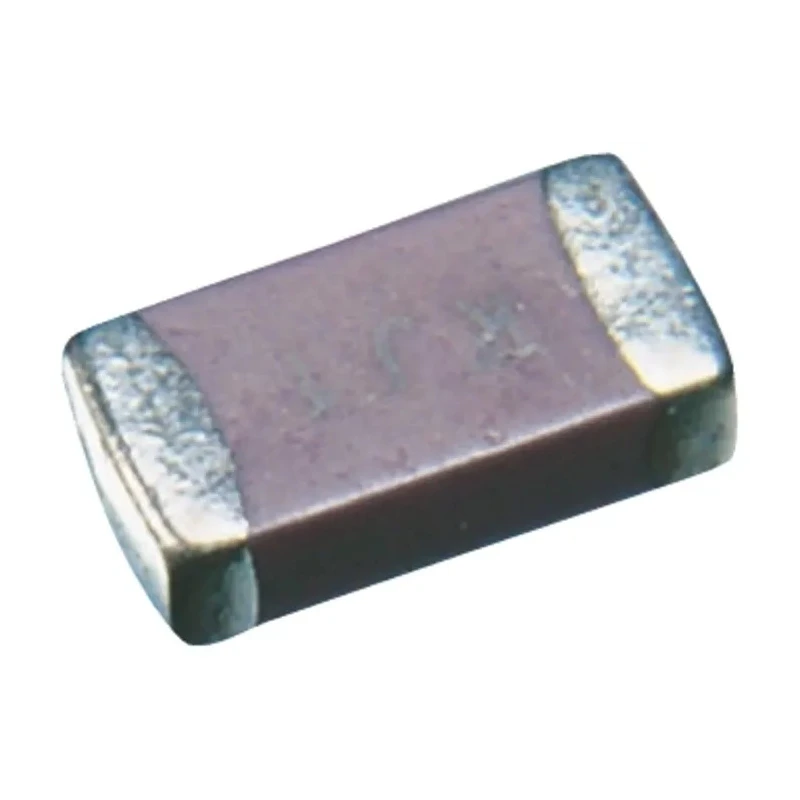

Yageo 1 nF Multilayer Ceramic Capacitor 1kV DC ±5% Tolerance Surface Mount 1812 Package CC1812JKNPOCBN102

Yageo CC1812JKNPOCBN102 is a high-quality 1 nF multilayer ceramic capacitor designed for surface mount applications. It features a voltage rating of 1 kV DC and offers a tight capacitance tolerance of ±5%, ensuring precision in electronic circuit designs.

Constructed with a C0G dielectric material, this capacitor provides excellent temperature stability and low losses, making it suitable for demanding industrial, laboratory, and commercial electronics applications where signal integrity is critical.

The capacitor comes in an 1812 package size (4.5 mm length × 3.2 mm width × 1.25 mm height), facilitating compact PCB layouts. Its stacked construction and lead-free surface mount terminations comply with RoHS directives, reinforcing its environmental compliance and safety standards (IEC 60384 series).

Typical applications include PCs, hard disk drives, power supplies, LCD panels, ADSL modems, and other communication devices. The product is supplied on tape and reel packaging to support automated placement processes, enhancing manufacturing efficiency.

This capacitor uses a C0G dielectric with excellent stability and low loss characteristics. It is designed with a surface mount 1812 package for compact PCB mounting. The product supports a maximum operating temperature of 125°C and operates from -55°C minimum.

Manufactured using a stacked construction ensuring reliable and consistent performance. Packaged on tape and reel to facilitate automatic assembly. RoHS compliant and meets IEC 60384-21/22, IEC 60384-1 standards. Ideal for use in PCs, power supplies, LCD panels, modems, and other high-frequency electronic circuits.

This Multilayer Ceramic Capacitor is suitable for electronic manufacturing, telecommunications equipment, instrumentation, HVAC controls, and general-purpose industrial electronics.
